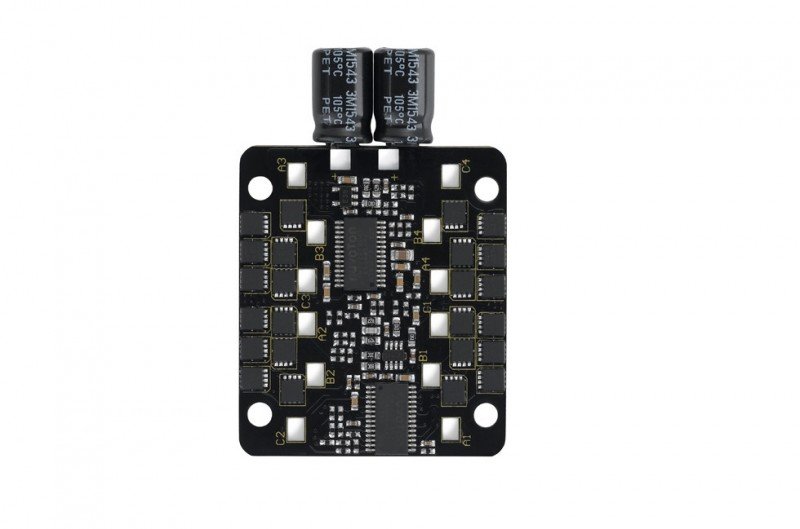

HOBBYWING XRotor 12A 4IN1 Micro - 30901041 Hobbywing好盈   [HW-30901041]

This XRotor 4IN1 Micro ESC not only includes 4 high-performance 20A ESCs,
1 integrated BEC, but additionally output ports for powering peripherals like FC, digital camera,
and a slot for FC checking present and voltage in real time. The very integrated
framework makes the installation and wiring simple and clean.

Rotation way of each and every engine is set via transmitter.
This saves the problem of re-soldering/re-connecting after connected/soldered motors to
the ESC freely and found motor runs in reverse.

The usage of powerful 32-bit supply processors
(aided by the running frequency all the way to 48MHz),
integrated drive ICs, imported quality MOSFETs,
3-ounce copper and 6 layers of PCBs guarantees less temperature,
higher efficiency and rapider response.

This Xrotor 20A 4IN1 Micro ESC not just supports
regular throttle signals (because of the frequency as high as 621Hz),
Oneshot125 (125-250μs) high-speed throttle signals
(aided by the real-time regularity as high as 3.8KHz),
and Oneshot42 (42-81μs) and Multishot (2-25μs) super
high rate throttle signals. All of this makes interaction
between FC and ESC more agile, throttle linearity smoother,
and throttle response rapider.

The DEO (Driving effectiveness Optimization) technology
implemented in ESC has multiple benefits:
● Active braking. When reducing the throttle amount, the motor will
decelerate very quickly. This particular feature enables pilots to quicker
perform all maneuvers like razor-sharp turns, altitude changes,
and sudden braking.
● Higher driving effectiveness, longer flight time.
● Lower ESC heat and an even more reliable procedure.

This XRotor 20A 4IN1 Micro ESC cuts off its production to motor immediately
with regards to detects the motor shaft is locked up.

The whole circuit board and all the elements on
it have gone through nano-coating treatment;
this will make the XRotor 20A 4in1 Micro ESC splash-proof.

• Cont./Peak active : 12A×4/18A×4
• LiPo Cells : 1-4S LiPo
• BEC Output : 5V,1A

• Output cables : solder tabs
• Input Connectors : No
• Output Connectors : No
• Firmware : HW Special Program for FPVs
• ESC Programming : Supported
• Stick Programming : Transmitter
• DEO : Supported
• Throttle number Calibration : Supported
• Oneshot125 Mode : Supported
• Oneshot42 Mode : Supported
• MultiShot Mode : Supported
• Timing : Not Supported
• Motor Rotation : Supported

• Size : 38.1x37.9x5.3mm
• Weight : 8g

• 150mm FPVs
