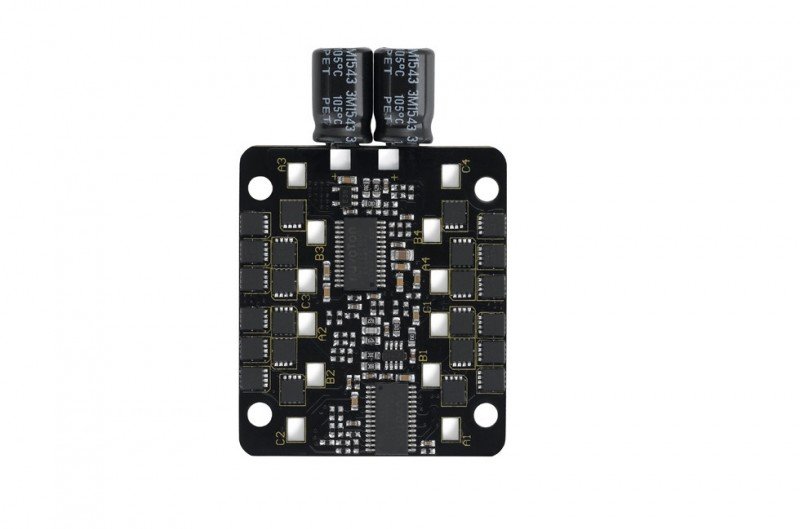

HOBBYWING Xrotor 20A 4IN1 Micro - 30901065 Hobbywing好盈  [HW-30901065]

This XRotor 4IN1 Micro ESC not merely includes 4 high-performance 20A ESCs,
1 built-in BEC, but also output ports for powering peripherals like FC, camera,
and a slot for FC checking current and voltage instantly. The highly integrated
structure makes the installation and wiring simple and clean.

Rotation direction of each engine is set via transmitter.
This saves the problem of re-soldering/re-connecting after connected/soldered motors to
the ESC freely and found motor runs backwards.

The use of high end 32-bit ARM processors
(utilizing the running regularity all the way to 48MHz),
built-in drive ICs, imported quality MOSFETs,
3-ounce copper and 6 layers of PCBs guarantees less temperature,
greater effectiveness and rapider reaction.

This Xrotor 20A 4IN1 Micro ESC not just supports
regular throttle signals (with the frequency as high as 621Hz),
Oneshot125 (125-250μs) high-speed throttle signals
(because of the real-time regularity all the way to 3.8KHz),
and Oneshot42 (42-81μs) and Multishot (2-25μs) super
high speed throttle signals. All of this makes communication
between FC and ESC more agile, throttle linearity smoother,
and throttle reaction rapider.

The DEO (Driving Efficiency Optimization) technology
implemented within the ESC has numerous advantages:
● Active braking. Whenever reducing the throttle quantity, the motor will
decelerate rapidly. This particular feature enables pilots to quicker
perform all maneuvers like sharp turns, altitude modifications,
and unexpected braking.
● Higher driving efficiency, longer flight time.
● Lower ESC heat and a far more reliable operation.

This XRotor 20A 4IN1 Micro ESC cuts down its output to motor straight away
when it detects the engine shaft is locked up.

The whole circuit board and all sorts of the elements on
it have gone through nano-coating therapy;
this will make the XRotor 20A 4in1 Micro ESC splash-proof.

• Cont./Peak Current : 20A×4/25A×4
• LiPo Cells : 3-4S LiPo
• BEC production : 5.3V/12V，3A

• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Firmware : HW Special Program for FPVs
• ESC Programming : Supported
• Stick Programming : Transmitter
• DEO : Supported
• Throttle Range Calibration : Supported
• Oneshot125 Mode : Supported
• Oneshot42 Mode : Supported
• MultiShot Mode : Supported
• Timing : Not Supported
• Motor Rotation : Supported

• Size : 54x36x7mm
• Weight : 24.5g

• 130-280mm FPVs
