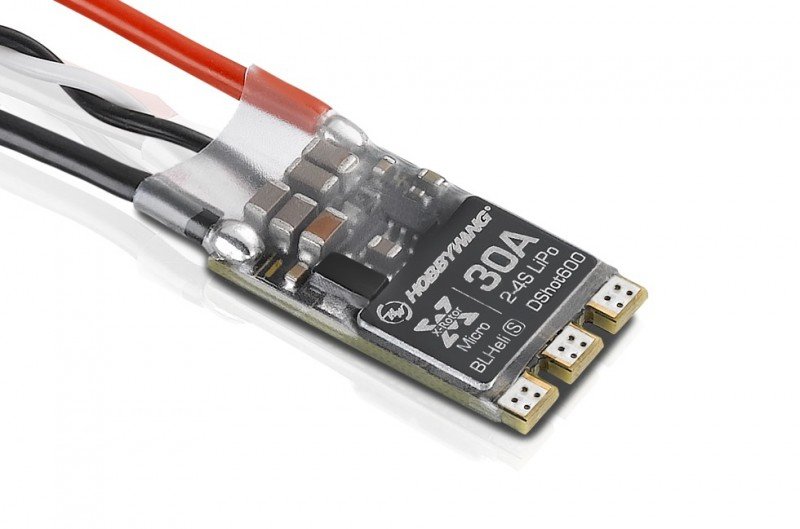

HOBBYWING XRotor Micro BLHeli-s 30A DShot600 - 30901075 Hobbywing好盈   [HW-30901075]

Besides the most recent Dshot 150/300/600 mode, the ESC additionally supports
regular PWM (1000µs -2000µs) mode, Oneshot125 (125-250µs) mode,
Oneshot42 (42-81µs) mode and Multishot (2-25µs) mode.

With the remarkably small size (23.8x14.5x5.8mm) and light weight (6g),
XRotor Micro BLHeli-s 30A DShot600 is an ESC especially made for competition FPV drone(s).

The use of EMF8BB21F16G MCU (utilizing the running frequency of up to 48MHz),
United states Fairchild MOSFETs, brought in 3-in-1 drive IC and quality ceramic
capacitors, 3-ounce copper and 4 layers of PCBs guarantees less temperature, greater
effectiveness and rapider reaction.

The ESC supports the original BLHeli-S firmware. Users can flash or update the firmware via the
sign cable (on ESC) and plan 4 ESCs at the same time after connecting their journey controller on
BLHeliSuite software (if the trip controller utilizes the CleanFlight or betaflight firmware).

The ESC firmware uses equipment generated motor pwm for smooth throttle response and
silent operation. Damped light does regenerative braking, causing very fast engine retardation,
plus it inherently additionally does active freewheeling.

The twisted-pair throttle signal cable efficiently decreases interference produced in signal
transmission and makes the journey more stable and reliable.

• Cont./Peak active : 30A/40A
• Input Voltage : 2-4S LiPo
• BEC output : No

• Input Wires : Red-18AWG-100mm*1 / Black-18AWG-100mm*1
• Output Wires : No wires but solder tabs
• Input Connectors : No
• Output Connectors : No
• Firmware : BLHeli-S A-H-50 16.5
• ESC Programming : Stick Programming, BLHeliSuite
• Stick Programming : Supported
• DEO : Supported
• Throttle number Calibration : Supported
• Oneshot125 Mode : Supported
• Oneshot42 Mode : Supported
• MultiShot Mode : Supported
• DShot150/300/600 : Supported
• Timing : Supported
• Motor Rotation : Supported

• Size : 23.8x14.5x5.8mm
• Weight : 6g

• 150-280mm FPVs
