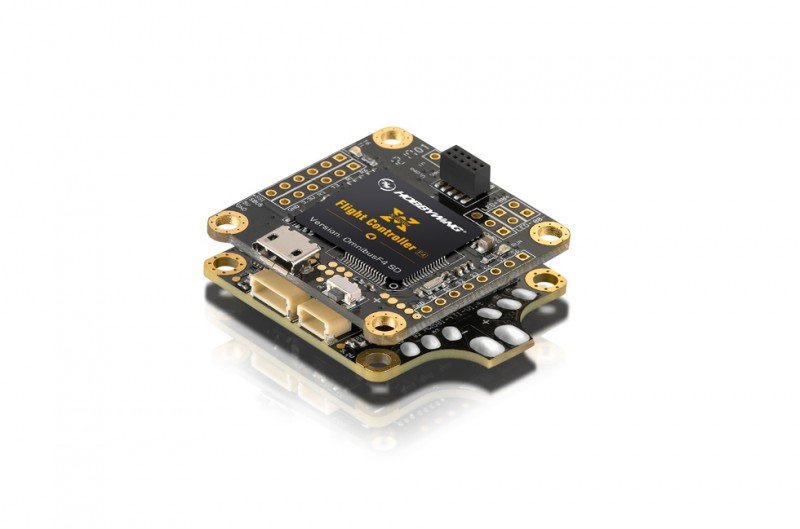

HOBBYWING XRotor Flight Controller F4 - 31001000 Hobbywing好盈   [HW-31001000]

The STM32F405 MCU which features the powerful computing ability and super-high
operating frequency permits the FC to run the PID and gyro with greater regularity.

Besides the latest Dshot 150/300/600/1200 mode, the FC
additionally supports the regular PWM mode, Oneshot125 mode,
Oneshot42 mode and Multishot mode.

A TF-card could be placed to the FC to record and save yourself more flight data,
which allows users to adjust their aircraft effortlessly.

Onboard OSD microchip permits users to
effortlessly adjust various (OSD) parameters via
the Betaflight/Cleanflight software.

The FC which supports Betaflight/Cleanflight firmware & enables parameter modification via Betaflight /Cleanflight computer software is more applicable to FPV flying & rushing.

It’s simple to wire and install whenever pairing the FC with a Hobbywing 4-in-1 tower ESC &
a HOBBYWING VTX (movie Transmitter).

• Compatible with (Multirotors) : Quadcopters, hexacopters
• Firmware : OMNIBUSF4SD
• FC Programming : Supported
• Programming via : Betaflight/Cleanflight-configurator
• Compatible with (Modes) : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Compatible with (Transmitters) : PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
• OSD : Built-in
• Voltage Monitoring : Supported
• Current Monitoring : Supported
• External Buzzer : Supported
• LED Control : Supported
• TF-card : Supported (Maximum: 32g)
• USB Port : MicroUSB

• Size : 35*35mm
• Weight : 6g
