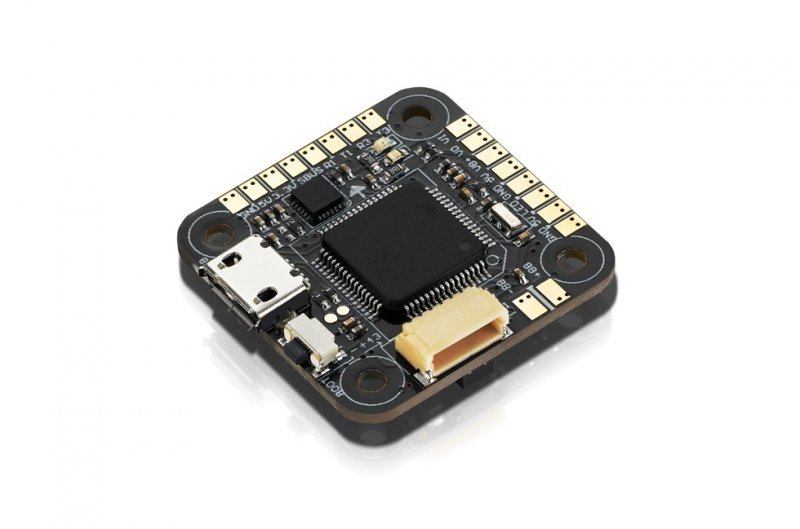

HOBBYWING XRotor Nano F4 Flight Controller - 31001001 Hobbywing好盈   [HW-31001001]

With the extremely small size, it could be installed on the
more mini-sized airframe (in other words. 130mm or below) as well as
features all the functions that regular FC for FPV(s) has.

Besides the standard PWM mode,
Oneshot125/Oneshot42/Multishot modes,
the newest DShot150/300/600 modes are
additionally supported.

The STM32F405 MCU which features the effective
computing capability and very fast working rate can
offer the PID controller with greater cyclic regularity &
the gyro with higher refresh rate.

The integrated BEC (5V/1.5A) can offer
energy for various gadgets;
the inner OSD permits users to modify
or set all OSD parameters through the
Betaflight/Cleanflight computer software effortlessly.

The journey controller supports the Betaflight/Cleanflight firmware and allows users
to modify or set different parameters through the Betaflight/Cleanflight software easily.
It’s more applicable towards FPV trip & racing.

When combining the Nano Flight Controller F4 because of the Hobbywing XRotor Nano 4in1 ESC,
the wiring & installation can be very easy and simple.

• Compatible with (Multirotors) : hexacopters
• Multi-rotor Type : Quadcopters
• FC Programming : Supported
• Programming via : Betaflight/Cleanflight-configurator
• Compatible with (Modes) : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,
  Dshot600, Dshot1200, Proshot1000
• Compatible with (Transmitters) : PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
• OSD : Built-in
• Voltage Monitoring : Supported
• Current Monitoring : Supported
• External Buzzer : Supported
• LED Control : Supported
• BEC : 5V @ 1.5A
• USB Port : MicroUSB

• Size : 27x27mm
• Weight : 3.3g
