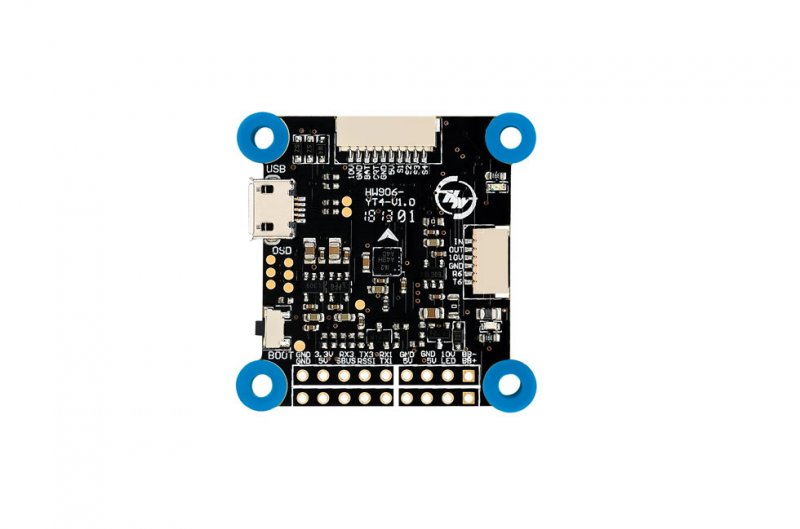

Powerful Hardware for Super Fast Operating SpeedThe STM32F405 MCU, which features powerful computing capability & super running rate,
combined with high-sensitivity ICM20602 6-axis motion sensor supports 32KHz PID controller &
gyro. The integrated OSD chip permits users to adjust or set OSD parameters via the
Betaflight/Cleanflight/Butterflight/invaflight computer software or transmitter easily. The interior TF-card
expansion slot enables users to place a SD card to record more trip information.
Revolutionary Shock-absorbing StructureThe Innovative connecting technique via a soft cable (*it works more effectively
when combining because of the XRotor Micro 45A 4in1 BLHeli_32 DShot1200)
with the shock-absorbing design of mounting holes
effectively reduces the effect on high-sensitivity FC elements
from outside surprise to help make every journey more stable and precise.
On-board Filter CircuitThe XRotor Micro-F4-G2, which integrates with a filter circuit
module (*it only functions when pairing because of the 10V BEC of the
XRotor Micro 45A 4in1 BLHeli_32 DShot1200), provides purer
powering condition for VTX to make pictures more clear and stable.
Multiple Throttle Signal
Modes SupportedBesides the most recent DShot 150/300/600/1200
high-speed electronic throttle signal modes and
Proshot1000 mixed throttle sign mode, the
Oneshot125/Oneshot42/Multishot and regular PWM
throttle sign modes may also be supported.
Several FPV Firmware SupportedThe XRotor Micro-F4-G2 not only supports numerous mainstream FPV firmware like BetaFlight, Cleanflight,
Butterflight and invaflight, but additionally enables users to modify or set parameters via the matching
pc software. All of this makes the unit more applicable to various FPV flights & racing.
Compatible(utilizing the Hobbywing 4IN1 ESC&VTX)It’s an easy task to wire and install whenever pairing the FC with a Hobbywing 4-in-1 tower ESC & a HOBBYWING VTX (Video Transmitter).
Product Specification
Basic Features- Compatible with (Multirotors) : Quadcopter
- Firmware : OMNIBUSF4SD
- FC Programming : Supported
- Programming via : Betaflight/Cleanflight-configurator or Others
- Compatible with (Modes) : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,
Dshot600, DShot1200, Proshot1000 and etc. - suitable for (Transmitters) : PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
- OSD : Built-in
- Voltage Monitoring : Supported
- Current Monitoring : Supported
- External Buzzer : Supported
- LED Control : Supported
- BEC : No
- USB Port : MicroUSB
Size & Weight- Size : 36*36mm
- Weight : 6g
