Principal features:

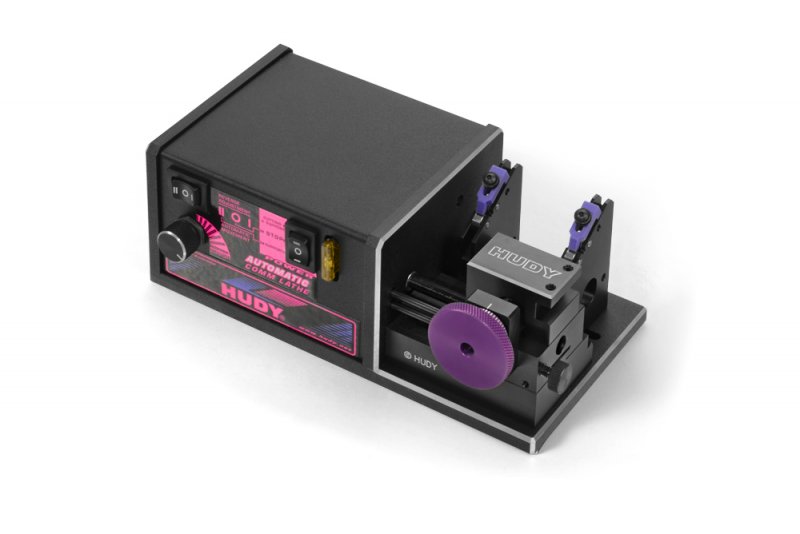

The earth's very first completely automatic comm lathe for slot car motors with a distinctive middle shaft gear drive system featuring ball-bearing guides
comm lathe for stock engines
black hard-anodized area
selected stands with ball-bearing guides (HUDY design) and plastic videos for armature
stands keyed to typical guides for an ideal positioning
revolutionary belt drive system which spins the armature through a middle shaft, and leads to vibration-free cut and main engine extended life
ultra-fine-pitch lead screws for super-accurate tool movement
super-accurate backlash limitation regarding the tool block and supports safe vibration-free motion
adjustable backstop screw with small purple wheel
managed rate for completely automatic cut
engraved unique ID
all accessories included
Included:
set up main engine with connection for a 12VDC power source
installed gearbox and electronics, switch, connection cable
fuse overload protection
glued anti-vibration pads remove all vibrations
handy travel case
drive belts
shims for tool height adjustment
engine anti-vibration washer
3 hex-wrenches for lathe adjustment
cutting device perhaps not included - #101081 Diamond Cutting Tool is advised
don't neglect to have a look at suggested choice parts
Hudy Comm Lathes have grown to be synonymous with the most higher level, high-tech comm lathes world-wide. What makes Hudy Comm Lathes superior is the philosophy found in their design, development, and ensure that you manufacturing phases.
Surface regarding the supports is treated to ensure smooth motion regarding the device block. It is possible to effortlessly and precisely adjust the movement associated with cutting device running wheel. Fasten or loosen the adjustment screw within the remaining side of this device head, which adjusts the strain on the plastic insert-pad, causing fine control of tightness of tool head movement.
Details:
This lathe is sold with ball-bearing guides, but it is also available with ultra-hardened steel "V" guides.
Do not know which sort to buy? Read the FAQ.
An excellent pitch thread is employed regarding feed screw; one graduation regarding the feed knob corresponds to a 0.01 mm movement associated with tool bit, all of this without backlash.
Accurate modification of stand placement.
Stands are manufactured in pairs to make certain 100% similarity, and tend to be both keyed into a common guide to make certain perfect alignment. Synthetic videos for armature are included as standard accessories.
Revolutionary armature axial help. Shaft spins between three ball bearings in Axial help - no vibrations at all!
#101900 Hudy Axial Support available as choice just. A "must have actually" selection for professional cutting.
