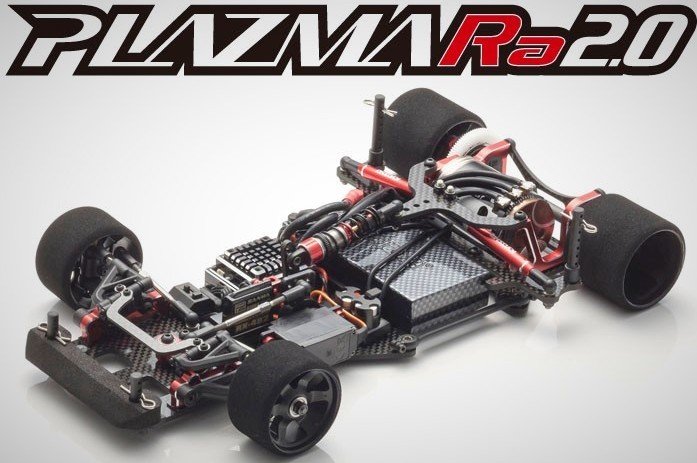

Kyosho 30423 - 1/12 PLAZMA Ra 2.0 KYOSHO京商平路車   [KY-30423]

1/12 Scale Electric Radio Control 2WD Racing Car PLAZMA Ra Series: PLAZMA Ra 2.0

Full of rushing tech developed at the highest degree!Drive the planet’s sophisticated production rushing machine!

A fresh race scene has evolved within the four years considering that the launch associated with the PLASMA Ra in December 2011. Now is the time for a fresh machine that embodies the sum of knowledge from constant sporting competition. With all the freedom to adjust to various conditions, such as free movement of center surprise place to regulate from high-grip surfaces to slippery circuits, while the choice of crank or direct steering systems, this brand new machine includes probably the most higher level design features. The material and design of each and every carbon and red anodized aluminum component was very carefully formulated to produce optimal power and weight stability. The 2-stage finishing procedure for the red anodized aluminum parts creates a sense of pride in possessing a machine with such an immaculate high-quality finish.

• Adaptable to all area types, complete performance potential is possible on various race circuits.
• Red anodized aluminum components with 2-stage finishing procedure gleam with top-quality engineering.
• New king-pin strut system on front suspension system. Slim and easy structure allows screw to be taken off exterior for easier maintenance. Alignment of camber, caster and tread are adjusted.
• Rear suspension system with center pivot and rear part website link retained for its superior control of roll and pitching faculties.
• Rear center shock with diaphragm keeps constant oil volume and combines with friction tube that completely settings roll way to create superior operating stability. Features accuracy machine cut POM (white plastic) shock piston and titanium coated spindle.
• Features worldwide standard size rear axle. Thrust bearing included produces smooth diff function and metric size (4mm) diff nut delivers improved versatility.
• Height are set by changing the axle mount.
• Grooves into the chassis prevent fiberglass tape regularly secure the battery from pressing the trail area. O-ring battery pack owner additionally makes battery modifications easy during practice runs.
• Center place for the motor delivers optimal left/right weight balance of back part. Design allows motor become moved 2.5mm towards the middle and so the hefty fat of engine and ball diff unit enables you to optimize fat stability.
• Crank steering system provides exemplary left/right balance. Optional steering plate enables free Ackerman setting. Crank product is supported by ball bearings on the top and bottom and certainly will be found in 3 different front-rear settings.
• 1/12 electric racing automobile includes the entire world’s sophisticated design technology.
• Interchangeable front suspension (except knuckle) realizes maintenance effectiveness.
• Suitable for dependable JR and Futaba mini servos for 1/12 course. *Sanwa may be used with optional component.
• Verified performance of coil springs set up on both front side and rear sides. A number of springs can be found.
• Includes largest worldwide standard size wheels (largest in its class).
• Uses metric (mm) size screws and nuts. *Only screws for back wheel and clamp hub (L) are inch size.
• Ball diff has plenty of capability with large diameter diff ring. Standard spur gear for DD vehicles can be used.

Kit Articles:

• Unassembled framework kit
• Decals
• Instruction manual

Necessary for Process :

• 2ch, 1 mini servo R/C system for automobiles
• Brushless motor (540 class)
• ESC (80A minimum recommended) for brushless motor
• 1 mobile (3.7V) Li-Po battery pack for 1/12 or 2 cell (7.4V) Li-Po battery for charger for framework
• Pinion gear (64 pitch 13-38T)
• Tires
• 1/12 rushing car human body
• Tools
• Paint for body
• Batteries for R/C system

Other Features:

• Big roll surprise features a revised roll piston and understands larger tread area and increased effectiveness of grease through machine cut lateral grooves.
• Tall durability 7075-grade engine mount changed from two reduced fixing points to top & reduced repairing points plus being thinned for lighter fat. Also, space developed involving the screws associated with motor mount and reduced pad reduces strain under contact from hits.
• Modification of spring tension could be made without getting rid of parts through a gap in reduced pad that allows a 2.0mm hex wrench access to a 2mm hexagonal groove inside side springtime owner.
• Stabilizer control is delivered through a carbon plate linking the left & right suspension system blocks.
• Urethane bumper included as standard. Body mount place moved 10mm towards leading to stop human body overhang.
• Roll point between main chassis and reduced pad relocated 2mm rearward to deliver sharper switching performance.
• Aluminum antenna holder secures antenna and center surprise stay securely. 6 center surprise positions are selected whenever used in combination with optional parts.
• Five ride height adjusters included: 0mm; 1.5mm; 2.5mm; 2.75mm, and 3.0mm. Most regularly utilized settings from 2.5mm to 3.0mm could be modified at 0.25mm increments. Nylon material delivers superior impact resistance.
• Big diameter wheels for the Ra 2.0 are the largest in its course. Made from soft nylon.
• Excess is symmetrically taken out of the framework leading to 20g lighter fat for pure race performance.
• Front upper arm redesigned to a universal interchangeable shape to be used on both front & backside, left & right sides, with less play. Lower suspension system arm redesigned for lighter weight and effective flex.
• Complete ball bearing specs (total 11). Crank additionally features two ball bearings.
• 92T spur gear included. Proven thrust bearing making use of 16 balls also included as standard.
• Engine mount fixing changed to top & lower securement with 0.25mm lower mount than the previous model. Created from high power 7075-grade aluminum.
• Chassis height may be adjusted with carbon spacer. Loosen the screw on bulkhead and push from behind to go ahead for without headaches framework height adjustment. Carbon spacers of various thicknesses are available as options.

Chassis Technical Data:

• Length: 281mm
• Width: (F/R) 164mm/166-170mm
• Height: 47mm
• Wheelbase: 200mm
• Tire(F/R): F41mm minimal / F41mm minimum
• Body weight: 730g approx. (JMRCA legislation)
• Motor: 540 class brushless engine (sold individually)
