Kyosho 30568R - 1/27 R/C EP TOURING CAR MINI-Z AWD MA-010 - ALFA BRERA - RED KYOSHO京商車套裝  [30568R]

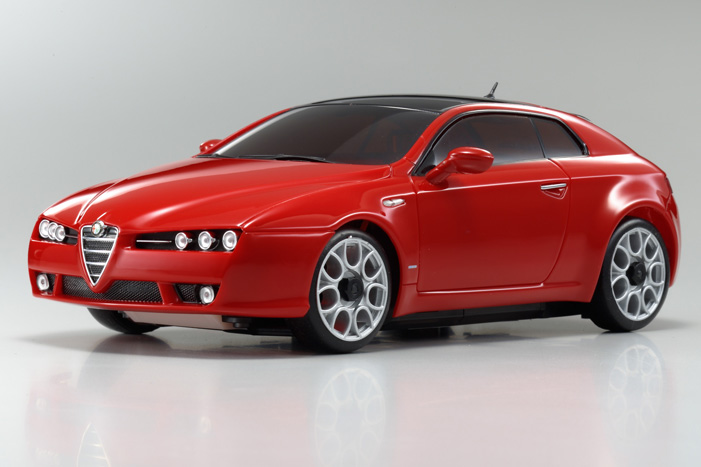

Kyosho 30568R - 1/27 R/C EP TOURING CAR MINI-Z AWD MA-010 - ALFA BRERA - RED
價格:
HKD$1,533.10
牌子:
Kyosho
型號:
30568R
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - On-Road - Mini-Z
類別中嘗試尋找類似的產品
填寫評論
alt="Kyosho 30568R - 1/27 R/C EP TOURING CAR MINI-Z AWD MA-010 - ALFA BRERA - RED" title="Kyosho 30568R - 1/27 R/C EP TOURING CAR MINI-Z AWD MA-010 - ALFA BRERA - RED"
alt="Kyosho 30568R - 1/27 R/C EP TOURING CAR MINI-Z AWD MA-010 - ALFA BRERA - RED" title="Kyosho 30568R - 1/27 R/C EP TOURING CAR MINI-Z AWD MA-010 - ALFA BRERA - RED"
alt="Kyosho 30568R - 1/27 R/C EP TOURING CAR MINI-Z AWD MA-010 - ALFA BRERA - RED" title="Kyosho 30568R - 1/27 R/C EP TOURING CAR MINI-Z AWD MA-010 - ALFA BRERA - RED"
alt="Kyosho 30568R - 1/27 R/C EP TOURING CAR MINI-Z AWD MA-010 - ALFA BRERA - RED" title="Kyosho 30568R - 1/27 R/C EP TOURING CAR MINI-Z AWD MA-010 - ALFA BRERA - RED"
alt="Kyosho 30568R - 1/27 R/C EP TOURING CAR MINI-Z AWD MA-010 - ALFA BRERA - RED" title="Kyosho 30568R - 1/27 R/C EP TOURING CAR MINI-Z AWD MA-010 - ALFA BRERA - RED"
alt="Kyosho 30568R - 1/27 R/C EP TOURING CAR MINI-Z AWD MA-010 - ALFA BRERA - RED" title="Kyosho 30568R - 1/27 R/C EP TOURING CAR MINI-Z AWD MA-010 - ALFA BRERA - RED"
alt="Kyosho 30568R - 1/27 R/C EP TOURING CAR MINI-Z AWD MA-010 - ALFA BRERA - RED" title="Kyosho 30568R - 1/27 R/C EP TOURING CAR MINI-Z AWD MA-010 - ALFA BRERA - RED"

Advanced technology and gratification condensed into Mini-Z size.
AWD and 4-wheel separate suspension begin a fresh stage in Mini-Z history!

The urge for Kyosho to replicate the exact same powerful and design of a real AWD (all-wheel-drive) in Mini-Z size was way too much to resist. The advanced design combines a shaft driven AWD with a precision 4-wheel separate suspension using a king-pin and strut system in an ultra-compact chassis. The addition of newly created front side and back differential units utilizing crown and pinion gears produces high effectiveness drive performance with comparable lower levels of opposition towards current 2WD variation. Also, the addition regarding the AWD drive train scarcely increases the weight for the framework anyway, enabling the advantages of AWD become recognized without the disadvantage. The last result is a strong framework with awesome management. The narrow 65mm width of framework also matches an array of the exquisite automobile figures your Mini-Z is famous for. The design also allows for individualized environment corrections particularly easy toe angle changes with optional components. This AWD framework introduces an entirely new dimension on high-tech realm of micro racing.

  • Mid-ship motor mount regarding shaft driven AWD produces perfect driving traits.
  • King-pin strut system on 4-wheel separate suspension understands higher level running performance.
  • Fully assembled chassis includes pre-installed RA-12 receiver product with integrated ESC.
  • Precision universal swing shafts are fitted on all axles. Produces uninhibited suspension movement and transfer of drive power.
  • 3-bevel differential drives all four tires and utilizes a crown and pinion with specifically created gear teeth.
  • Advanced accuracy technology happens to be used to provide the ultra-reliable differential product.
  • One-touch tie-rods can be simply connected or removed. Optional tie-rods enables you to adjust front and back toe angle settings.

  • Completed human body, finished with painting and affixed with decals.
  • Resin-coated steel core for the universal move shafts create strong and dependable drive energy.
  • Designed with 4 accuracy ball bearings for high-efficiency performance.
  • Includes four pinions and three spur gears for a wide range of gear ratio settings.
  • Chassis height modification collars allow framework to be dropped down low.
  • Front end features bump stop that regulates stroke and stops tire experience of the body.
  • High-accuracy 1/100mm finish.
  • Differential device is removed with only four screws on front side and six on back.
  • Features the controlled drift of a true AWD device.
  • Just 5g thicker versus MR-02 framework, regardless of the AWD and separate suspension.
  • Makes use of the narrowest 65mm chassis design so the Mini-Z 01 / 015 human body designs may be used.
  • Can be easily converted to the Mini-Z Racer M and L size to match your existing Mini-Z body. (Some body styles may possibly not be appropriate).

Chassis Technical data
Size
131.5mm
Width
65~70mm
Height
43mm
Ground Approval
4mm
Wheelbase
90mm(M), 94mm(L)
Tread (F/R)
56.5~59.5mm / 54.0~59.5mm
Tire(F/R)
Φ25x8.5mm / Φ25x8.5mm or 11mm
Gear Ratio
7.2/6.4/6.0/5.7/5.3/5.0/4.5 : 1
Weight
135g (approx.)
Engine
130-Class
