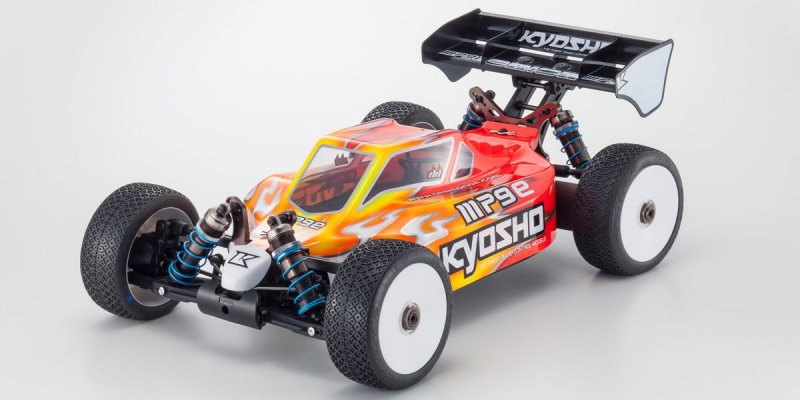

Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD KYOSHO京商越野車   [KY30898]

Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD
價格:
HKD$6,344.53
牌子:
Kyosho
型號:
KY30898
GTIN:
4548565315512
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - Off-Road - Buggy - Electric Powered
類別中嘗試尋找類似的產品
填寫評論
alt="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD" title="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD"
alt="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD" title="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD"
alt="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD" title="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD"
alt="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD" title="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD"
alt="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD" title="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD"
alt="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD" title="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD"
alt="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD" title="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD"
alt="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD" title="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD"
alt="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD" title="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD"
alt="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD" title="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD"
alt="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD" title="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD"
alt="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD" title="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD"
alt="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD" title="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD"
alt="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD" title="Kyosho 30898 - 1/8 INFERNO MP9e TKI4 Kit EP 4WD"

With an extraordinary TQ in qualifying and a 2nd finish at the IFMAR 1/8 scale engine off road globe championship in Las Vegas in October 2016, the INFERNO MP9 TKI4 shown to everyone else exactly how quick it is. Using its formidable controlled speed, the electric powered MP9e TKI4 inherits the INFERNO’s flat controllability, superior airborne position and great agility through optimal mass concentration and reduced center of gravity. Provided elements from the brand new MP9 TKI4 design such as much longer front sus arms, front sus holder, front surprise stay, back wing and wing remain also understand increased compatibility on low to high grip areas to meet the patient demands of each driver. This design improvement not merely provides enhanced running performance but also the fundamental elements for rushing success by means of a total revision for improved upkeep effectiveness and greater durability. Designed and designed with a sole focus on racing to win, the pure racing requirements associated with the MP9e TKI4 will put you on the path to glory!

●Minor change model incorporates parts from INFERNO MP9 TK14.
●4WD with 3-diff shaft drive and 4-wheel separate double wishbone suspension contributes to low C of G.
●Aluminum knuckles optimize akerman for smoother cornering.
●Thicker ball end on steering tie pole increases durability.
●Revised design of mounting pin the oil shock supply allows safer installation and improves durability.
●Revised design of catch stops harm to the surprise shoes.
●Features heavy-duty universal shafts on front & rear drive shafts and center shaft.
●Dirt guards on back sus supply protect the drive system.
●Equipped with popular forward cabin kind human anatomy.
●Full ball bearing specs.
●Compatible with many INFERNO MP9 TKI4 optional components.



With front part and back wing elements from MP9 TKI4, wider range for establishing options enable motorists to adapt the machine for their specific needs.

Newly designed surprise stay and top sus owner raises leading top rod height by 2mm for optimal camber during chassis roll.

Hard plating associated with Big Bore shocks resist external harm and feature a particular low-friction surface treatment which allows the f1.5×5 holed pistons to realize smooth movement and performance over surface gaps.

Improved surface tracing and cornering are realized through 2mm longer front suspension hands with extra ribs for reinforcement.

Aluminum knuckle arms understand optimal ackermann through a fresh tie rod position that minimizes the bump steer through the long sus stroke of 1/8 buggies.

Reinforced servo saver plays a part in improved straight line stability and direct steering feel.

Two extra vertical fins deliver increased stability over jumps. Flaps (2 kinds) can be mounted on increase rear grip.

New wing stay shape minimizes deformation or damage of the wing. Back traction settings are changed by adjusted the position for the wing: forward/backward, height and angle.

Precision 2-piece motor mount realizes superior heat dissipation and allows easy adjustment of backlash or replacement of engine by loosening two screws.

TECHNICAL DATA

  • Length
  • 490mm
  • Width
  • 307mm
  • Height
  • 180mm
  • Wheelbase
  • 325mm (Wheelbase is modified by changing the trunk hub collars.)
  • Tread (F/R)
  • 254mm
  • Tire(F/R)
  • offered separately
  • Gear Ratio
  • 12.7:1
  • body weight
  • 3,370g approx.


KIT CONTENT
Unassembled chassis kit
Clear human body
Decals
Silicon oil for diff(#3000?#5000)
Tools(1.5mm?2.0mm?2.5mm?3.0mm)
L-type hexagonal wrench
Cross wrench (small)
17mm wheel wrench


REQUIREMENT TO RUN
2ch 1 servo R/C system
Batteries for R/C system
Brushless engine
ESC for brushless motor
2 batteries for chassis
Battery charger
Tires
Wheels
Tire inners
Tools
Instant glue
Silicon oil for shocks
Paint for coloring human body
