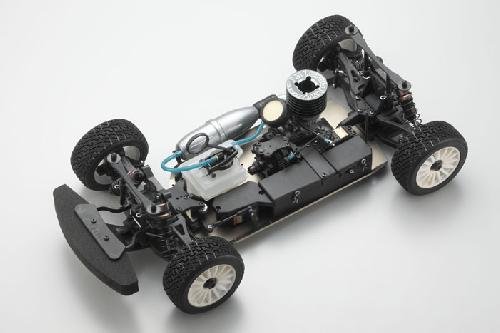

Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012
價格:
HKD$0.00
牌子:
Kyosho
型號:
31049
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - Off-Road - Rally - Nitro Powered
類別中嘗試尋找類似的產品
填寫評論
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"
alt="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012" title="Kyosho 31049 - 1/9 4WD Rally DRX Chassis Kit KYOSHO CUP EDITION 2012"

2-Speed A/T installed! Set your places on Kyosho Trophy!
Limited release framework kit for drivers looking for additional speed!

The agile and effective drive that the DRX rally machine demonstrates across all area kinds is turbo faced with the newest Kyosho Trophy version. Standard features now integrate 2-speed A/T mission, tough R246 7075T4 primary framework, previously optional upgrade shock springs, front/rear stabilizers. Also, this kit comes packed without tires (includes wheels) to help you select hold definite every single battle. Along with it's versatile maneuvering together with dynamic performance of a rally machine, this model is completely equipped for sporting battle while staying with practical scale measurements. Fingertip drift control simply leaves you awaiting the noise of tire squeal utilizing the sense of realism that Kyosho rally devices are well-known for. Include your selection of body while making a fee for the Kyosho Trophy!

  • Chassis kit is packed without human anatomy and tires so you can choose your preferred options.
  • Features lightweight GXR18 motor (without recoil starter) with SP motor head.
  • Utilizes similar split clutch framework as rushing buggies to deliver superior throttle reaction.
  • Loaded with φ2.4 stabilizers on front side and rear.
  • Downward facing manifold and muffler achieves horizontal positioning and low center of gravity.
  • No requirement for holes in the torso that spoil the scale feel utilizing the downward facing muffler exit.
  • Lightweight on-road model air cleaner is easy to determine when maintenance and cleaning is needed.
  • Large capacity oil shocks with chassis height modification function are included as standard.
  • Dirt resistant radio field are completely removed with only four screws for easy upkeep.
  • 103cc gas tank delivers run times of significantly more than ten full minutes.
  • Racing specifications include a transponder stay and an instant opening gas tank cap.
  • Setting options are for sale to chassis height, camber and tread, and front side and rear toe angle.
  • Very long wheelbase chassis with 3-differential full-time 4WD realizes low center of gravity and exceptional suspension for great operating performance on any type of area.
  • Completely interchangeable suspension arms and front side and back interchangeable knuckles realize economical and efficient parts upkeep.
  • Knuckle design features stone guards that counter dirt and stones getting inside and securing the tires up unexpectedly.
  • Optimal rigidity and strength is achieved through included R246 7075T4 primary framework (a popular optional upgrade part).

<Optional components contained in the DRX Kyosho Trophy Edition>

No.TRW155-6514 Spring φ1.4 x 6.5
No.TRW153 Stabilizer φ2.4
No.TRW158 2-Speed Automatic Transmission
No.74017-07 SP Engine Head
No.74016-14 Straight Back Plate
No.92023 Air Cleaner
No.R246-3010R246 Principal Chassis for DRX

< Kit Contents >

  • Chassis kit
  • Limited specification GXR18 engine
  • Scale wheels
  • Servo horns suitable for array of R/C systems
  • Hex wrench 4-types (1.5, 2.0, 2.5, 5.0mm)
  • Cross wrench


< needed for Operation >

  • Body
  • 2-channel, 2-servo (minimum) R/C system
  • Tires
  • Fuel
  • Starting tools
  • Paint for body
  • Batteries for R/C system
Chassis Technical Data
Size
563mm
Width
260mm
Height
175mm
Wheelbase
316mm
Tread (F/R)
215mm / 215mm
Tire(F/R)
93 x 38mm / 93 x 38mm (sold individually)
Gear Ratio
8.86:1
Fat
2,200g (approx.) (only framework
Engine
GXR18 limited specification
