Kyosho 32171 - MA-020VE PRO SP Chassis Set KYOSHO京商MINI-Z車套裝  [KY32171]

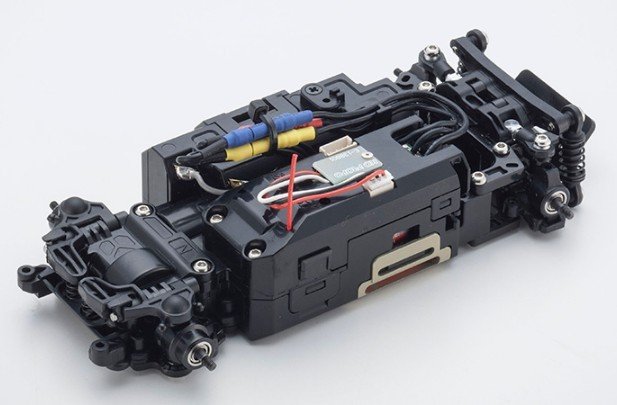

Kyosho 32171 - MA-020VE PRO SP Chassis Set
價格:
HKD$2,191.48
牌子:
Kyosho
型號:
KY32171
GTIN:
4548565312207
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - On-Road - Mini-Z
類別中嘗試尋找類似的產品
填寫評論
alt="Kyosho 32171 - MA-020VE PRO SP Chassis Set" title="Kyosho 32171 - MA-020VE PRO SP Chassis Set"
alt="Kyosho 32171 - MA-020VE PRO SP Chassis Set" title="Kyosho 32171 - MA-020VE PRO SP Chassis Set"
alt="Kyosho 32171 - MA-020VE PRO SP Chassis Set" title="Kyosho 32171 - MA-020VE PRO SP Chassis Set"
alt="Kyosho 32171 - MA-020VE PRO SP Chassis Set" title="Kyosho 32171 - MA-020VE PRO SP Chassis Set"
alt="Kyosho 32171 - MA-020VE PRO SP Chassis Set" title="Kyosho 32171 - MA-020VE PRO SP Chassis Set"
alt="Kyosho 32171 - MA-020VE PRO SP Chassis Set" title="Kyosho 32171 - MA-020VE PRO SP Chassis Set"

Packed with the dynamic mixture of MHS (MINI-Z Hybrid Spread Spectrum) and Xspeed VE brushless motor, the MA-020VE PRO released in November 2015 relaunches as an SP framework set such as the formerly optional engine cooling system to be the quickest MINI-Z ever. Loaded with the same lightning fast 8500KV Xspeed VE brushless motor energy source once the MA-020VE professional, the SP Chassis Set can be equipped with an aluminum engine sleeve and engine cover to control heat and extract every drop of power from the brushless engine. The engine sleeve and motor cover are anodized into the premium "SP" color, although the ordinarily grey main chassis is anodized in intimidating black. Also, in what has become a must-have race item, the SP framework set includes a gyro device set as standard. Packed with superior optional components, the MA-020VE professional SP Chassis Set is a base chassis built prepared for rushing battle. As with the MA-020VE PRO, the SP Chassis Set works with current ASF2.4GHz systems. As transmitter setting is immediately done when pairing, KT-18 and KO PROPO EX-1 transmitters could also be used.

  • MA-020VE professional features brushless engine with formerly optional cooling system.
  • SP chassis specs are identifiable aided by the special red anodized engine sleeve and hard anodized motor cover.
  • Main framework is finished in solid black colored.
  • Includes optional gyro unit set as standard.
  • Nickel plated hex screws are used on all main parts.
  • Features the MHS2.4GHz system using the fastest response rate in MINI-Z history.
  • Compatible with ASF2.4GHz systems. *Transmitter is sold individually.
  • Incorporates the "VCS" front side suspension system through the MR-03.
  • Double wishbone suspension (DWS) equipped on rear.
  • Full ball bearing specifications consist of a complete of 14 accuracy ball bearings.
  • Equipped with wide rear suspension arms.

  • TECHNICAL DATA

  • Length: 126mm
  • Width: 65mm
  • Height: 28.5mm
  • Wheelbase: 90.0mm(M)-98.0mm(LL)
  • Tread (F/R): 65-76mm / 65-76mm
  • Tire(F/R): 25.0x8.5mm / 25.0x11mm(offered individually)
  • Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5 : 1
  • Weight: 135g (approx.)
  • Engine: 8500KV Xspeed VE Brushless

  • KIT CONTENTS

  • Pre-assembled chassis set up with R/C product
  • Parts for front tread adjustment
  • Parts for wheelbase modification
  • components for changing to rear long suspension arms
  • Pinion gears: 15T17T19T21T
  • Spur gears: 27T, 29T, 31T each for MLLL
  • Pinion gear tools
  • free peanuts
  • Wheel wrench


    NEEDED FOR PROCEDURE

  • ASF2.4GHz KT-18 transmitter or MHS2.4GHz EX-6 transmitter
  • *Requires a transmitter suitable for the Mini-Z HYBRID SPREAD SYSTEM (MHS)
  • Auto Scale Collection (human body, tires, tires)
  • 4 x AAA size alkaline or Ni-MH batteries for chassis
  • 4 x AAA size batteries for transmitter
