The separable receiver design pioneered on the MR-03EVO is now available using the new AWD model MA-030EVO, on the basis of the FWD MA-03F chassis. The MINI-Z had been initially designed with an integrated receiver, servo and speed controller, however in the MR-030EVO the receiver ended up being made to be bought and set up as a different unit to allow the model to be used with other makes of transmitter like KYOSHO (KT18/EX-6/EX-6R/KT-531P/KT-432PT), KO (EX-2/EX-RR), Futaba (T7PX/T7XC/T4PM), Flysky (Noble NB4). Besides, the best AWD show spec MA-020VE PRO included a 3-stage steering servo product, however the brand new MA-030EVO includes the even greater spec 5-stage gear kind from the MR-03. Additionally, a special Central Processing Unit for servo control improves the control speed of positioning feedback and updated control system provides the greatest steering feel of any AWD model through enhanced responsiveness and linear reaction to driver control. The one-piece heatsink and aluminum instance regarding the KYOSHO SPEED HOME XSPEED 85 (8500KV) brushless motor keeps it cool for maximised performance. The I.C.S. manager enables accuracy environment modifications plus the switch to a brushed engine, which was difficult with previous chassis sets. Switch between drift and grip driving styles to see the ultimate in AWD driving performance.
MA-030 AWD chassis is founded on MINI-Z FWD MA-03F chassis.Chassis set includes separate ESC and receiver unit.Includes KYOSHO SPEED HOUSE 85 brushless engine (KV8500).I.C.S manager allows accurate environment control and make use of of either brushless or brushed motor.Independent CPU control with an increase of processing speed delivers a lot more exact control.Full ball bearing requirements decreases drive loss.Includes rear dual wishbone suspension.Compatible with L（94mm） and LL（98mm） wheelbases. Only LL（98mm） can be utilized with back double wishbone suspension system set. Appropriate for MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set the various MR-03F framework models
TECHNICAL INFORMATION
*Scale: 1/27.6
*Length: 126.0mm
*Width: 65.0 - 76.0mm (adjustable by wheel offset)
*Height: 36.0mm
*Chassis Type: MA-030
*Wheelbase: 94.0mm (only with strut rear suspension set up), 98.0mm (factory assembled)
*Weight: 135g
*Brushless 8500KV
*Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5:1
*Tire Diameter (F/R): offered individually
*Tire Width (F): sold individually
*Tire Width (R): offered individually
*Transmitter: Not included
*Top rate: approx. 17km/h
*Runtime: approx. 50min.
KIT CONTENTS
CHASSIS SET ARTICLES

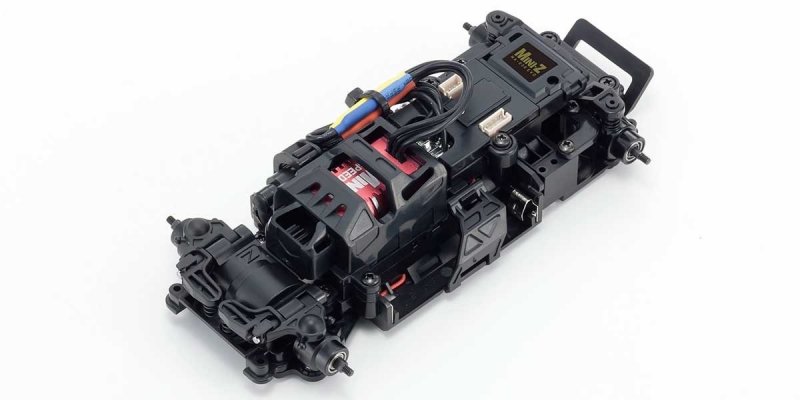

*Factory-assembled chassis equipped with EVO primary device installed
*Pinion Gears (15T, 17T, 19T, 21T)
*DWS transformation parts *Front tread conversion components
*Pinion gear reduction tool
*Spare wheel peanuts
*Wheel wrench
*Center shaft for L wheelbase
*Wide back suspension arms for DWS
*swing shafts (4 x long)
*Spur gears (27T, 29T, 31T)
NECESSARY FOR OPERATION
REQUIRED FOR OPERATION
*8 x AAA batteries
*Auto Scale Collection (body, wheels and tires)
*Transmitter
*MINI-Z EVO receiver device compatible with the transmitter used
