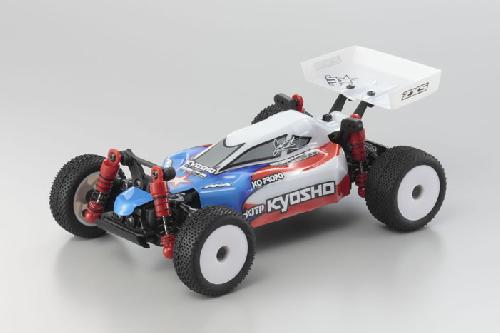

Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body KYOSHO京商MINI-Z車套裝  [KY32282BCJT]

Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body
價格:
HKD$1,119.86
牌子:
Kyosho
型號:
KY32282BCJT
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - On-Road - Mini-Z
類別中嘗試尋找類似的產品
填寫評論
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"

Jared Tebo colored human body captures the character of off-road race!
Dynamic buggy performance, on the palm of the hand!

Advanced design options that come with the MINI-Z buggy consist of a drive train with 2-differential shaft-drive 4WD and slipper clutch to safeguard the gears, plus 4-wheel separate double-wishbone suspension equipped with oil shocks that exceed all performance expectations from its compact size. The world-class performance regarding the 1/10 size LAZER ZX-5 FS was focused into a palmtop size dynamo loaded with human body printed with all the stars & stripes design of America's world famous buggy racer, Jared Tebo. Many accuracy components are protected inside the shell framework associated with the framework that keeps out dirt and offers optimal rigidity. Also included may be the circuit board through the MINI-Z MR-03, particularly tuned for off-road buggy performance. The framework can be fitted with gyro (optional) and it is built with Chase Mode (minimum 3channel transmitter required) and ICS connectivity. 7-stage gear-type steering servo provides torque and precise reaction to deliver the MINI-Z prominent linear steering feel and control. Only some actions are expected to start racing and revel in the aggressive driving performance of the MINI-Z in Jared Tebo's dynamic colors.

  • Shaft drive 4WD and 4-wheel independent suspension, in MINI-Z lightweight size. Power over gaps and steps without a second thought.(photograph is a No.32282BCRG LAZER ZX-5 FS)
  • Oil shocks on 4-wheel separate double-wishbone suspension system supports high performance with superior road keeping.(photograph is a No.32282BCRG LAZER ZX-5 FS)
  • Regardless of the constraints of its size, the integrated coupling regarding the drive shafts etc. understand a 10-degree skid angle for increased operating performance.
  • Shell framework of framework with battery pack bins for each part (2 cells in each) provides high rigidity to draw out 100percent effectiveness from the suspension system.
  • Each component within the flat-bottomed chassis is made for maintenance efficiency. As an example tie-rods can be changed by the removal of the chassis address.
  • Dirt-proof framework such as the sealed gearbox protects critical components to run confidence on any area. Specifications consist of slipper clutch and 15 ball bearings.
  • I.C.S. function permits accuracy environment of ESC drive regularity, digital inertia and steering faculties through a PC connection.
  • Features area for optional gyro become mounted. Detects alterations in operating posture to automatically proper steering and throttle for lots more stable control.

  • Fully pre-assembled framework with printed polycarbonate body detailed with markings.
  • Real race performance to please buggy owners. Great for practice inside.
  • ASF2.4GHz system requires no musical organization allocation. Solitary transmitter can be utilized along with your 2nd as well as 3rd model.
  • Requires no frequency crystals and allows up to 40 vehicles become run simultaneously.
  • Ultra quick signal processing realizes sharp control reaction.
  • Filled with standard setup at time of delivery. Chase Mode could be activated with a single button. Other settings could be adjusted through a PC with the I.C.S. USB adapter (sold separately).
  • Loaded with LED power degree indicator.
  • Selection of optional components are in the pipeline for release.

< Kit Contents >

  • Factory assembled chassis with pre-installed R/C device
  • Pre-painted polycarbonate body complete with markings
  • Pinion Gear x 3 (11T, 13T, 15T)
  • Spur Gear x 2 (33T, 35T)
  • Pinion tool
  • Pairing stick
  • Wheel wrench
  • Spare wheel peanuts

< Required for Operation >

  • 3-channel transmitter for MINI-Z suitable for ASF 2.4GHz or Perfex KT-18 transmitter (or even utilising the Chase mode)
  • AAA-size alkaline batteries x 4 or NiMH batteries x 4 for chassis.
  • Batteries for transmitter
  • (OPTION) I.C.S. USB adapter (No.82080) for using I.C.S. functions and Chase Mode modification.

< NOTE >

  • Overtake function may assist R246 2.4GHz module adapter but is perhaps not guaranteed in full with transmitters besides Kyosho or KO 3-channel transmitters.
  • 2-channel KT-18 transmitter can be utilized but cannot run the Chase Mode.

Chassis Technical Information
Length
167mm
Width
106mm
Height
63mm
Wheelbase
115mm
Tread (F/R)
F:89/R:89
Tire(F/R)
F:O37x13.5mm / R:O37x18.5mm
Fat
200g(approx.)
Engine
130-Class
Battery
AAA-size alkaline x 4
R/C System
KT-18(sold separately)
