Kyosho 32617WR - MINI-Z AWD SUBARU IMPREZA WRC 2002 富士掃把佬 KYOSHO京商車套裝  [KY-32617WR]

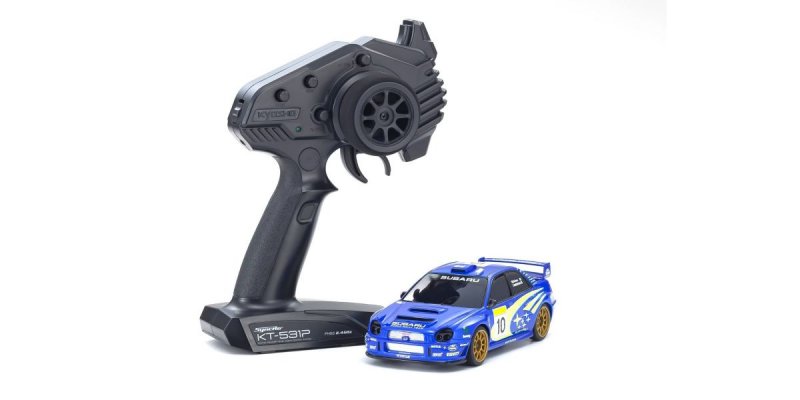

SUBARU IMPREZA WRC 2002

To bring its dynamic performance to even more drivers, the MINI-Z AWD has become for sale in a Readyset. The MA-020 chassis features VCS (variable camber suspension system) on the front that optimizes camber change with suspension swing and a specially designed circuit board. The chassis design allows room for setting up the optional MZW431gyro product. The gyro are modified by turning a little amount in the chassis to reflect the quantity of steering modification in reaction to alterations in framework position, permitting beginners right through to specialists to operate a vehicle to their complete potential. Completely fitted down with accuracy ball bearings, the high drive efficiency regarding the MA-020 chassis is complimented within the Readyset by the initial scale body and 2.4GHz Syncro KT-531P R/C system that requires no frequency musical organization setting; all at an excellent value cost. Simply set the batteries to savor the thrill of drift driving using the included set of drift tires. The framework works with almost all ASC MINI-Z systems (additional components perhaps necessary for some body designs). The MINI-Z AWD guarantees an original world of dramatic racing action for you to experience and enjoy.

• MINI-Z AWD Readyset based on MA-020 framework.
• Special circuit board updated with optimized steering control program.
• Chassis features gyro sensitivity modification function.
• Drift tires are installed as standard.
• Readyset requires only batteries to be prepared to use it!
• Features 2.4GHz Syncro KT-531P transmitter that requires no setup of frequency bands.
• Factory completed human body includes display model quality finish.
• Features VCS (variable camber suspension) that adjusts camber in accordance with suspension system stroke.
• Coil spring on front suspension can be simply replaced without tools.
• wide array of optional parts is available to be installed.
• Note) Optional ICS can NOT be used. Additionally, this model is particularly created for the KT-531P transmitter. It is not compatible with the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. It is just compatible with the special (No.MZW431) gyro device (offered individually).

• The 2002 Subaru Impreza brought Petter Solberg his very first WRC success on the road to the WRC (World Rally Championship) name the next 12 months. The trademark blue human body with six-stars became emblematic of fearless performance.
• Includes stylish design of Syncro KT-531P transmitter. Features steering / throttle trim along with twin rate adjustment of steering angle and control the flashing speed of optional LEDs. Besides, the transmitter has an exercise Mode function which limits rate of the car for simple learning (default environment during shipment is Training Mode).
• Special AWD Sports chassis is founded on the MA-02 chassis and features the RA45 unit.
• Features VCS front suspension that optimizes camber improvement in concert with suspension system stroke. Replacement of front suspension system coil springs is not hard with no tools required.
• Equipped with strut-type back suspension system.
• Full bearing specs consist of 14 ball bearings.
• Equipped with drift tires as standard.
• Equipped with unique mount area and gyro adjustment amount for the optional MZW431 gyro unit (offered individually).

TECHNICAL DATA

• Length 162.0mm
• Width 70.0mm
• Height 53.0mm
• Wheelbase 90.0mm(M)
• Tread F : 59.5mm R : 59.5mm
• Chassis MA-020-N
• Front Wheel Offset Narrow +1.5mm
• Front Wheel Offset Wide +1.5mm
• R/C System Syncro KT-531P

KIT CONTENT

• R / C device integrated complete framework
• Painted and marked complete body
• Syncro KT-531P transmitter
• Mini pylon
• Pinion gear (15T, 17T, 19T, 21T)
• Spur gear (27T, 29T, 31T)
• Spare nut
• Wheel wrench
• Pinion elimination tool

REQUIREMENT TO PERFORM

• AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
• AAA-size alkaline batteries x 4 for transmitter
