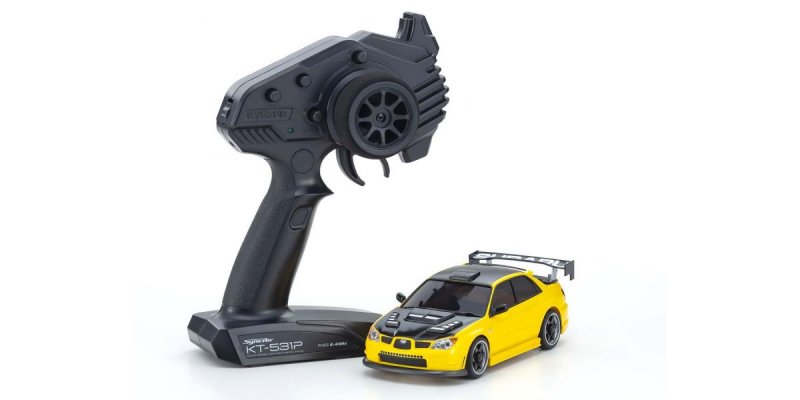

To create its powerful performance to more drivers, the MINI-Z AWD is now for sale in a Readyset. The MA-020 framework features VCS (variable camber suspension) regarding front side that optimizes camber change with suspension swing and a specially created circuit board. The framework design permits room for setting up the optional gyro device. The gyro can be adjusted by turning a tiny amount regarding chassis to mirror the quantity of steering correction in response to alterations in framework posture, permitting beginners through to professionals to push to their full potential. Fully fitted down with precision ball bearings, the high drive efficiency of MA-020 chassis is complimented within the Readyset by the initial scale body and 2.4GHz Syncro KT-531P R/C system that needs no frequency musical organization environment; all at a great value cost. Merely set the batteries to take pleasure from the excitement of drift driving aided by the included group of drift tires. The chassis is compatible with the majority of ASC MINI-Z systems (additional parts possibly necessary for some body designs). The MINI-Z AWD guarantees a unique world of dramatic racing action for you to experience and enjoy.
●MINI-Z AWD Readyset considering MA-020 framework.
●Special circuit board updated with optimized steering control system.
●Chassis features gyro sensitivity modification function.
●Drift tires are installed as standard.
●Readyset requires only batteries become prepared for action!
●Features 2.4GHz Syncro KT-531P transmitter that requires no setup of frequency bands.
●Factory finished human body comes with display model quality finish.
●Features VCS (variable camber suspension) that adjusts camber prior to suspension system stroke.
●Coil springtime on front suspension system can be simply changed without tools.
●wide range of optional parts is available to be installed.
●Note) Optional ICS can't be used. Also, this model is especially created for the KT-531P transmitter. It is not compatible with the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. Its just suitable for the unique gyro device (offered individually).
Later model specs were developed in this 2nd generation Subaru Impreza. Hawkeye headlights completed the formidable face of this machine that formed the base for aero tuning featuring big back wing and differing ducts.
Includes stylish design of Syncro KT-531P transmitter. Features steering / throttle trim plus dual rate modification of steering angle and control the flashing rate of optional LEDs. Additionally, the transmitter has an exercise Mode function which limits speed associated with vehicle for easy learning (standard environment during the time of shipment is Training Mode).
Special AWD Sports framework is based on the MA-02 framework and features the RA45 product.
Features VCS front suspension system that optimizes camber change in concert with suspension system stroke. Replacement of front suspension system coil springs is simple without any tools needed.
Built with strut-type back suspension system.
Complete bearing requirements consist of 14 ball bearings.
Built with drift tires as standard.
Designed with special mount area and gyro adjustment volume for the optional gyro unit (offered separately).
TECHNICAL DATA
- Length 155.0mm
- Width 68.0mm
- Height 51.0mm
- Chassis MA-020-N
- Wheelbase 90.0mm(M)
- Tread F : 58.5mm R : 58.5mm
- Tire F : 25.0mmx8.5mm R : 25.0mmx8.5mm
- Gear ratio 7.236.385.715.975.344.974.5:1
- Front Wheel Offset Narrow +1.0mm
- Rear Wheel Offset Narrow +1.0mm
- R/C System Syncro KT-531P
- Weight 193g
KIT CONTENT
/li>- R / C device integrated complete framework
- Painted and marked complete body
- Syncro KT-531P transmitter
- Mini pylon
- Pinion gear (15T, 17T, 19T, 21T)
- Spur gear (27T, 29T, 31T)
- Spare nut
- Wheel wrench
- Pinion elimination tool
REQUIREMENT TO RUN
- AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
- AAA-size alkaline batteries x 4 for transmitter
