To create its powerful performance to even more motorists, the MINI-Z AWD is now available in a Readyset. The MA-020 framework features VCS (variable camber suspension system) on the front that optimizes camber change with suspension system swing and a specially created circuit board. The chassis design enables area for setting up the optional MZW446 gyro product. The gyro are modified by switching a little volume on chassis to mirror the amount of steering correction responding to changes in framework position, enabling beginners through to experts to push for their full potential. Fully fitted down with accuracy ball bearings, the high drive efficiency associated with the MA-020 framework is complimented inside Readyset by the unique scale human body and 2.4GHz Syncro KT-531P R/C system that needs no regularity band environment; all at a great value cost. Simply set the batteries to enjoy the thrill of drift driving with the included pair of drift tires. The framework works with with most ASC MINI-Z bodies (additional parts maybe required for some body styles). The MINI-Z AWD guarantees a unique world of dramatic racing action to help you experience and revel in.
●MINI-Z AWD Readyset based on MA-020 chassis.
●Special circuit board updated with optimized steering control program.
●Chassis features gyro sensitiveness modification function.
●Drift tires are set up as standard.
●Readyset requires just batteries become prepared to use it!
●Features 2.4GHz Syncro KT-531P transmitter that needs no setup of regularity bands.
●Factory completed body comes with display model quality finish.
●Features VCS (variable camber suspension system) that adjusts camber according to suspension system swing.
●Coil springtime on front suspension can be easily changed without tools.
●wide range of optional components can be obtained become set up.
●(Note) Optional ICS can NOT be utilized. Also, this model is specifically created for the KT-531P transmitter. It isn't appropriate for the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. It is only compatible with the special gyro unit (offered individually).
The ‘Hellcat’ is the pure definition of United states muscle mass. Along with its 6.2ℓV8 supercharged engine creating a brutal 797 horsepower, the Hellcat is the high-performance model of Dodge Challenger lineup.

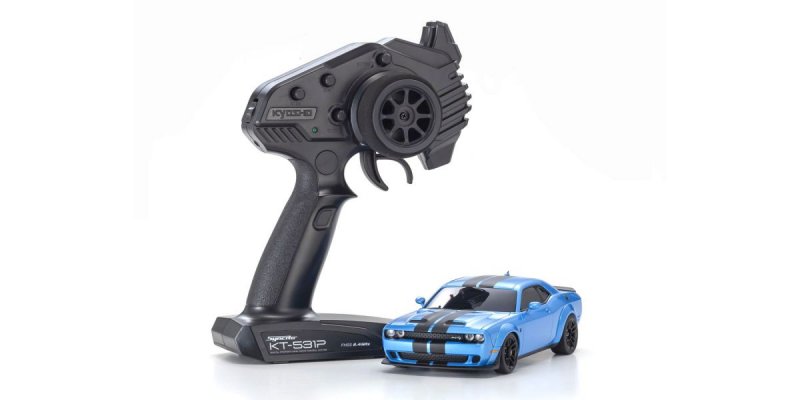

Includes trendy design of Syncro KT-531P transmitter. Features steering / throttle trim in addition to twin price adjustment of steering angle and control the blinking speed of optional LEDs. Additionally, the transmitter has an exercise Mode feature which limits rate of this automobile for simple learning (default environment at the time of shipment is knowledge Mode).
Unique AWD Sports framework is dependant on the MA-02 chassis and features the RA45 product.
Features VCS front suspension that optimizes camber change in concert with suspension swing. Replacement of front suspension system coil springs is straightforward without tools needed.
Equipped with strut-type rear suspension.
Full bearing requirements consist of 14 ball bearings.
Loaded with drift tires as standard.
Built with unique mount room and gyro adjustment volume the optional MZW446 gyro product (offered separately).
TECHNICAL DATA
- Length 171.0mm
- Width 75.0mm
- Height 50.0mm
- Chassis MA-020-W
- Wheelbase 98.0mm(LL)
- Tread F : 64.5mm R : 62.0mm
- Tire F : 25.0mmx8.5mm R : 25.0mmx11.0mm
- Gear ratio 7.236.385.715.975.344.974.5:1
- Front Wheel Offset Narrow +1.5mm
- Rear Wheel Offset Wide +1.5mm
- R/C System Syncro KT-531P
- Weight 193g
KIT CONTENT
- R / C product integral complete framework
- Painted and marked complete human body
- Syncro KT-531P transmitter
- Mini pylon
- Pinion gear (15T, 17T, 19T, 21T)
- Spur gear (27T, 29T, 31T)
- Spare nut
- Wheel wrench
- Pinion elimination tool
REQUIREMENT TO RUN
- AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
- AAA-size alkaline batteries x 4 for transmitter
