To bring its powerful performance to more drivers, the MINI-Z AWD has become obtainable in a Readyset. The MA-020 chassis features VCS (variable camber suspension) regarding the front side that optimizes camber modification with suspension system stroke and a specially designed circuit board. The framework design enables area for installing the optional MZW446 gyro unit. The gyro may be adjusted by turning a small amount regarding framework to mirror the amount of steering correction in reaction to changes in framework position, permitting beginners to specialists to operate a vehicle for their full potential. Fully fitted out with precision ball bearings, the high drive efficiency of this MA-020 chassis is complimented inside Readyset by the initial scale human anatomy and 2.4GHz Syncro KT-531P R/C system that will require no frequency musical organization setting; all at outstanding value price. Simply set the batteries to enjoy the thrill of drift driving using the included pair of drift tires. The framework is compatible with the majority of ASC MINI-Z figures (additional components maybe necessary for somebody designs). The MINI-Z AWD promises a unique world of dramatic race action for you to experience and enjoy.
●MINI-Z AWD Readyset predicated on MA-020 framework.
●Special circuit board updated with optimized steering control program.
●Chassis features gyro sensitivity adjustment function.
●Drift tires are installed as standard.
●Readyset requires only batteries to be ready to use it!
●Features 2.4GHz Syncro KT-531P transmitter that needs no setup of frequency bands.
●Factory completed body comes with display model quality finish.
●Features VCS (variable camber suspension) that adjusts camber relative to suspension system swing.
●Coil spring on front suspension can be easily changed without tools.
●wide range of optional parts can be acquired to be installed.
●Note) Optional ICS can't be used. Also, this model is specifically designed for the KT-531P transmitter. It is really not suitable for the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. It's only appropriate for the unique gyro product (sold individually).
The ‘Hellcat’ may be the pure concept of American muscle tissue. Along with its 6.2ℓV8 supercharged motor creating a brutal 797 horsepower, the Hellcat could be the high-performance type of Dodge Challenger lineup.

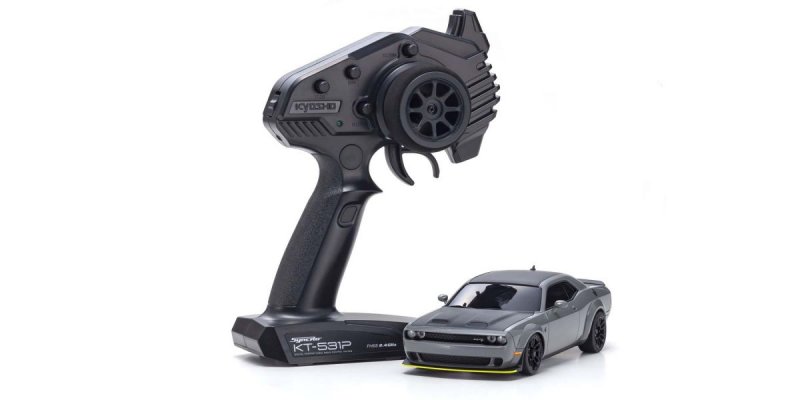

Includes stylish design of Syncro KT-531P transmitter. Features steering / throttle trim in addition to double price modification of steering angle and control the blinking speed of optional LEDs. Also, the transmitter has a Training Mode function which limits rate regarding the automobile for simple learning (default setting during delivery is Training Mode).
Special AWD Sports framework is founded on the MA-02 chassis and features the RA45 product.
Features VCS front suspension system that optimizes camber improvement in concert with suspension swing. Replacement of front suspension system coil springs is simple without any tools needed.
Designed with strut-type back suspension system.
Complete bearing specifications consist of 14 ball bearings.
Loaded with drift tires as standard.
Built with unique mount room and gyro modification volume the optional MZW446 gyro device (offered separately).
TECHNICAL INFORMATION
- Length 171.0mm
- Width 75.0mm
- Height 50.0mm
- Chassis MA-020-W
- Wheelbase 98.0mm(LL)
- Tread F : 64.5mm R : 62.0mm
- Tire F : 25.0mmx8.5mm R : 25.0mmx11.0mm
- Gear ratio 7.236.385.715.975.344.974.5:1
- Front Wheel Offset Narrow +1.5mm
- Rear Wheel Offset large +1.5mm
- R/C System Syncro KT-531P
- Weight 193g
KIT CONTENT
- R / C product integrated complete framework
- Painted and marked complete human anatomy
- Syncro KT-531P transmitter
- Mini pylon
- Pinion gear (15T, 17T, 19T, 21T)
- Spur gear (27T, 29T, 31T)
- free nut
- Wheel wrench
- Pinion removal tool
REQUIREMENT TO PERFORM
- AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
- AAA-size alkaline batteries x 4 for transmitter
