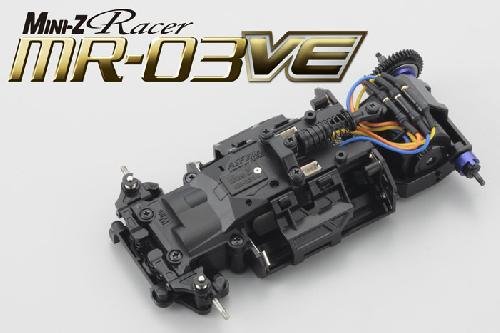

Kyosho 32760 - 1/27 R/C EP Touring Car MINI-Z Racer ASF 2.4GHz Brushless Motor MR-03VE Chassis Set KYOSHO京商車套裝   [KY32760]

Chassis pre-installed with high performance brushless motor!
Next generation MINI-Z presents even more durability and power!

The next evolution of MINI-Z Racer now incorporates the newest brushless motor technology into its performance. Never used before on a MINI-Z, this model includes the same-sized ‘Team Orion XSPEED VE’ brushless engine with its characteristic high durability, power, RPM and a set torque feel. The MINI-Z takes full advantageous asset of the brushless motor’s efficient low friction; non-contact properties that minimize wear and reduce electrical noise to provide outstanding linear reaction and smooth acceleration for a sensorless brushless motor which approved for use into the MINI-Z Cup alongside official events. A limit put on maximum RPM keeps the playing field level for many motorists. Furthermore, a newly designed circuit board with ICS function links to a Computer (adapter offered individually) for accuracy environment alterations. Just down load the ‘ICS VE Manager’ pc software from the Kyosho web site to manage the brushless engine settings and eliminate the RPM limit to draw out the entire potential from your own machine. The newly created upper address also enables simple mounting associated with the optional gyro ahead while the chassis has the MR-03 ball diff which was formerly optional. Now the MR-03’s dynamic performance is turbo-charged with brushless motor power to mark a brand new stage in development of MINI-Z performance and technology.

*Can be operated with past MINI-Z Racer ASF2.4 GHz 2-channel transmitter.

Features:

• MR-03 Chassis Set installed with brushless motor

• Ball Diff Set (No.MZW206) included as standard.

• Compatible with all existing MINI-Z Racer body kinds.

• Unique brushless motor circuit board features 3 LEDs to point proper function.

• Redesigned top address allows simple installing gyro.

• Compatible with optional components the MR-03 framework.

• Features newly developed revolutionary ‘VCS’ front suspension that changes camber angle together with suspension swing.

• ASF2.4GHz R/C system eliminates need certainly to handle frequency bands. A single transmitter can be used with multiple models. **Transmitter comes individually.

• Built with digital steering servo with integrated coreless engine.

• Coil springs on front suspension system can be simply changed by eliminating the spring stopper with just two screws.

• Features high effectiveness gold plated motor terminals.

• Pre-calibrated zero point steering environment.

• Brushless motor is the same size as current 130-class motors. Delivers outstanding durability and energy.

• Newly developed brushless engine circuit board could be added onto the MR-03 framework. Equipped with 3 LEDs to indicate proper operation and ICS function.

• Upper cover redesigned to fit new circuit board and is suitable for all current human anatomy types. Features room on the top for mounting optional gyro.

• Good quality gold plated motor terminals and silicon cables included as standard to handle the high energy output.

• Ball Diff Set (formerly optional part No.MZW206) is included as standard. Functions in perfect combination with brushless engine energy.

brushless motor

• Rather than the brush and commutator found in brushed engines up until now, brushless engines depend on the electric circuit to power the motor. To build energy, brushed engines required constant contact between your brush and commutator, which created opposition and caused use in the contact areas to lessen the motor's durability.
  Brushless motors prevent this problem and create greater power output, torque and greater higher end performance from same energy input. As there is absolutely no contact area, durability is improved so that the engine keeps its higher rate of performance for much longer. These faculties enable R/C models to do at greater amounts than in the past.

VCS (Variable Camber suspension system) takes performance to a fresh dimension!

• Upper hands linked to master pins and knuckles with ball links let the camber angle to improve with suspension stroke, like on a real automobile. Tire experience of the surface continues to be constant, also during framework roll and suspension system swing from area tracing. The newly developed electronic steering servo uses a coreless motor that provides quick steering reaction and sharp maneuverability that feels as though its riding on rails. Additionally, the top of supply and one-piece cantilever offer perfect cushioned motion the coil springtime. Additionally, the stainless metal king pin and wheel shaft delivers smooth movement for exemplary operating stability. Precision geometry settings remove toe in and toe away change during suspension system swing and produce a basic steering feel. The innovative VCS (adjustable Camber Suspension) represents a significant evolutionary action in history of the MINI-Z.

Newly developed digital steering servo features coreless motor and brand new gear reduction ratio

• The powerful place retention and motion associated with the electronic servo is enhanced with the use of a coreless motor that delivers instantaneous get and stopping. Furthermore, the newly developed steering gear product has 3 times the gear ratio of earlier incarnations for greater energy in keeping its place therefore it holds its line securely facing kickbacks from the road surface and in addition delivers even more exact motion and reaction.

Kit Contents

• Factory assembled MR-03W framework set up with Team ORION XSPEED VE brushless engine.

• One-piece RA-27 receiver and brushless engine circuit board loaded with ICS connector

• Modification parts for RM-type engine mount

• Upper and reduced dish and steering tie pole for (front) slim tread (included)

• Front suspension system spacers for modification

• Pinion Gears (7T, 8T, 9T)

• Wheel wrench

• Pinion gear tool

• Pairing stick

• free wheel nuts

Needed for procedure

• ASF 2.4GHz Perfex KT-18 transmitter for MINI-Z or Kyosho EX-5UR ASF transmitter (No.82011)

• AAA size alkaline batteries or Ni-MH x 4 for framework

• AAA sized alkaline batteries x 4 for transmitter (KT-18), AA sized alkaline batteries x 8 (EX-5UR)

Chassis Technical Information

• Length: 124~133mm(MM Chassis:125~133mm?RM Chassis:124~132mm)

• Width: 65~76mm

• Height: 34~35mm

• Wheelbase: 86~106mm(86,90,94,98,102,106)

• Tread (F/R): (Wide)61.5mm / 59mm (Narrow)56.5mm / 56.5mm [when wheel offset is 0]

• Tire(F/R): 23.5~25×8.5mm / 25~27×8.5~11mm

• Gear Ratio: 7.3,6.3,5.5,4.9:1

• Weight: 135g approx.

• Motor: Team ORION XSPEED VE
