Kyosho 32780 - MINI-Z ASF 2.4GHz MR-03VE JSCC Blue Limited sho 50th Anniversary Specification KYOSHO京商車套裝   [32780]

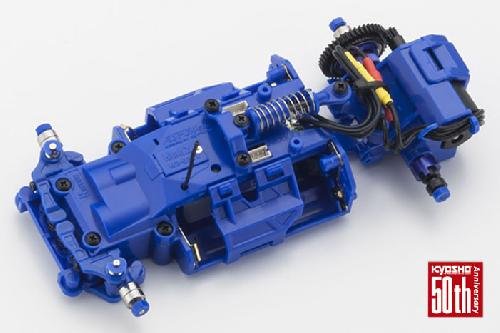

Vivid blue colored framework and framework elements mark the MR-03VE Blue Limited 50th Anniversary Chassis as a special machine. Having its brushless engine specs the MR-03VE framework competes during the greatest degree into the popular JSCC course associated with MINI-Z Cup. Besides the ECO Tuned VE motor’s driver friendly traits, comes the reliability and high torque of brushless motor performance. Inside heat of JSCC course racing battle, these advantages can offer the advantage. This restricted version with complete bearing specifications is delivered on same cost since the existing chassis set. Also, the chassis permits an optional gyro become bolted on and it is appropriate for all body styles (somebody styles need extra parts). Download the free ICS VE Manager pc software through the Kyosho site and detail by detail settings could be modified (adaptor sold separately is necessary). Advanced features and technology prepare the motorist as well as the device for future evolution. With the MR-03VE Blue Limited 50th Anniversary Chassis, you could find the true essence of the racing experience.

Priced just like the present chassis set, this model features complete ball bearing requirements to supply high effectiveness and low resistance for JSCC course competition.

• Pre-assembled MR-03VE N-RM framework set fitted with ECO Tuned brushless engine.
• Special edition blue color finish.
• Full ball bearings, ball diff, silver plated battery pack terminals included as standard.
• RM motor mount and narrow tread requirements.
• Includes MM motor mount and front tread replacement parts.
• Suitable for the majority of body styles. (Some bodies require additional components)
• Upper cover enables optional gyro to be easily fitted.
• Compatible with wide range of optional components the MR-03 framework.
• Revolutionary front suspension design adjusts camber with suspension stroke.
• ASF 2.4GHz system immediately manages frequency bands. ※Transmitter sold separately
• Digital steering servo featuring coreless engine.
• Spring stopper may be installed or eliminated with only 2 screws.
• Tall conductivity silver plated battery pack terminals.

  ＜ Kit Contents ＞

• Pre-assembled MR-03VE N-RM chassis fitted with ECO Tuned VE brushless motor
• One-piece RA-27 receiver with ICS connector and brushless engine circuit board
• MM motor mount transformation parts
• Front reduced and top dishes, steering tie-rod for wide tread.
• Front suspension adjustment spacer
• 7T, 8T and 9T pinion gears
• Wheel wrench
• Pinion gear device
• Pairing stick
• Free wheel peanuts

＜ Required for procedure ＞

• ASF2.4GHz PERFEX KT-18 transmitter for MINI-Z or Kyosho EX-5UR ASF transmitter (No.82011)
• Auto Scale Collection (body set, wheels. tires)
• 4 x AAA-size alkaline or NiMH batteries
• 4 x AAA-size alkaline batteries for transmitter (KT-18), 8 x AA-size alkaline batteries (EX-5UR)

Chassis Technical Information

• Length
  124 – 133mm (MM Chassis:125 – 133mm, RM Chassis:124 – 132mm)
• Width
  65 – 76mm
• Height
  35mm
• Wheelbase
  86 – 106mm (86,90,94,98,102,106)
• Tread (F/R)
  (Wide)61.5mm/59mm (Narrow)56.5mm/56.5mm (when Wheel Offset=0)
• Tire(F/R)
  23.5 – 25 x 8.5mm (offered individually) / 25 – 27 x 8.5-11mm (available individually)
• Gear Ratio
  7.3, 6.3, 5.5, 4.9 : 1
• Weight
  135g (approx. without body)
• Engine
  ECO Tuned VE Brushless
