Kyosho 32782 MR-03VE PRO MM2 Chassis Set KYOSHO京商MINI-Z車套裝   [KY32782]

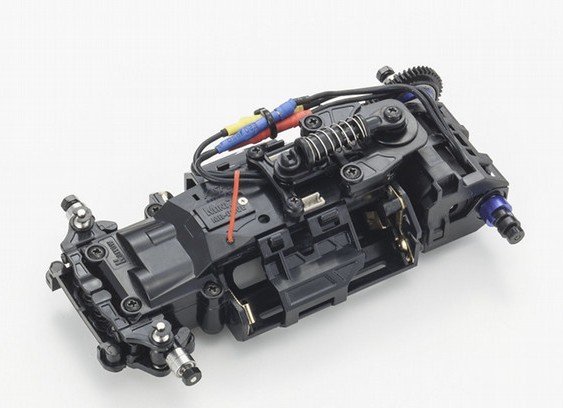

Kyosho 32782 MR-03VE PRO MM2 Chassis Set
價格:
HKD$1,687.74
牌子:
Kyosho
型號:
KY32782
GTIN:
4548565302215
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - On-Road - Mini-Z
類別中嘗試尋找類似的產品
填寫評論
alt="Kyosho 32782 MR-03VE PRO MM2 Chassis Set" title="Kyosho 32782 MR-03VE PRO MM2 Chassis Set"
alt="Kyosho 32782 MR-03VE PRO MM2 Chassis Set" title="Kyosho 32782 MR-03VE PRO MM2 Chassis Set"
alt="Kyosho 32782 MR-03VE PRO MM2 Chassis Set" title="Kyosho 32782 MR-03VE PRO MM2 Chassis Set"
alt="Kyosho 32782 MR-03VE PRO MM2 Chassis Set" title="Kyosho 32782 MR-03VE PRO MM2 Chassis Set"
alt="Kyosho 32782 MR-03VE PRO MM2 Chassis Set" title="Kyosho 32782 MR-03VE PRO MM2 Chassis Set"
alt="Kyosho 32782 MR-03VE PRO MM2 Chassis Set" title="Kyosho 32782 MR-03VE PRO MM2 Chassis Set"
alt="Kyosho 32782 MR-03VE PRO MM2 Chassis Set" title="Kyosho 32782 MR-03VE PRO MM2 Chassis Set"
alt="Kyosho 32782 MR-03VE PRO MM2 Chassis Set" title="Kyosho 32782 MR-03VE PRO MM2 Chassis Set"

16 times quicker compared to previous ASF 2.4GHz system + KT-18 transmitter combination and 4 times faster than the ASF 2.4GHz system + KO PROPO EX-1 combination, the ultrafast reaction of MHS 2.4GHz system while the MR-03VE Pro chassis set is ideal for JSCC class racers within the MINI-Z Cup. Along with its performance defining midship motor mount, brand new MM2 motor situation enables the longer (94mm) wheelbase to be utilized. The present MM engine situation design can be utilized aided by the LL (98mm), 3L (102mm) and 4L (106mm) wheelbases, but the new MM2 engine situation can be used with L, LL and 3L wheelbases. Additionally, set alongside the existing RM engine case, mass balance is optimized to enhance cornering performance and minimize tipping considering high side on hybrid surfaces. These performance features offer a giant advantage in JSCC class with all the slim human anatomy required by the laws. Additionally, axle modification spacers allow modifications to the back axle shaft height and together with the brand new synthetic friction shock, precision environment in accordance with road surface conditions are feasible. The advantages of the MM2 motor situation match the ultra-responsiveness for the MHS2.4GHz system within the advanced MR-03VE professional chassis for psychokinetic-like response and a linear control feeling that understands the best goal of improved lap times.


  • MR-03 framework set installed with brushless motor enables mid engine mount with L wheelbase.
  • Rear axle shaft height is changed with axle modification spacers.
  • Equipped with brand new shape synthetic friction surprise as standard.
  • MHS 2.4GHz system provides the fastest control reaction in MINI-Z history.
  • I.C.S. system can be used with conventional manager the VE
  • Features full ball bearings, ball diff (blue anodized), and gold plated battery pack terminal specifications.
  • Compatible with optional components for the MR-03 chassis.
  • distinctive front suspension (VCS) changes camber relative to suspension stroke.
  • Compatible with ASF 2.4GHz system. **Transmitter sold separately.
  • Equipped with digital servo incorporating coreless motor.
  • Coil spring on the front suspension system can be simply changed by detatching the spring stopper with just two screws.

  • TECHNICAL DATA

  • Length: 120-128mm
  • Width: 65-76mm
  • Height: 37.5mm
  • Wheelbase: 94.0-102mm(94, 98, 102)
  • Tread (F/R): 56.5-63.0mm
  • Tire (F/R): 25 x 8.5mm(offered separately) / 25 x 8.5-11mm(offered separately)
  • Gear Ratio: 7.3, 6.3, 5.5, 4.9:1
  • body weight: 135g
  • Motor: Xspeed VE ECO Tune brushless motor

  • KIT CONTENTS

  • MR-03N-MM2 factory assembled chassis installed with Xspeed VE ECO Tune brushless motor
  • Front width modification parts
  • Pinion gear (6T, 7T, 8T, 9T)
  • Wheel wrench
  • Pinion tools
  • Spare wheel nuts


    REQUIRED FOR PROCEDURE

  • ASF 2.4GHz transmitter KT-18, or MHS 2.4GHZ transmitter EX-6 *If using MINI-Z HYBRID SPREAD SYSTEM (MHS), calls for compatible transmitter.
  • Car Scale Collection (human anatomy set, wheels, tires)
  • 4 x alkaline batteries or 4 x NiMH batteries for chassis
  • 4 x AAA batteries for transmitter
