Kyosho 32783 - MR-03VE PRO 02 Color Limited W/MM Gyro Chassis Set KYOSHO京商MINI-Z車套裝   [KY32783]

Kyosho 32783 - MR-03VE PRO 02 Color Limited W/MM Gyro Chassis Set
價格:
HKD$1,822.54
牌子:
Kyosho
型號:
KY32783
GTIN:
4548565330447
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - On-Road - Mini-Z
類別中嘗試尋找類似的產品
填寫評論
alt="Kyosho 32783 - MR-03VE PRO 02 Color Limited W/MM Gyro Chassis Set" title="Kyosho 32783 - MR-03VE PRO 02 Color Limited W/MM Gyro Chassis Set"
alt="Kyosho 32783 - MR-03VE PRO 02 Color Limited W/MM Gyro Chassis Set" title="Kyosho 32783 - MR-03VE PRO 02 Color Limited W/MM Gyro Chassis Set"

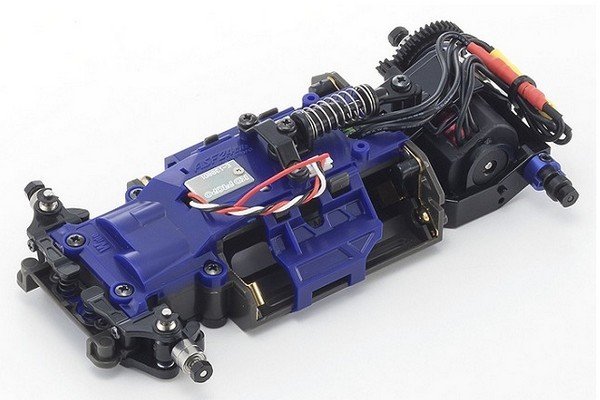

Meet up with the 4th version ‘02 colors Limited’ MR-03VE PRO Series framework set which includes the ultra-fast response of MHS (MINI-Z Hybrid Spread Spectrum) 2.4GHz system that is 16 times faster than the past ASF 2.4GHz system + KT-18 transmitter combination and 4 times faster versus ASF 2.4GHz system + KO PROPO EX-1 transmitter combination. The stunning color scheme associated with the previous generation MR-02 has been revived within latest version including blue Upper Cover Set (No.MZ502) and Chassis Small Parts Set (No.MZ402) together with grey molded components in Chassis Set (No.MZ501) to generate contrasting visuals to the straight black of normal MR-03 framework. Along with ball diff additionally the complete ball bearing specifications for the current VE professional, this new variation can be loaded with a gyro device. The MR-03VE PRO 02 colors Limited is a total race-ready package distinguished by its limited edition color scheme and is particularly suitable for existing ASF 2.4GHz systems and will be combined with the Perfex KT-18 as well as the KO PROPO EX-1 transmitters.


  • MR-03VE PRO Chassis Set installed with brushless engine and gyro unit
  • Color scheme revives the last MR-02 style
  • Includes complete ball bearings, ball diff and silver plated battery pack terminals
  • All MINI-Z Racer figures could be installed. (Some body styles require various engine situation - sold individually)
  • Special circuit board for brushless engine installed with 3 high exposure LEDs
  • Includes electronic steering servo set up with coreless motor
  • Equipped with VCS suspension system from the MR-03
  • Compatible with MINI-Z MR-03VE professional 02 Color Limited Chassis Set (W-MM) (MHS/ASF Compatible 2.4GHz System) Chassis Set for the MR-03 chassis
  • Ultra quick sign processing rate leads to almost instantaneous control response.

    • TECHNICAL DATA

    • Length 124-133mm (MM framework:125-133mm, RM chassis:124-132mm)
    • Width 65-76mm
    • Height 34-35mm
    • Wheelbase 86-106mm(86,90,94,98,102,106)
    • Tread (F/R) Wide:61.5mm/59mm Narrow:56.5mm/56.5mm (whenever wheel offset is 0)
    • Tire (F/R) 23.5-25x8.5mm / 25-27x8.5-11mm
    • Gear Ratio 7.3, 6.3, 5.5, 4.9 : 1
    • Weight 135g (approx.)
    • Motor KV 8500 Xspeed VE brushless

    KIT ARTICLES

    • MR-03W-MM factory assembled chassis installed with Xspeed VE brushless motor
    • One-piece circuit board for brushless engine and RA-27 receiver with ICS connector
    • Parts for changing to RM type motor mount
    • Upper and lower dishes for slim tread (front side), steering tie rod (included)
    • Front sus spacer for adjustment
    • Pinion gear tool
    • Pinion gear (7T, 8T, 9T)
    • Spare wheel nut
    • Wheel wrench
    • Pairing stick


    NEEDED FOR OPERATION

    • MHS 2.4GHz transmitter (EX-6R, EX-6) or ASF 2.4GHz transmitter (Perfex KT-18, KO PRPPO EX-1)
    • Auto Scale Collection (human body set, tires, tires)
    • 4 x AAA alkaline batteries for transmitter
    • 4 x AAA alkaline batteries or 4 x Ni-MH for chassis
