Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV) KYOSHO京商車套裝   [KY-32792]

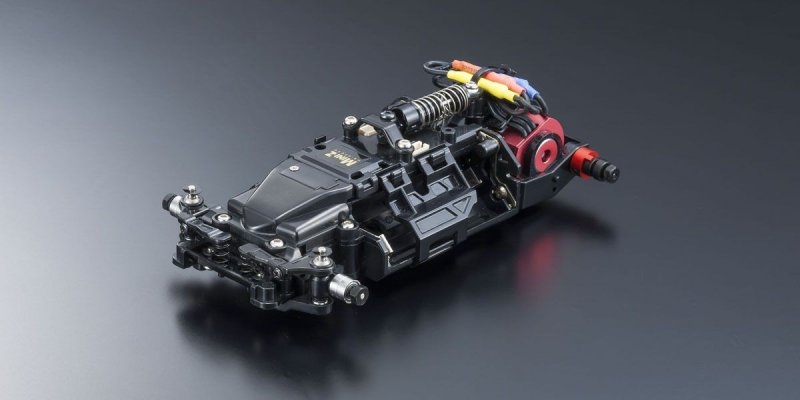

Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)
價格:
HKD$1,498.40
牌子:
Kyosho
型號:
KY-32792
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - On-Road - Mini-Z
類別中嘗試尋找類似的產品
填寫評論
alt="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)" title="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)"
alt="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)" title="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)"
alt="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)" title="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)"
alt="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)" title="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)"
alt="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)" title="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)"
alt="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)" title="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)"
alt="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)" title="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)"

The existing MINI-Z is installed receiver, servo and ESC by 1 managed PCB device. Nevertheless the brand new MR-03EVO Chassis Set has split receiver as 1 product. By buying and installing an optional receiver product depending on applied transmitter, permits for Kyosho (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO Propo (EX-2/EX-RR) and Futaba (T7PX/T7XC/T4PM) transmitters. Further, by setting up new CPU which control servo function just, it improves interior feedback of positioning control which will be 11.2 times quicker than existing VE professional models. The newly developed control program understands the very best ever steering feeling inside MINI-Z history. The ESC additionally improves the reaction speed in maximum 100 times faster than existing VE professional models. The included KYOSHO SPEED HOME XSPEED 85 (8500KV) brushless motor features a one-piece aluminum situation that provides efficient heat dissipation for superior cooling. Unlike past chassis sets, it is possible to alter to your brushed motor mode though the I.C.S manager to install an optional brushed motor. The I.C.S supervisor also allows more exact setting adjustments to be made. Brand new advanced performance features inside MR-03EVO just take the MINI-Z race experience to another location level!
The SP edition is equipped with nickel plated hex screws and an oil shock (MZW432) as standard. Also, the ball diff is specifically completed with red anodizing. In addition, new top hands with various caster angles (1 degree/2 degree/3 level) are included enabling wider setting range.


  • First MINI-Z MR-03 Chassis Set that adopts split ESC and receiver design.
  • Includes new KYOSHO SPEED HOME XSPEED 85 brushless motor (8500KV).
  • I.C.S manager features detail by detail steering and throttle parameter adjustment, in addition to switching between brushless and brushed modes.
  • Powered by independent CPUs for ESC and receiver, increased interior processing speed contributes to accuracy steering and throttle control.
  • Equipped with ball bearings and red anodized Ball Diff Set II.
  • Newly created split receiver address and front upper supply mount make tread adjustment easier.
  • Appropriate for optional components for the MR-03 chassis.
  • Including newly developed front top arms with caster angles (1 level, 2 degree and 3 degree)

    • TECHNICAL INFORMATION

  • 117.7mm
  • 70~76mm
  • 35mm
  • 98.0mm(LL)
  • F:61.5~63.0mm/R:61.5~63.0mm
  • MM2
  • (F/R) φ25×8.5mm()/φ25×8.511mm()_
  • 7.36.35.54.9:1
  • 135g ()
  • KYOSHO SPEED HOME / XSPEED 56 (5600KV)

    • KIT ARTICLES

  • MR-03EVO-W-MM Factory assembled chassis with KYOSHO SPEED HOME XSPEED 4100KV brushless motor
  • Parts set for changing front tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel nuts

    • REQUIRED FOR OPERATION

  • Receiver unit
  • Transmitter appropriate for receiver unit
  • Auto Scale Collection (body set, tires, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
    •
