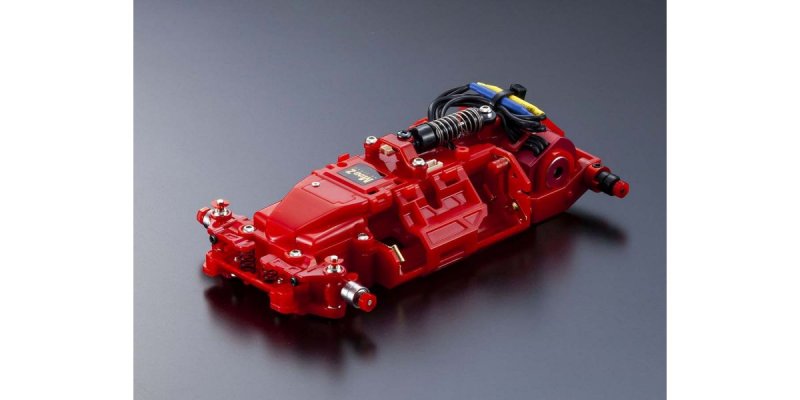

The prevailing MINI-Z is installed receiver, servo and ESC by 1 managed PCB product. But the brand new MR-03EVO Chassis Set has split receiver as 1 unit. By purchasing and installing an optional receiver device based on applied transmitter, it allows for Kyosho (EX-6R/KT-531P), KO Propo (EX-2/EX-RR), Futaba (T7PX/T7XC/T4PM), and Flysky (Noble NB4) transmitters. Further, by setting up brand new CPU which control servo function only, it improves interior feedback of placement control that will be 11.2 times quicker than existing VE professional models. The newly developed control program realizes the most effective ever steering feeling inside MINI-Z history. The ESC also improves the response speed in maximum 100 times faster than existing VE PRO models. The included KYOSHO SPEED HOME XSPEED 85 (8500KV) brushless engine features a one-piece aluminum case that delivers efficient heat dissipation for superior cooling. Unlike past framework sets, you can alter to your brushed engine mode through the I.C.S manager to install an optional brushed engine. The I.C.S supervisor also permits more accurate environment alterations become made. Brand new advanced level performance features in MR-03EVO just take the MINI-Z race experience to another degree! The SP version is equipped with nickel plated hex screws and an oil surprise (MZW432) as standard. Also, the ball diff is specially finished with red anodizing. Also, brand new top hands with various caster angles (1 degree/2 degree/3 level) are included allowing wider environment range. The Red Limited version newly features red synthetic parts throughout the framework that are well coodinated with all the red anodized engine and ball diff.
＊First MINI-Z MR-03 Chassis Set that adopts split ESC and receiver design.
＊Includes brand new KYOSHO SPEED HOME XSPEED 85 brushless motor (8500KV).
＊I.C.S supervisor features detailed steering and throttle parameter modification, as well as switching between brushless and brushed modes.
＊Powered by independent CPUs for ESC and receiver, increased internal processing rate contributes to accuracy steering and throttle control.
＊Equipped with ball bearings and red anodized Ball Diff Set II.
＊Newly designed separate receiver address and front top arm mount make tread modification easier.
＊Compatible with MINI-Z Racer MR-03EVO SP Chassis Set Red Limited (W-MM 8500KV) for the MR-03 framework.
＊Including newly developed front upper hands with caster perspectives (1 level, 2 degree and 3 level)
＊Special version designed with a colored framework, which can be just avialable inside chassis set.
In line with the MR-03VE PRO framework, newly designed separate receiver address and front top supply mount render tread adjustment easier.
Receiver devices currently available are for KYOSHO, KO and FUTABA transmitters and that can be attached/detached by removing receiver address from the upper framework.
Brand new KYOSHO SPEED HOUSE XSPEED 85 brushless motor (8500KV) features a one-piece aluminum case that realizes efficient heat dissipation.
Loaded with Ball Diff Set II that decreases weight of aluminum parts in the spur gear side and optimizes stability regarding the hub part. This will be a must-have item and it is utilized frequently in competition-level racing.
Complete ball bearing specifications minmise drive loss
TECHNICAL DATA
- Length 123.5mm
- Width 70~76mm
- Height 35mm
- Wheelbase 94.0mm(LL)
- Tread F:61.5~63.0mm/R:61.5~63.0mm
- Motor Mount MM
- Tires F: 25x8.5mm (offered separately)/R: 25x8.511mm (sold separately)
- Gear Ratio 7.36.35.54.9:1
- Weight 135g (approx.)
- Motor KYOSHO SPEED HOME / XSPEED 85 (8500KV)
KIT CONTENT
- MR-03EVO-W-MM Factory assembled chassis with KYOSHO SPEED HOUSE XSPEED 85 8500KV brushless motor
- Parts set for changing front tread
- 6T7T8T9T Pinion gears
- Wheel wrench
- Tools for pinion gears
- Spare wheel nuts
REQUIREMENT TO PERFORM
- Receiver unit
- Transmitter suitable for receiver unit
- Auto Scale Collection (human body set, tires, tires)
- AAA x 4 alkaline batteries or Ni-MH batteries for chassis
- Batteries for transmitter
