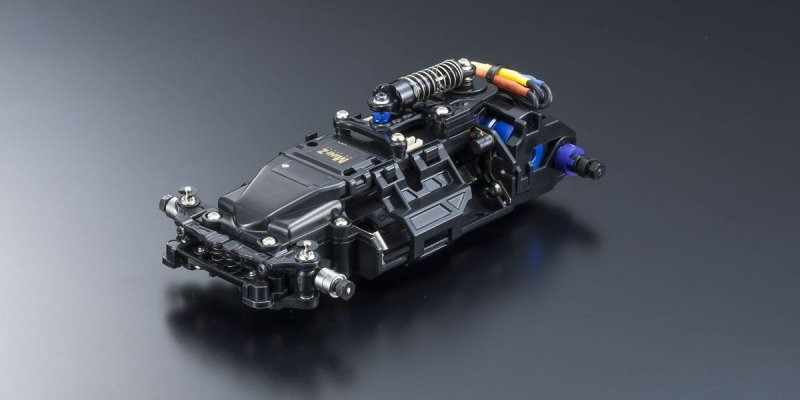

Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV) KYOSHO京商車套裝   [KY-32793]

Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)
價格:
HKD$1,498.40
牌子:
Kyosho
型號:
KY-32793
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - On-Road - Mini-Z
類別中嘗試尋找類似的產品
填寫評論
alt="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)" title="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)"
alt="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)" title="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)"
alt="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)" title="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)"
alt="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)" title="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)"
alt="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)" title="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)"
alt="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)" title="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)"
alt="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)" title="Kyosho 32793 - MINI-Z Racer MR-03EVO SP Chassis Set (N-MM2/5600KV)"

The present MINI-Z is set up receiver, servo and ESC by 1 managed PCB unit. However the brand new MR-03EVO Chassis Set has split receiver as 1 device. By purchasing and setting up an optional receiver device depending on applied transmitter, it allows for Kyosho (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO Propo (EX-2/EX-RR) and Futaba (T7PX/T7XC/T4PM) transmitters. Further, by setting up new CPU which control servo function only, it improves internal feedback of placement control that will be 11.2 times quicker than current VE professional models. The newly developed control system understands top ever steering feeling into the MINI-Z history. The ESC additionally improves the response speed in maximum 100 times faster than current VE professional models. The included KYOSHO SPEED HOME XSPEED 56 (5600KV) brushless engine features a one-piece aluminum situation providing you with efficient temperature dissipation for superior cooling. Unlike past framework sets, it is possible to change towards the brushed engine mode although I.C.S manager to set up an optional brushed motor. The I.C.S manager also permits more accurate setting adjustments to be made. Brand new higher level performance features in MR-03EVO simply take the MINI-Z racing experience to another location level!
The SP version is equipped with nickel plated hex screws and an oil surprise (MZW432) as standard. Also, the ball diff is particularly finished with blue anodizing. Moreover, new top hands with various caster angles (1 degree/2 degree/3 level) are included allowing wider setting range.


  • Very first MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.
  • Includes brand new KYOSHO SPEED HOME XSPEED 56 brushless motor (5600KV).
  • I.C.S supervisor features detailed steering and throttle parameter adjustment, and switching between brushless and brushed modes.
  • Powered by separate CPUs for ESC and receiver, increased interior processing speed plays a part in precision steering and throttle control.
  • Equipped with ball bearings and blue anodized Ball Diff Set II.
  • Newly designed split receiver cover and front upper arm mount render tread adjustment easier.
  • Appropriate for optional parts for the MR-03 chassis.
  • Including newly developed front top arms with caster perspectives (1 level, 2 level and 3 degree)

    • TECHNICAL INFORMATION

  • Length 115.5mm
  • Width 70~76mm
  • Height 35mm
  • Wheelbase 94.0mm(L)
  • Tread F:61.5~63.0mm/R:61.5~63.0mm
  • Motor Mount MM2
  • Tires (F/R) φ25×8.5mm (sold separately)/φ25×8.511mm (sold separately)
  • Gear Ratio 7.36.35.54.9:1
  • Weight 135g (approx.)
  • Motor KYOSHO SPEED HOUSE / XSPEED 56 (5600KV)

    • KIT ARTICLES

  • MR-03EVO-N-MM2 Factory put together framework with KYOSHO SPEED HOME XSPEED 5600KV brushless motor
  • Parts set for changing front tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel nuts

    • REQUIRED FOR OPERATION

  • Receiver unit
  • Transmitter compatible with receiver unit
  • Auto Scale Collection (human body set, wheels, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
    •
