Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV) KYOSHO京商車套裝   [KY-32794]

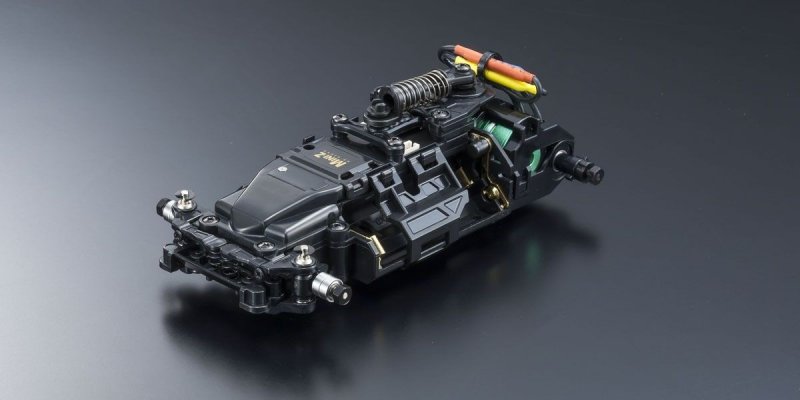

Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)
價格:
HKD$0.00
牌子:
Kyosho
型號:
KY-32794
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - On-Road - Mini-Z
類別中嘗試尋找類似的產品
填寫評論
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"

The existing MINI-Z is set up receiver, servo and ESC by 1 controlled PCB unit. But the new MR-03EVO Chassis Set has separate receiver as 1 product. By purchasing and installing an optional receiver device according to used transmitter, it allows for Kyosho (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO Propo (EX-2/EX-RR) and Futaba (T7PX/T7XC/T4PM) transmitters. Further, by setting up brand new CPU which control servo function just, it improves internal feedback of positioning control which can be 11.2 times quicker than existing VE PRO models. The newly developed control system understands the greatest ever steering feeling in the MINI-Z history. The ESC additionally improves the response rate in maximum 100 times faster than existing VE professional models. The newly developed KYOSHO SPEED HOUSE XSPEED 41 (4100KV) brushless engine features easy-to-drive power faculties and longer runtime. Unlike previous chassis sets, you can alter towards the brushed engine mode although the I.C.S manager to set up an optional brushed engine. The I.C.S supervisor also enables more precise setting adjustments become made. Brand new higher level performance features within the MR-03EVO take the MINI-Z racing experience to another location level!


  • Very first MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.
  • Includes new KYOSHO SPEED HOUSE XSPEED 41 brushless engine (4100KV).
  • I.C.S manager features detailed steering and throttle parameter modification, including switching between brushless and brushed modes.
  • Powered by independent CPUs for ESC and receiver, increased interior processing speed plays a role in precision steering and throttle control.
  • Equipped with ball bearings.
  • Newly designed separate receiver cover and front top arm mount render tread adjustment easier.
  • Appropriate for MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV) for the MR-03 chassis.

    • TECHNICAL INFORMATION

  • Length 117.7mm
  • Width 70~76mm
  • Height 35mm
  • Wheelbase 94.0mm (LL)
  • Tread F:61.5~63.0mm/R:61.5~63.0mm
  • Motor Mount MM2
  • Tires (F/R) φ25×8.5mm (sold individually)/φ25×8.511mm (offered separately)
  • Gear Ratio 7.36.35.54.9:1
  • Weight 135g (approx.)
  • Motor KYOSHO SPEED HOME / XSPEED 41 (4100KV)

    • KIT ARTICLES

  • MR-03N-MM2 Factory put together chassis with KYOSHO SPEED HOUSE XSPEED 4100KV brushless motor
  • Parts set for changing front side tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel nuts

    • REQUIRED FOR OPERATION

  • Receiver unit
  • Transmitter appropriate for receiver unit
  • Auto Scale Collection (human anatomy set, tires, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
    •
