Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV) KYOSHO京商車套裝   [KY-32797]

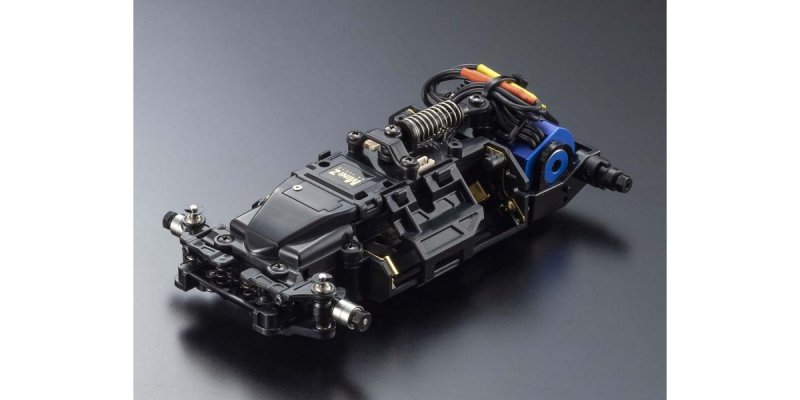

Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)
價格:
HKD$1,410.35
牌子:
Kyosho
型號:
KY-32797
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - On-Road - Mini-Z
類別中嘗試尋找類似的產品
填寫評論
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
First released in December 2018 the MR-03EVO series delivered amazingly fast processing speed and featured a different receiver board that provided the flexibleness of transmitter option. Two years as a result of its stunning debut, the MR-03 EVO lineup is strengthened with a race-based chassis. As yet the speed range environment was KV8500 for wide chassis, however it was paid off an amount to KV5600. While retaining the full bearing specifications and Ball Diff Set II, align the bottom chassis with all the brand new standard rate range and start a wider band of users. Through the appropriate receiver units : RA-40 (EX-6R / EX-II / EX-RR); RA-41 (KT-531P / KT-432PT); RA-42 (Futaba T7PX / T7XC / T4PM), and RA-43 (Flysky Noble NB4), the RA-41 provides the optimal step-up through the Readyset. Possibly the MR-03EVO chassis set’s best benefit is that it's also coupled with a brushed engine (No.MZ9E, sold individually) to adjust to a straight wider array of driving conditions.

●First MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.
●Includes brand new KYOSHO SPEED HOME XSPEED 56 brushless motor (5600KV).
●I.C.S manager features detailed steering and throttle parameter adjustment, also switching between brushless and brushed modes.
●Powered by independent CPUs for ESC and receiver, increased internal processing rate plays a role in precision steering and throttle control.
●Equipped with ball bearings and Ball Diff Set II. ＊Newly created separate receiver address and front top arm mount make tread adjustment easier. ＊Compatible with MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV) the MR-03 chassis.

Based on the MR-03VE PRO framework, newly created separate receiver address and front top supply mount render tread modification easier.

Receiver product are in the pipeline for KYOSHO, KO, FUTABA and Flysky transmitters and that can be attached/detached by detatching receiver address from the upper framework.

New KYOSHO SPEED HOME brushless engine (5600KV) features a one-piece aluminum instance that realizes efficient heat dissipation.

Built with Ball Diff Set II that reduces fat of aluminum parts on the spur gear part and optimizes balance regarding the hub side. This really is a must-have product and it is utilized usually in competition-level race.

Comprehensive ball bearing requirements reduce drive loss.



TECHNICAL DATA

  • Length 123.5mm
  • Width 70~76mm
  • Height 35mm
  • Motor Mount MM
  • Wheelbase 98.0mm(L)
  • Tread F:61.5~65.0mm/R:61.5~65.0mm
  • Tires (F/R) 25x8.5mm (sold individually)/25x8.511mm (sold separately)
  • Gear Ratio 7.36.35.54.9:1
  • Weight 135g (approx.)
  • Motor KYOSHO SPEED HOME / XSPEED 56 (5600KV)


KIT CONTENT

  • MR-03EVO-W-MM Factory put together framework with KYOSHO SPEED HOME XSPEED 5600KV
  • Parts set for changing front side tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel peanuts


REQUIREMENT TO RUN

  • Receiver unit
  • Transmitter suitable for receiver unit
  • Auto Scale Collection (body set, tires, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
