Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV) KYOSHO京商車套裝   [KY-32798]

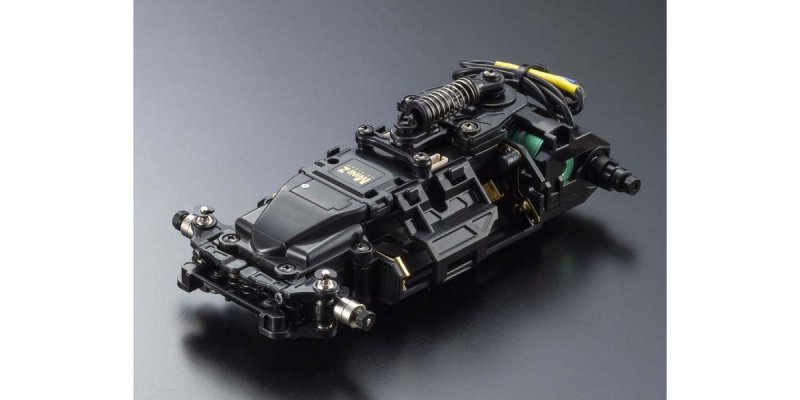

Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)
價格:
HKD$1,199.18
牌子:
Kyosho
型號:
KY-32798
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - On-Road - Mini-Z
類別中嘗試尋找類似的產品
填寫評論
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
First released in December 2018 the MR-03EVO series delivered amazingly fast processing rate and featured a different receiver board that provided the flexibleness of transmitter option. Two years after its stunning first, the MR-03 EVO lineup is strengthened with a race-based chassis. So far the rate range setting had been KV5600 for wide framework, but it happens to be reduced a level to KV4100. While keeping the total bearing specs and Ball Diff Set II, align the bottom framework because of the brand new standard rate range and open a wider band of users. Through the appropriate receiver units : RA-40 (EX-6R / EX-II / EX-RR); RA-41 (KT-531P / KT-432PT); RA-42 (Futaba T7PX / T7XC / T4PM), and RA-43 (Flysky Noble NB4), the RA-41 provides the optimal step-up from Readyset. Probably the MR-03EVO framework set’s greatest advantage is the fact that it is also coupled with a brushed motor (No.MZ9E, offered individually) to conform to an even wider range of driving conditions.

●First MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.
●Includes new KYOSHO SPEED HOME XSPEED 41 brushless motor (4100KV).
●I.C.S manager features detail by detail steering and throttle parameter modification, as well as switching between brushless and brushed modes.
●Powered by independent CPUs for ESC and receiver, increased internal processing speed contributes to accuracy steering and throttle control.
●Equipped with ball bearings and Ball Diff Set II.
＊Newly designed split receiver cover and front top supply mount render tread adjustment easier. ＊Compatible with MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV) the MR-03 chassis.

Based on the MR-03VE PRO framework, newly designed split receiver address and front upper supply mount make tread adjustment easier.

Receiver product are prepared for KYOSHO, KO, FUTABA and Flysky transmitters and that can be attached/detached by eliminating receiver cover from the upper chassis.

Brand new KYOSHO SPEED HOUSE brushless engine XSPEED 41(4100KV) features a one-piece aluminum instance that realizes efficient temperature dissipation.

Loaded with Ball Diff Set II that reduces weight of aluminum parts on spur gear side and optimizes balance on hub part. This might be a must-have item and it is used usually in competition-level race.

Complete ball bearing specifications minmise drive loss.



TECHNICAL DATA

  • Length 119.5mm
  • Width 70~76mm
  • Height 38mm
  • Motor Mount MM2
  • Wheelbase 94.0mm (L)
  • Tread F:61.5~65.0mm/R:61.5~65.0mm
  • Tires (F/R) 25x8.5mm (sold separately)/25x8.511mm (sold separately)
  • Gear Ratio 7.36.35.54.9:1
  • Weight 135g (Body / tires / tires perhaps not included, battery pack included.)
  • Motor KYOSHO SPEED HOME 4100KV


KIT CONTENT

  • MR-03W-MM2 Factory put together chassis with KYOSHO SPEED HOUSE KV4100 brushless motor
  • Parts set for changing front tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel nuts


REQUIREMENT TO PERFORM

  • Receiver unit
  • Transmitter appropriate for receiver unit
  • Auto Scale Collection (human anatomy set, tires, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
