Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV) KYOSHO京商車套裝  [KY-32891]

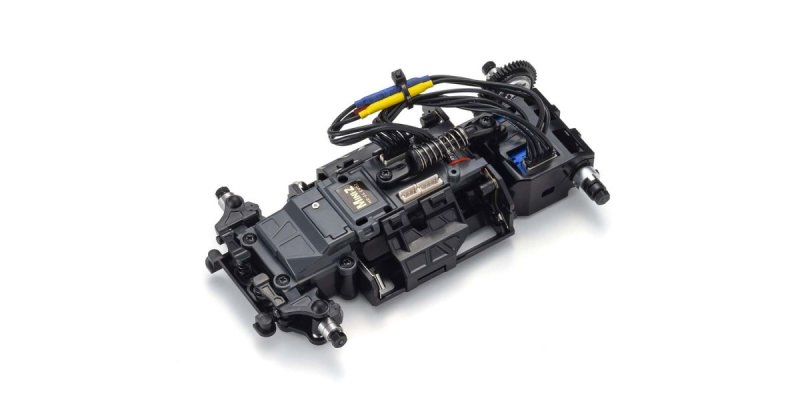

Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV)
價格:
HKD$1,616.37
牌子:
Kyosho
型號:
KY-32891
GTIN:
4548565458707
物品狀況:
全新
店內有存貨
填寫評論
alt="Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV)" title="Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV)"
alt="Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV)" title="Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV)"
alt="Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV)" title="Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV)"
alt="Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV)" title="Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV)"
alt="Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV)" title="Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV)"
alt="Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV)" title="Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV)"
alt="Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV)" title="Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV)"

- While keeping components of the wonderful MR-03 layout, the new MR-04EVO2 chassis achieves significant performance improvements with changes towards the front suspension system and a lower life expectancy C of G that work in synergy with a sensored brushless motor. Both narrow and wide tread settings are available by changing the reduced and upper dishes regarding front as well as the steering tie pole. Adjustable wheelbase permits framework establishing in accordance with physique.

- While camber angle is optimized during cornering with all the swing of the current top arm design, leading suspension system uses the brand new kingpin-integrated knuckle to further improve camber security. Geometric modification of caster and trail etc. delivers more linear maneuverability. New spec front side springs for the MR-04 with various hardness are available as options.

- Front knuckle design features integrated kingpin with optimized approval aided by the kingpin ball for smoother operation. Ball bearings are changed to 3mm interior diameter for reduced rotational opposition.

- All 7 ball bearings are 3mm internal diameter for reduced rotational opposition to attenuate friction loss.

- New potentiometer provides accuracy and durability with an entirely redesigned steering program to appreciate the greatest response and accuracy inside history of the MINI-Z. The greater precise steering control program permits various settings utilizing the MR-04’s exclusive I.C.S. software.

- Ball differential included as standard optimizes the rotational differences when considering left and right rear tires when turning. Also provides moderate slide action to improve traction whenever extortionate load is applied. Silver clear anodized finish to aluminum parts creates a formidable style to match performance.

- This new device additionally supports high-speed communication with various high-end transmitters and receivers to realize unprecedented control response. Achieves transmission rates of 0.99ms with KO units (ADV mode) and 0.9ms with Futaba units (EVO2 mode). *Previously 2.6ms ~ 3.0ms



TECHNICAL DATA

  • Length 124.5mm
  • Width 72-76mm
  • Height 31mm
  • Motor Mount MM
  • Wheelbase 98.0mm (LL)
  • Tread(F/R)63.5-65.0mm/61.5-65.0mm
  • Gear Ratio 7.3/6.3/5.5/4.9:1
  • Weight 135.5g (Body / tires / wheels perhaps not included.)
  • Motor KYOSHO SPEED HOUSE XSPEED 56 (KV5600)


KIT CONTENT

  • MR-04 EVO2-W-MM Factory assembled framework with KYOSHO SPEED HOUSE KV5600 brushless motor
  • Parts set for changing front tread
  • 6T/7T/8T/9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel nuts


REQUIREMENT TO RUN

  • Transmitter
  • Receiver device (suitable for EVO/EVO2)
  • ASC
  • AAA x 4 batteries for chassis
  • Batteries for transmitter
