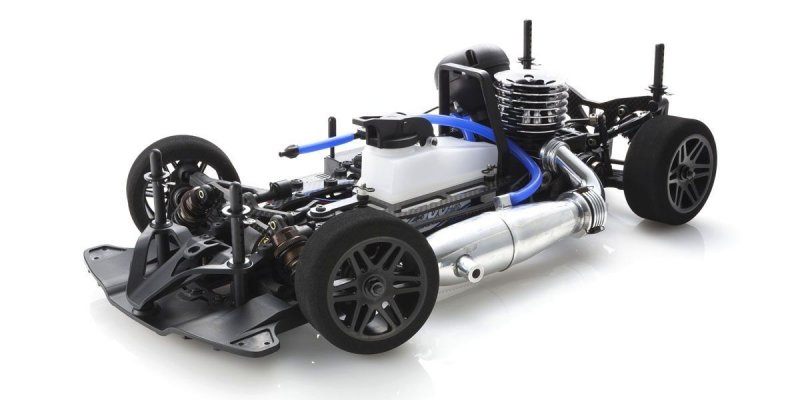

Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2 KYOSHO京商平路車  [KY-33211]

Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2
價格:
HKD$0.00
牌子:
Kyosho
型號:
KY-33211
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - On-Road - Touring Cars - Nitro Powered
類別中嘗試尋找類似的產品
填寫評論
alt="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2" title="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2"
alt="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2" title="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2"
alt="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2" title="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2"
alt="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2" title="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2"
alt="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2" title="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2"
alt="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2" title="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2"
alt="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2" title="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2"
alt="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2" title="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2"
alt="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2" title="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2"
alt="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2" title="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2"
alt="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2" title="Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2"
The V-ONE R4 series has a reputation constructed on proven performance in major races in Japan and throughout the world. Since its release, the V-ONE R4 has maintained its racing advantage through continuous enhancement and today takes an evolutionary step with all the brand new Evo.2. In line with the previous Evo. platform, key elements such as the primary chassis and upper deck have been redesigned in new V-ONE R4 Evo.2 for optimal rigidity and superior performance with modern high-power machines. Increased mechanical hold is achieved independent of tire grip and complies with competition laws with controlled tires. The V-ONE R4 series is renowned for its low center of gravity, which will be further enhanced by quick oil shocks that deliver increased cornering rate on high-grip surfaces while preventing highside. Improvements toward clutch and braking system rotor are further improvements within the R4 Evo.2, which makes it an ideal machine to experience superior racing in activities for instance the Sports Class during the 2018 JMRCA 1/10 Engine Touring automobile nationwide Championship.

●Evo.2 features improvements to key elements while keeping the very best of the V-ONE R4 Evo.
●Newly designed main framework and upper deck deliver even greater technical hold.
●New braking system rotor included as standard improves driving feel at low speed.
●Front universal swing shafts enhance drive effectiveness and expel risk of drive shafts coming loose.
●Hook pin guaranteed gas tank is effortlessly eliminated and set up.
●Equipped with front knuckle and rear hub which can be fitted with optional carbon disk.
●Compatible with almost all existing optional components.

Retains the very best of the V-ONE R4 Evo. with improvements through the redesign of critical components. Steering post revised for optimal Ackerman ratio and improved cornering speed.

Grooved main chassis further increases technical hold and combines with newly created top deck to create ideal roll and pitching rigidity.

Shorter oil shocks on front side and backside realize reduced center of gravity to boost cornering rate. Shock springs may also be included as standard and tend to be optimized to be used with sponge tires.

Special 3D rushing clutch for the Evo.2 maximizez engine performance. Revised clutch shoe material with tiny diameter flyweel realize both improved throttle reaction and upper end speed.

Aerodynamic 3D design front side bumper increases cornering stability and enables high rate cornering performance.

Compact radio box protects the receiver and wiring from crash damage and fuel splashes during refueling.


TECHNICAL DATA

  • Length 368mm
  • Width 200mm
  • Height 105mm
  • Wheelbase 258mm
  • Tread (F/R) 174mm/170mm
  • Tires (F/R) offered separately
  • Gear Ratio 7.18/5.09 : 1
  • Weight 1,700g (approx.)
  • Engine 12-15 Class (sold separately)


KIT CONTENT

  • Unassembled framework kit
  • Steering servo horn suitable for major brand R/C systems
  • 5.0mm L-shape hex wrench
  • Cross wrench (small)


REQUIREMENT TO RUN

  • 2ch-3ch R/C car transmitter
  • Receiver
  • Servos x 2
  • Switch
  • Batteries for transmitter
  • Batteries for receiver (flat pack)
  • 12-15 class motor with rear exiting exhaust
  • Manifold
  • Muffler
  • Glow fuel (for R/C models)
  • Engine beginning gear (starter field, gas container, plug heater)
  • 200mm width touring car body
  • Paint for car body
  • Wheels and tires
  • Tools
  • Instant glue
