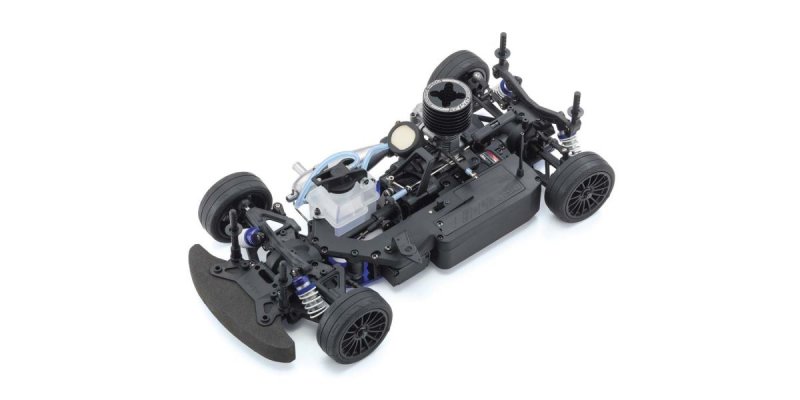

Kyosho 33216 - 1:10 Scale Radio Controlled .15 Engine Powered 4WD Touring Car FW-06 Chassis Kit KYOSHO京商平路車   [KY-33216]

Loaded with KE15SP engine with slide carburetor fitted with sluggish idle modification.

Double wishbone suspension with adjustable camber and toe angles.

Machined aluminum oil shocks with dial for stepless stress and height adjustment to appreciate stable operating performance.

2-speed automatic transmission included as standard makes effective use of the engine's energy band. Durable shaft-driven 4WD chassis may be enjoyed a wide range of areas.

Turnbuckle tie-rods useful for steering pole and back upper arms for fully adjustable alignment.

Universal swing shafts increase dependability of front drive.

TECHNICAL DATA

• Length 375mm
• Width 200mm
• Wheelbase 258mm
• Tread (F/R) 176mm
• Tire(F/R) 66x25mm
• Gear Ratio 7.47 / 5.44:1
• Weight 1,800g (approx.)
• Engine KE15SP with recoil starter
• Max Speed 64Km(approx.)

• chassis kit
• FAT701M TC Tire (M)&Inner spongeVZH003BK Wheel(perhaps not glued)
• Pre-mounted KE15SP engine with recoil starter
• Setting modification parts
• 1.5mm/2.0mm/2.5mm/5.0mm Hex wrench
• Cross wrench
• 3/4/5/5.5/7/8mm Spanner

REQUIREMENT TO RUN

• 2ch R/C automobile transmitter
• Body
• Servos x 2
• 4 x AA sized alkaline batteries for receiver and Battery Holder or Battery
• 4 x AA sized alkaline batteries for transmitter
• Switch
• Silicon oil for Shock
• Silicon oil for diff
• Grease
• GP Starting Tool Set
• Fuel Bottle
• Glow Fuel
• Tool
