Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver KYOSHO京商平路車  [KY-34416T1]

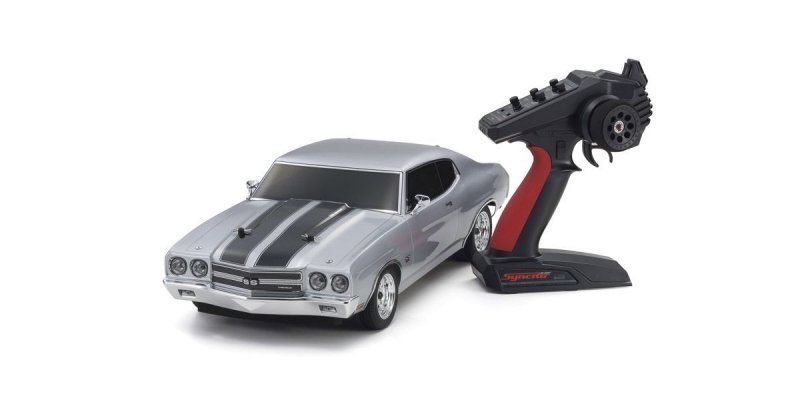

Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver
價格:
HKD$0.00
牌子:
Kyosho
型號:
KY-34416T1
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - On-Road - Touring Cars - Electric Powered
類別中嘗試尋找類似的產品
填寫評論
alt="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver" title="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver"
alt="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver" title="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver"
alt="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver" title="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver"
alt="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver" title="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver"
alt="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver" title="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver"
alt="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver" title="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver"
alt="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver" title="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver"
alt="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver" title="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver"
alt="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver" title="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver"
alt="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver" title="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver"
alt="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver" title="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver"
alt="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver" title="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver"
alt="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver" title="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver"
alt="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver" title="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver"
alt="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver" title="Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver"

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced automobile human body with the FAZER series chassis can’t be beaten. Kyosho has had its standard touring automobile framework and given it the full model makeover which has evolved performance to a fresh degree. A simplified design with fewer parts has improved maintenance efficiency and reduced fat while core strength and rigidity happens to be increased through brand new materials and ribbing and stiffeners on front side and back. Besides, the symmetrical framework design synergizes exceptional front-rear stability through the suspension system with responsive control, regardless of energy source. Featuring slipper clutch, front & backside gear differentials, oil shocks and complete ball bearing specifications, the high durability and effect resistance allows motorists to unleash the full potential associated with chassis. Brake disk wheel hubs with two various offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and enables the wheelbase to be modified to 274mm by changing some components (offered separately) for compatibility with other 1/10 scale human body styles, also the body included. The Readyset package comes fully put together and includes every thing except charger and battery pack the framework, and batteries for the transmitter.



●“Ultra Scale Body” replicates the fine information on the human body of car. Kyosho took one step further in scale realism.
●New design shaft drive full-time 4WD touring chassis(FZ02).
●Factory-assembled Readyset package just requires 4 x AA alkaline batteries for the transmitter, and battery pack with charger the chassis.
●Equipped with 2-bevel grease-filled gear diffs on front and back.
●Large size dog bones and cup joints understand superior dependability and durability.
●Belt mounting battery compartment allows different battery kinds to be utilized.
●Full ball bearings that reduce drive loss equipped through the entire drive system.
●Features KS202W waterproof steering servo.
●Includes totally finished body with color scheme and decals used.
●Sealed differential and transmission deliver reliable performance, also on dusty parking lot surfaces.
●Performance can be further enhanced by setting up different optional parts.



Completely new framework realizes low center of gravity featuring its easy, functional design. Featuring a built-in gearbox that optimizes torsional rigidity of main framework, the nylon material reduces weight while enhancing impact resistance. Each key component was strengthened within easy design without upper deck.

Features a reduced quantity and variety of screws and components, and consolidation of frequently employed screws into the same size. Most screws are flat mind screws which can be eliminated with a 2.0mm hex wrench for simple disassembly.

Handling factors including bump steer and scrub radius are optimized on front suspension system. Simple ball-connected steering knuckle guarantees dependable control movement. Interchangeable on both front and rear left-right hub providers optimize extra parts utilization and enhance maintenance effectiveness.

Includes range of two offset braking system disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm human anatomy widths.

New design oil shocks mark an evolutionary intensify from past models Oil shock is newly created. Optimal front-rear geometry and stability simultaneously delivers both light handling and precise control. Built with long shock end enables a top ride height to pursue true scale look.

Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to create an array of gear ratio settings. This new fixed gear mesh engine mount has holes to be used with each different pinion gears. Simply just install the motor directly to the opening places corresponding on pinion gear. No gear mesh adjustment is essential.

Equipped with all the ‘LS6’ 7400cc V-type 8-cyclinder OHV engine that generated 450ps / 69.1kgm of maximum torque, the superior ‘SS’ model of Chevrolet’s popular Chevelle ended up being a force become reckoned with. The 1970 model was reproduced in 1/10 scale polycarbonate body featuring its signature 4 round headlights.

New design Vintage Touring automobile (VTC) tires & Rostyle kind wheels to fit classic vehicle style.

Comes with the newest effective 550 size 14T brushed motor(G14L). The long can with Steel ring round the engine case and interior cooling fan provides efficient torque and high speeds.

TECHNICAL DATA

  • Length 484mm
  • Width 195mm(Body width:210mm)
  • Wheelbase 274mm
  • Tread (F/R) F:167mm/R:167mm
  • Tires (F/R) F:φ64×27.7mm/R:φ64×27.7mm
  • Gear Ratio 6.54:1
  • Weight 1650g (approx.)
  • R/C system Syncro KT-231P+
  • Motor G14L


KIT CONTENT

  • Completed chassis with R/C radio installed
  • Factory put together human anatomy filled with color scheme
  • Syncro KT-231P+ transmitter
  • Installed 60A waterproof electronic speed controller (forward/brake/reverse)
  • +5mm off-set wheel hub (for 200mm width chassis), M4 x 22 wheel screw
  • Hexagonal wrench
  • Spanner


REQUIREMENT TO RUN

  • 4 x AA batteries for transmitter
  • Battery for chassis (suggested: 7.2V Ni-MH battery)
  • Charger for battery pack for chassis
  • Tools
