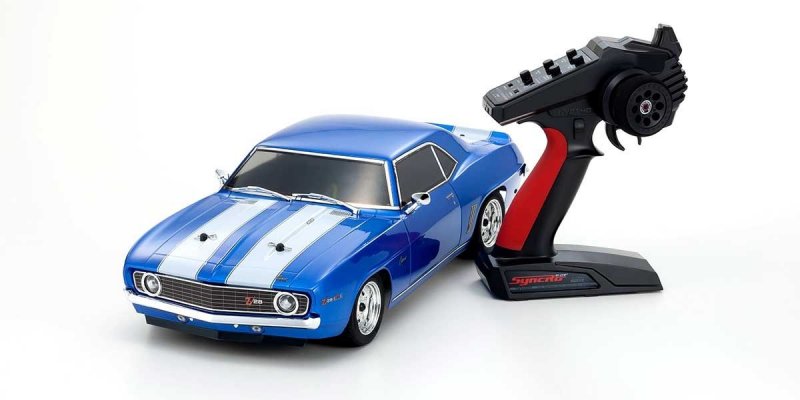

Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue KYOSHO京商平路車  [KY-34418T1]

Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue
價格:
HKD$0.00
牌子:
Kyosho
型號:
KY-34418T1
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - On-Road - Touring Cars - Electric Powered
類別中嘗試尋找類似的產品
填寫評論
alt="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue" title="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue"
alt="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue" title="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue"
alt="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue" title="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue"
alt="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue" title="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue"
alt="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue" title="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue"
alt="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue" title="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue"
alt="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue" title="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue"
alt="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue" title="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue"
alt="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue" title="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue"
alt="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue" title="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue"
alt="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue" title="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue"
alt="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue" title="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue"
alt="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue" title="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue"
alt="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue" title="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue"
alt="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue" title="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue"
alt="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue" title="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue"
alt="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue" title="Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue"

The pure enjoyment of R/C car driving, the combination of a beautifully reproduced automobile human body aided by the FAZER show chassis can’t be beaten. Kyosho has brought its standard touring car framework and given it a complete model makeover which includes developed performance to a brand new level. A simplified design with less components has improved upkeep efficiency and paid down weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and backside. Also, the symmetrical chassis design synergizes exceptional front-rear balance through the suspension system with responsive control, irrespective of energy source. Featuring slipper clutch, front & backside gear differentials, oil shocks and full ball bearing specifications, the high durability and impact opposition enables motorists to unleash the full potential associated with framework. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width human anatomy styles and enables the wheelbase to be adjusted to 260mm by replacing some components (offered separately) for compatibility with other 1/10 scale body designs, in addition the body included. The Readyset package comes completely assembled and includes everything except charger and battery pack the framework, and batteries for the transmitter.


●“Ultra Scale Body” replicates the fine details of the human body of vehicle. Kyosho took a step further in scale realism.
●New design shaft drive full-time 4WD touring chassis（FZ02）.
●Factory-assembled Readyset package just calls for 4 x AA alkaline batteries for the transmitter, and battery pack with charger for the chassis.
●Equipped with 2-bevel grease-filled gear diffs on front and rear.
●Large size dog bones and cup bones realize superior reliability and durability.
●Belt mounting battery pack compartment enables various battery types to be utilized.
●Full ball bearings that reduce drive loss prepared throughout the drive system.
●Features KS202W waterproof steering servo.
●Includes totally finished human body with color scheme and decals used.
●Sealed differential and transmission deliver dependable performance, even on dusty parking lot surfaces.
●Performance can be further enhanced by installing different optional parts.



Completely new framework realizes low center of gravity using its simple, practical design. Featuring an integral gearbox that optimizes torsional rigidity regarding the primary chassis, the nylon material reduces fat while enhancing effect resistance. Each key component happens to be strengthened within easy design without top deck.

Features a reduced quantity and selection of screws and components, and consolidation of frequently used screws into the same size. Many screws are flat head screws that may be eliminated with a 2.0mm hex wrench for effortless disassembly.

managing factors particularly bump steer and scrub radius are optimized on front suspension system. Simple ball-connected steering knuckle guarantees dependable control motion. Interchangeable on both front and back left-right hub providers optimize spare parts utilization and improve upkeep efficiency.

Includes choice of two offset brake disc wheel hubs with dummy calipers (for artistic styling) offering compatibility with 190mm and 200mm human body widths.

New design oil shocks mark an evolutionary step up from previous models Oil surprise is newly designed. Optimal front-rear geometry and stability simultaneously provides both light managing and exact control. Built with long surprise end permits a top ride height to pursue true scale look.

Standard spur and pinion gear environment is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to create a wide range of gear ratio settings. The newest fixed gear mesh motor mount has holes to be used with each various pinion gears. Just simply mount the engine right to the gap locations corresponding on pinion gear. No gear mesh modification is essential.

As the signature American activities coupe, the Chevrolet Camaro has maintained its popularity all over the world. Sold during 1967 to 1969, the Z/28 had been the highest specification in the 1st Camaro model. In addition to its long nose and quick deck proportions, the classic coke-bottle front and back fender lines are beautifully reproduced in 1/10 scale.

Brand new design Vintage Touring Car (VTC) tires & Rostyle type wheels to complement vintage car style.

Includes this new effective 550 size 14T brushed motor(G14L). The long will with Steel band across the motor instance and internal cooling fan provides efficient torque and high speeds.


TECHNICAL INFORMATION

  • Length 507mm
  • Width 195mm(Body width:210mm)
  • Wheelbase 260mm
  • Tread (F/R) F:167mm/R:167mm
  • Tires (F/R) F:φ64×27.7mm/R:φ64×27.7mm
  • Gear Ratio 6.54:1
  • Weight 1650g (approx.)
  • R/C system Syncro KT-231P+
  • Motor G14L


KIT CONTENT

  • Completed framework with R/C radio installed
  • Factory put together human anatomy filled with color scheme
  • Syncro KT-231P+ transmitter
  • Installed 60A waterproof electronic speed controller (forward/brake/reverse)
  • +5mm off-set wheel hub (for 200mm width framework), M4 x 22 wheel screw
  • Hexagonal wrench
  • Spanner


REQUIREMENT TO RUN

  • 4 x AA batteries for transmitter
  • Battery for framework (recommended: 7.2V Ni-MH battery)
  • Charger for battery pack for chassis
  • Tools
