The pure satisfaction of R/C automobile driving, the blend of a beautifully reproduced vehicle human body because of the FAZER show chassis can’t be beaten. Kyosho has had its standard touring car framework and trained with the full model makeover with developed performance to a new level. A simplified design with less parts has enhanced upkeep effectiveness and paid off weight while core strength and rigidity was increased through brand new materials and ribbing and stiffeners on front side and backside. Additionally, the symmetrical chassis design synergizes exceptional front-rear stability through suspension with responsive control, regardless of power supply. Featuring slipper clutch, front & rear gear differentials, oil shocks and complete ball bearing specs, the high durability and impact opposition allows drivers to unleash the full potential regarding the chassis. Brake disk wheel hubs with two various offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width human body styles and enables the wheelbase become modified to 260mm by replacing some components (sold individually) for compatibility along with other 1/10 scale human anatomy designs, additionally the body included. The Readyset package comes fully assembled and includes everything except charger and battery for the framework, and batteries the transmitter.
●“Ultra Scale Body” replicates the fine information on the human body associated with the car. Kyosho took a step further in scale realism.
●New design shaft drive full-time 4WD touring chassis（FZ02）.
●Factory-assembled Readyset package just calls for 4 x AA alkaline batteries the transmitter, and battery with charger for the framework.
●Equipped with 2-bevel grease-filled gear diffs on front and back.
●Large size dog bones and cup joints understand superior reliability and durability.
●Belt mounting battery compartment permits various battery kinds to be used.
●Full ball bearings that decrease drive loss equipped through the entire drive system.
●Features KS202W waterproof steering servo.
●Includes entirely finished human anatomy with color scheme and decals used.
●Sealed differential and transmission deliver reliable performance, also on dusty parking lot areas.
●Performance may be further improved by installing different optional components.
New framework realizes low center of gravity with its simple, practical design. Featuring an integrated gearbox that optimizes torsional rigidity of main framework, the nylon material reduces weight while increasing impact resistance. Each key component was reinforced within easy design without upper deck.
Features a diminished quantity and selection of screws and components, and consolidation of commonly used screws in to the exact same size. Many screws are flat mind screws that may be removed with a 2.0mm hex wrench for simple disassembly.
Handling factors such as for example bump steer and scrub radius are optimized on front suspension system. Simple ball-connected steering knuckle guarantees dependable control movement. Interchangeable on both front and rear left-right hub providers optimize free parts utilization and enhance upkeep efficiency.
Includes range of two offset braking system disc wheel hubs with dummy calipers (for visual styling) offering compatibility with 190mm and 200mm human anatomy widths.
Oil shocks mark an evolutionary step-up from previous models Oil surprise is newly designed. Optimal front-rear geometry and stability at the same time provides both light handling and precise control.
Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce an array of gear ratio settings. The latest fixed gear mesh engine mount has holes to be used with each various pinion gears. Simply install the motor directly to the hole locations corresponding towards pinion gear. No gear mesh modification is essential.

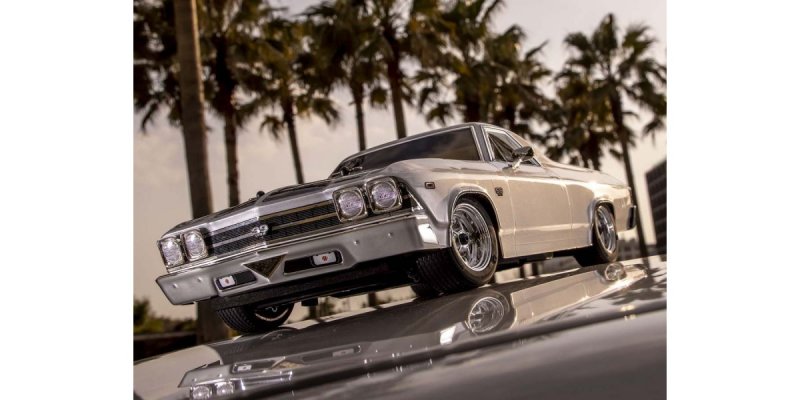

Proudly using America’s famous Chevrolet badge, the silver human anatomy regarding the 1969 model fuses power and sophisticated style in third generation with this distinctive coupe energy vehicle.
Vintage Touring Car (VTC) tires & Rostyle kind wheels to match vintage vehicle style.
Front and rear light buckets compatible with the separately sold 97054 LED light device series. By installing the Light-emitting Diode light unit, it transforms into a body high in genuine automobile feeling.
TECHNICAL INFORMATION
- Size 498mm
- Width (Body width * excluding mirror) 210mm
- Height 136mm
- Wheelbase 274mm
- Tread (F/R) 167mm
- Tires (F/R) 64x27.7mm
- Gear Ratio 6.54:1
- Weight 1650g (approx.)
- R/C system Syncro KT-231P+
- Motor G14L
KIT CONTENT
- 4 x AA batteries for transmitter
- Battery for framework (recommended: 7.2V Ni-MH battery)
- Charger for battery for chassis
- Tools
REQUIREMENT TO PERFORM
- 4 x AA batteries for transmitter
- Battery for chassis (suggested: 7.2V Ni-MH battery)
- Charger for battery pack for chassis
- Tools
