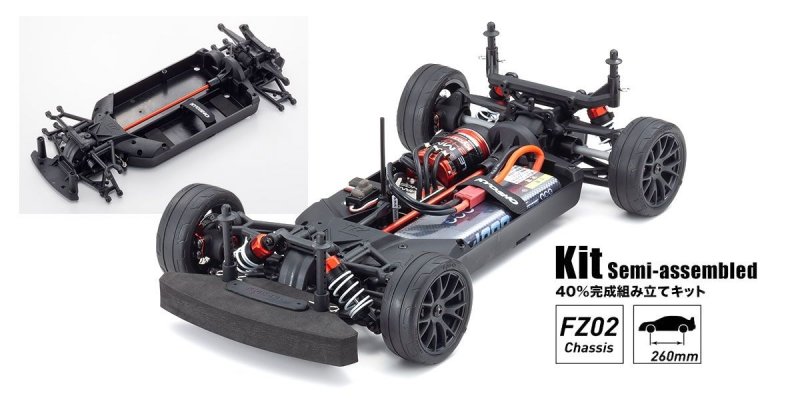

The FAZER Mk2 Readyset was created for the pure satisfaction of R/C automobile driving. Now available as a chassis kit, owners have the flexibleness to include their very own human body and R/C system. Specs were elevated with optional components like HD TC center shaft S and TC universal move shaft L to improve the unrivaled symmetrical design and front-rear suspension balance regarding the lightweight chassis for R/C racers to savor. Whilst the deckless design looks simple, a diminished amount of components improves maintenance efficiency and optimizes torsional rigidity. Incorporation of nylon product further reduces weight and improves effect opposition. Using its unique design, the FZ02 chassis embodies features and performance that may interest R/C drivers of all levels.
40per cent pre-assembled (shocks and diff gears aren't filled with oil so installation are completed to preferred setting). The FZ02’s effective low center of gravity design compliments the high energy and rigidity recognized through front & rear stiffeners and rib reinforcement at key chapters of the framework.
Duralumin HD TC center shaft S (FAW209) provides increased rigidity compared to the standard resin shaft contained in the Readyset. As well as smoother driving transmission, the red anodized color has striking looks. Included aluminum dish protects the engine from dirt and provides effective heat dissipation, particularly into the temperature of summer racing.
TC Universal swing shafts L (FAW202) on the front drive section don’t fall out on hefty contact like dog bone tissue shafts. Also, the move shafts deliver constant drive transmission even when joint reaches an extensive steering angle.
A particular resin transponder mounting stay is included for as soon as the chassis is competing in competition events. There is no need to make a handmade stay or holes in the human body to match a transponder.
Included body mounts enable figures from various manufacturers become fitted. Besides, two various brake-disk wheel hubs allow 190mm and 200mm chassis width settings for compatibility with various human body types.
Oil shocks and springs optimize the front-rear geometric balance, delivering both light handling and accurate control. (Silicone oil the shocks is sold separately)
Bump steer and scrub radius, the two facets utilizing the best impact on control, have been optimized in the front suspension. Interchangeable front-rear and left-right hub providers improve parts effectiveness and upkeep.
Included original low-profile semi-slick pattern FAT701M TC Tire (M), inner sponge and FAH701BK Wheel (unglued), that offer superior performance.
Designed with Front and back light buckets suitable for optional 97054 LED Light device which is offered individually.
By installing the Light-emitting Diode light device, improves scale realism for human body shell.
TECHNICAL INFORMATION
- Length (Body Length) 375mm(464mm)
- Width(Body Width) 200mm /190mm(207mm)
- Ground approval 8mm (approx.)
- Wheelbase 260mm
- Tread(Body width:190mm)F:164mm/R:164mm
- Tread(Body width:200mm)F:174mm/R:174mm
- Tires F: φ66mm x 25mm/R:φ66mm x 25mm
- Gear Ratio 6.54:1
- Total storage space fat Approx. 1,490g (with 7.4V4000 LiPo)
KIT CONTENT
- 40% pre-assembled chassis
- FAW202 TC Universal Swing Shaft S
- FAW209 HD TC Center Shaft S
- Aluminum Motor Dust Plate
- transponder mounting stay
- +0mm off-set wheel hub & M4 x 16 Wheel screw(for 190mm width human anatomy)
- +5mm off-set wheel hub & M4 x 22 Wheel screw(for 200mm width body)
- body mounts for different manufacturers bodies
- FAT701M TC Tires(M)
- Inner Sponge
- FAH701BK Wheel
- 1.5/2.0/2.5mm Hexagonal wrench
- 3/4/5/5.5/7/8mmSpanner
REQUIREMENT TO PERFORM
- 2ch 1 servo R/C system for cars(Receiver size:L45xW28xH22mm or less)*Recommended products No.82138/82151
- 540-550 course motor *Recommended items No.37031/37032
- ESC suitable for engine used(Size:L36xW32xH23mm or less)*Recommended products No.37051
- Survo *Recommended services and products No.82273
- Battery charger
- Battery for chassis compatible with ESC used(SIze:L145xW47xH25mm or less)*Recommended products No.GAB4201
- 4 x AA batteries for transmitter
- Damper Oil *Recommended items No.SIL0400-8
- Grease(for Ring Gear & Diff)*Recommended services and products No.96162
- Silicone OIL(for Diff)*Recommended items F:No.SIL50000/R:No. SIL3000
- Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless motor )
- Steel Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless engine )
- Paint for polycarbonate body
- Tools
