The FAZER Mk2 Readyset was made the pure satisfaction of R/C automobile driving. Available nowadays as a chassis kit, owners have the flexibleness to include their particular body and R/C system. Specifications were elevated with optional components like HD TC center shaft S and TC universal swing shaft L to boost the unrivaled symmetrical design and front-rear suspension stability of lightweight framework for R/C racers to take pleasure from. As the deckless design looks easy, a lower life expectancy amount of elements improves maintenance efficiency and optimizes torsional rigidity. Incorporation of nylon product further reduces weight and improves effect opposition. With its unique design, the FZ02 framework embodies features and performance which will appeal to R/C motorists of all of the amounts.

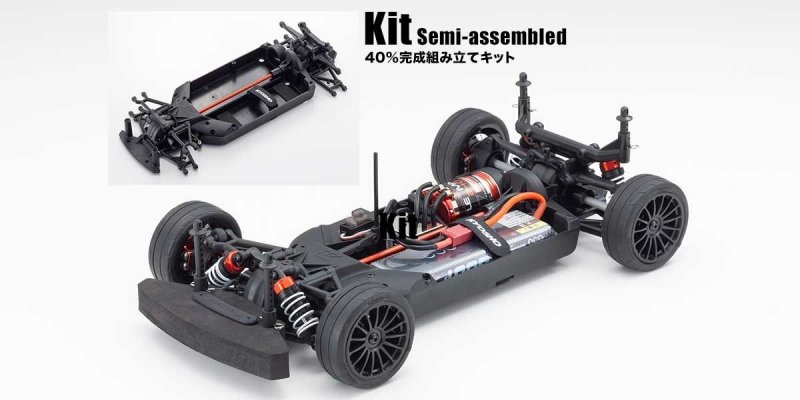

40% pre-assembled (shocks and diff gears are not filled up with oil so construction is completed to favored setting). The FZ02’s effective low center of gravity design compliments the high energy and rigidity recognized through front & back stiffeners and rib reinforcement at key parts of the chassis.
Duralumin HD TC center shaft S (FAW209) provides increased rigidity set alongside the standard resin shaft within the Readyset. Along with smoother driving transmission, the red anodized color has striking looks.
TC Universal swing shafts L (FAW202) regarding front drive part don’t drop on hefty contact like dog bone shafts. In addition, the swing shafts deliver constant drive transmission even though joint are at an extensive steering angle.
A unique resin transponder mounting stay is included for when the framework is contending in competition events. You don't have to help make a handmade stay or holes in the human body to fit a transponder.
Included body mounts enable figures from various manufacturers to be fitted. Additionally, two different brake-disk wheel hubs allow 190mm and 200mm chassis width settings for compatibility with different human anatomy kinds.
Included aluminum dish protects the motor from dust and offers effective heat dissipation, specially into the temperature of summer time racing.
Oil shocks and springs optimize the front-rear geometric balance, delivering both light managing and exact control. (Silicone oil the shocks comes individually)
Bump steer and scrub radius, both facets utilizing the greatest impact on handling, are optimized in the front suspension system. Interchangeable front-rear and left-right hub providers improve parts effectiveness and upkeep.
Original low-profile semi-slick pattern tires and internal sponge (FAT701M) match 15-spoke black wheels for enhanced rushing appeal.
TECHNICAL INFORMATION
- Length 375mm
- Width200mm/190mm
- Ground approval 8mm (approx.)
- Wheelbase 260mm
- Tread(Body width:190mm)F:164mm/R:164mm
- Tread(Body width:200mm)F:174mm/R:174mm
- Tires F: 66mm x 25mm/R:66mm x 25mm
- Gear Ratio 6.54:1
- Total storage weight Approx. 1490g (with 7.4V / 4000 LiPo)
KIT CONTENT
- 40percent pre-assembled chassis
- FAW202 TC Universal Swing Shaft S
- FAW209 HD TC Center Shaft S
- Aluminum engine Dust Plate
- transponder mounting stay
- +0mm off-set wheel hub & M4 x 16 Wheel screw(for 190mm width body)
- +5mm off-set wheel hub & M4 x 22 Wheel screw(for 200mm width human anatomy)
- human anatomy mounts for different manufacturers bodies
- FAT701M TC Tires(M)
- Inner Sponge
- VZH003BK Wheel
- 1.5/2.0/2.5mm Hexagonal wrench
- 3/4/5/5.5/7/8mmSpanner
REQUIREMENT TO OPERATE
- 2ch 1 servo R/C system for cars(Receiver size:L45xW28xH22mm or less)*Recommended items No.82138/82151
- human body
- 540-550 course motor *Recommended services and products No.37031/37032
- ESC suitable for motor used(Size:L36xW32xH23mm or less)*Recommended items No.37051
- Survo *Recommended items No.82273
- Battery charger
- Battery for chassis appropriate for ESC used(SIze:L145xW47xH25mm or less)*Recommended items No.GAB4201
- 4 x AA batteries for transmitter
- Damper Oil *Recommended services and products No.SIL0400-8
- Grease(for Ring Gear & Diff)*Recommended services and products No.96162
- Silicone OIL(for Diff)*Recommended services and products F:No.SIL50000/R:No. SIL3000
- Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless motor )
- metal Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless motor )
- Paint for polycarbonate human anatomy
- Tools
