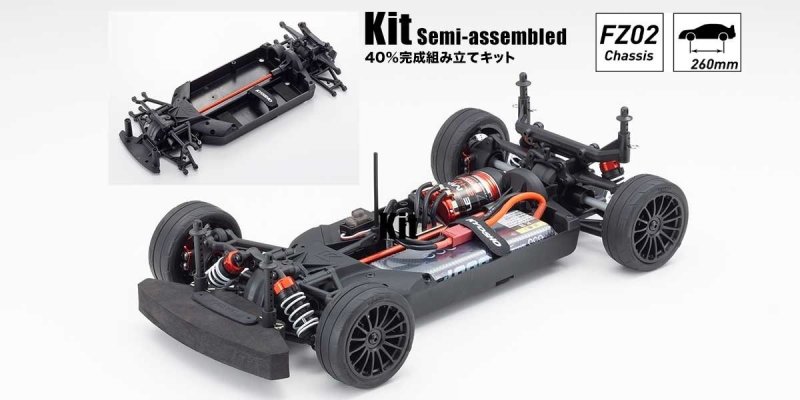

The FAZER Mk2 Readyset was made the pure enjoyment of R/C vehicle driving. Available these days as a chassis kit, owners have actually the flexibility to add their particular human body and R/C system. Specs have now been elevated with optional parts such as for example HD TC center shaft S and TC universal move shaft L to improve the unrivaled symmetrical design and front-rear suspension system stability associated with the lightweight chassis for R/C racers to enjoy. Although the deckless design appears easy, a reduced amount of elements improves maintenance efficiency and optimizes torsional rigidity. Incorporation of nylon material further reduces fat and improves effect resistance. Using its unique design, the FZ02 framework embodies features and gratification that may appeal to R/C drivers of all levels.
40per cent pre-assembled (shocks and diff gears aren't filled with oil so assembly may be finished to favored environment). The FZ02’s effective low center of gravity design compliments the high energy and rigidity recognized through front & rear stiffeners and rib reinforcement at key chapters of the chassis.
Duralumin HD TC center shaft S (FAW209) provides increased rigidity set alongside the standard resin shaft within the Readyset. In addition to smoother driving transmission, the red anodized color has striking overall look.
TC Universal swing shafts L (FAW202) in the front drive section don’t fall out on heavy contact like dog bone shafts. Besides, the swing shafts deliver constant drive transmission even when joint reaches an extensive steering angle.
A unique resin transponder mounting stay is roofed for if the chassis is competing in competition occasions. You don't have to produce a handmade stay or holes in the human body to suit a transponder.
Included body mounts enable bodies from different manufacturers to be fitted. Also, two various brake-disk wheel hubs allow 190mm and 200mm framework width settings for compatibility with different human anatomy kinds.
Included aluminum dish protects the motor from dirt and offers effective temperature dissipation, specially within the temperature of summer time race.
Oil shocks and springs optimize the front-rear geometric balance, delivering both light handling and accurate control. (Silicone oil the shocks is sold individually)
Bump steer and scrub radius, the two facets because of the greatest impact on management, have now been optimized on front suspension. Interchangeable front-rear and left-right hub companies improve parts effectiveness and maintenance.
Original low-profile semi-slick pattern tires and inner sponge (FAT701M) match 15-spoke black colored wheels for enhanced racing appeal.
TECHNICAL DATA
- Length 375mm
- Width200mm/190mm
- Ground clearance 8mm (approx.)
- Wheelbase 260mm
- Tread(Body width:190mm)F:164mm/R:164mm
- Tread(Body width:200mm)F:174mm/R:174mm
- Tires F: ?66mm x 25mm/R:?66mm x 25mm
- Gear Ratio 6.54:1
- Total storage space fat Approx. 1490g (with 7.4V / 4000 LiPo)
KIT CONTENT
- 40% pre-assembled chassis
- FAW202 TC Universal Swing Shaft S
- FAW209 HD TC Center Shaft S
- Aluminum Motor Dust Plate
- Transponder mounting stay
- +0mm off-set wheel hub & M4 x 16 Wheel screw(for 190mm width human anatomy)
- +5mm off-set wheel hub & M4 x 22 Wheel screw(for 200mm width human anatomy)
- Body mounts for different manufacturers bodies
- FAT701M TC Tires(M)
- Inner Sponge
- VZH003BK Wheel
- 1.5/2.0/2.5mm Hexagonal wrench
- 3/4/5/5.5/7/8mmSpanner
REQUIREMENT TO PERFORM
- 2ch 1 servo R/C system for cars(Receiver size:L45xW28xH22mm or less)*Recommended products No.82138/82151
- 540-550 class engine *Recommended products No.37031/37032
- ESC compatible with engine used(Size:L36xW32xH23mm or less)*Recommended items No.37051
- Survo *Recommended services and products No.82273
- Battery charger
- Battery for chassis suitable for ESC used(SIze:L145xW47xH25mm or less)*Recommended services and products No.GAB4201
- 4 x AA batteries for transmitter
- Damper Oil *Recommended items No.SIL0400-8
- Grease(for Ring Gear & Diff)*Recommended products No.96162
- Silicone OIL(for Diff)*Recommended items F:No.SIL50000/R:No. SIL3000
- Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless motor )
- Steel Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless motor )
- Paint for polycarbonate body
