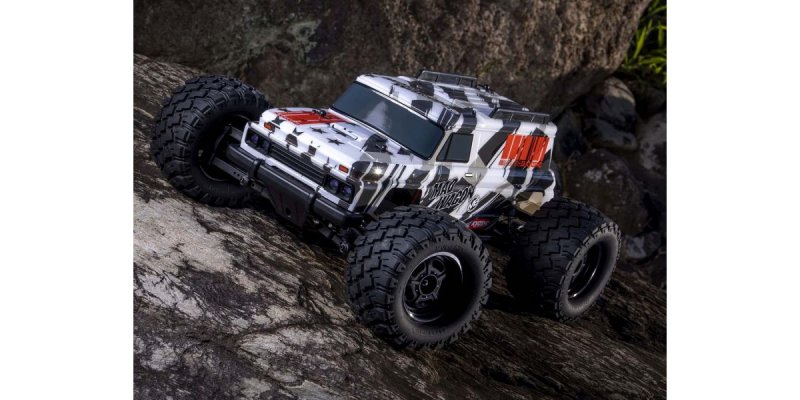

The Monster Truck, otherwise called the ‘Basher’ category, has grown in popularity over many generations. With a pickup truck body mounted on a hardcore framework and big diameter tires, monster trucks including R/C model variations, are made to go between the badlands to arena courses. Now the Mad Wagon VE sets an original style on a brute R/C device! The completely new KB10 4WD framework design works with 3S (11.1V) high-power lithium polymer (LiPo) batteries and features a newly developed brushless motor and speed controller as standard. Delivering an optimal balance of high-speed and energy, the aluminum primary framework associated with the KB10 combines front/rear blocks including a split framework and double wishbone suspension system to drive the all-terrain 2.8” wheels and tires. Whilst the tire size is suitable for standard wheels, you can vary requirements to suit the kind of road area and conditions. Furthermore, drivetrain components are shared with the 1/8 scale Inferno NEO ST 3.0, supplying plenty of convenience of a 1/10 scale machine. The original 1980’s design van human anatomy design is manufactured in ‘Ultra Scale’ realism. While the human anatomy included in the kit is pre-painted, you could create your very own custom human body coloring design with an obvious human body also elevating the realism because of the optional Light-emitting Diode light product (No.97054-4B). The Mad Wagon VE is packed as a pre-assembled Readyset and needs only batteries the framework and charger to get ready to go. An array of optional components can be found to expand and expand your enjoyment of the R/C automobile pastime.
● Readyset includes pre-assembled framework, painted body, and RC system with pistol grip Syncro KT-231P + transmitter
●Features powerful brushless engine device that reaches a maximum speed of 75km/h. RC system normally pre-installed
●contains initial design wagon-type body. There Are Two Main color variations, and an obvious human anatomy normally available as a choice.
● Newly created framework includes a shaft-type 4WD with a proven double wishbone suspension to supply exemplary driving performance.
●Fully equipped with (22) ball bearings as standard specification for superior drive effectiveness.
● Equipped with lightweight resin telescopic universal shafts on all wheels to cut back drive loss and avoid drive shaft drop outs connected.
●Kit includes newly created 2.8 inch tires and tires. Standard specification 1/10 scale 2.8 inches tires and wheels can also be installed
● an array of gear ratios can be selected by changing the standard gears within the kit. And also this supports on-road driving
●Rear for the machine is equipped with wheelie bar that stops the truck from flipping from sudden acceleration
● Motor battery pack, charger, and 4 x AA batteries for transmitter can be purchased separately.
As unique gift for first release, a 2.0mm Hex motorist because of the "KB10" logo design, which will be perfect for upkeep, and a big cross wrench are included.
Aluminum main chassis combines aided by the superior pitch rigidity of this straight resin frame to create a high-strength structure that delivers optimal stability of high rigidity and suppleness.
Centered on 1980’s period van styling, this newly designed human anatomy is made from durable polycarbonate and finished with paint scheme and decals used. A separately molded grille and light components improve the realism with this “Ultra Scale Body”.
Includes newly developed TORX 10L brushless engine. With 38mm diameter and long 68mm specifications, the motor creates 2850Kv (rotations per volt) and efficiently converts energy from the 3S LiPo battery pack into speed and torque.
Built with BRAINZ 10+ waterproof ESC (speed controller) that boasts 80A capacity. Top mounted air conditioning fan manages temperature generation to cut back power loss despite having extensive running times.
Features the KS5031-91MW servo with 9kg / cm of torque and all-metal gears, promises reliable steering control.
Features battery pack holder suited to mounting 3S LiPo battery. By offsetting the remaining part mount associated with the battery pack, left-right weight stability can be set on driver’s preference.Also appropriate for 2S LiPo battery.
Newly designed oil shocks on front side and rear suspension deliver smooth shock absorber function. Change suspension system settings by setting up optional springs to match a wide range of operating conditions and surfaces.
Features the 4-bevel differential gear through the Inferno NEO ST 3.0 1/8 scale buggy. With more than sufficient capability to manage the high-power drive unit, the style additionally allows effortless diff gear replacement superior upkeep efficiency.
Newly created slipper clutch efficiently protects the drive system from exorbitant energy lots. Aluminum shoe delivers optimal slide faculties and improved acceleration.
TECHNICAL INFORMATION
- Length 472mm
- Width 350mm
- Height 198mm
- Wheelbase 295mm
- Tread F/R 278mm
- Tires(F & R) 128 x 70mm
- Gear Ratio 15.22:1
- Weight 3,610g (approx.)
- Motor TORX10L Brushless Engine kv2850
KIT CONTENT
- Factory assembled chassis complete with control linkages
- Pre-cut and painted human anatomy filled with decals applied
- 2.4GHz Syncro KT-231P+ transmitter
- 1.5mm/2.0mm/2.5mm L shaped hex wrench
- Cross wrench
- 4/5/5.5/7/10mm built-in spanner
REQUIREMENT TO OPERATE
- AA-size batteries x 4 for transmitter
- Battery for driving (2-3S LiPo battery pack *Installable battery pack size 143x47x30mm)
- Charger for LiPo battery
