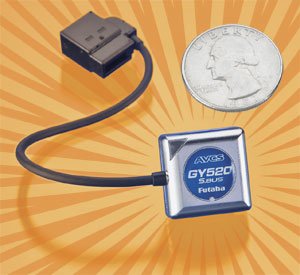

Futaba GY520 Gyro 富他巴   [GY520]

FEATURES:

• Ultra small and light weight gyro found in one unit-no separate sensor and control product
• Makes use of a higher rate advanced PID (Proportional-Integral-Derivative) control algorithm current MEMS (Micro-Electro-Mechanical Systems) allows complete control system using one chip
• Delivers superior performance with analog servos and excels with electronic servos
• F3C and 3D mode selectable, six programmable parameters
• Functions at very high speed; 280Hz in the 1520uS mode and 506Hz inside 760uS mode
• Programmable through solitary switch and multi-color Light-emitting Diode or through a Computer utilizing Futaba
• CIU-2 USB adapter
• Registered AVCS (Angular Velocity Control System) architecture achieves unmatched tail holding capability

INCLUDES: Futaba GY520 Heading Hold Gyro, guide, one each 13" (330mm) lead with red connectors and lead with black colored connectors two parts of sensor tape, mini screwdriver and guide

NEEDS:

Digital or analog servos

SPECS:

• Size: 0.82 x 0.82 x 0.43" (20.8 x 20.8 x 11mm)
• Voltage Range: 3.8 - 6.0V DC
• Control System: Advanced PID control
• Current Draw: 40mA (without servo)
• Sensor: MEMS vibrating structure gyro
• Operating Temperature: 14?FXF - 113?FXF (-10?FXC - +45?FXC)
• Sensor speed number: +/- 800?FX sec
• Angular Velocity number: +- 800 deg/sec
