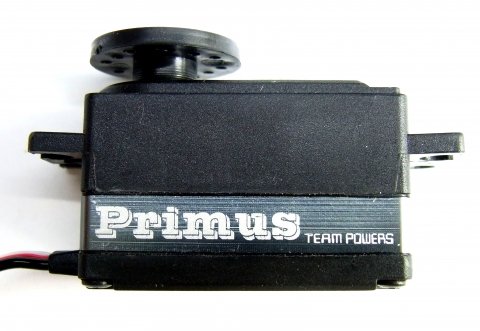

Team Powers Low Profile  [TP-DS0906L-V2]

Specs:

Storage Temperature Number: -20℃～60℃
Running Temperature Number: 0℃～50℃
Operating Voltage Range: 4.8V~6.0V
Gear Material: Titanium steel gear
Body weight: ~45g

Dimension: 40.6mm (L) x 25.3mm(W) x 20mm(H)
Stall Torque: 7.0 kg-cm @4.8V, 9.0kg-cm@6V
Operating Speed(with no load): 0.07 sec/60°@4.8V, 0.06 sec/60°@6V
Dead band width: ~4 μsec

Usage/Warning Notes:

-Vibration whenever running may harm the servo. So that you can lessen the vibration, its
simpler to make use of the supplied rubber grommet to install the servo on technical plates.
-Make certain to link the servo lead connector toward receiver correctly. Improper
connection will allow the servo perhaps not function or it might burn the circuit board within the
servo.
-Make certain the power line is connected tightly toward receiver. Otherwise, the loose
connection can lead to the servo unmanageable.
-Do perhaps not turn the servo horn forcibly inside power on status. Otherwise, it may harm
the apparatus component inside the servo.
-Do not use in the rainfall or in a spot where the water can get on it. The servo can be from
control when it becomes damp.
