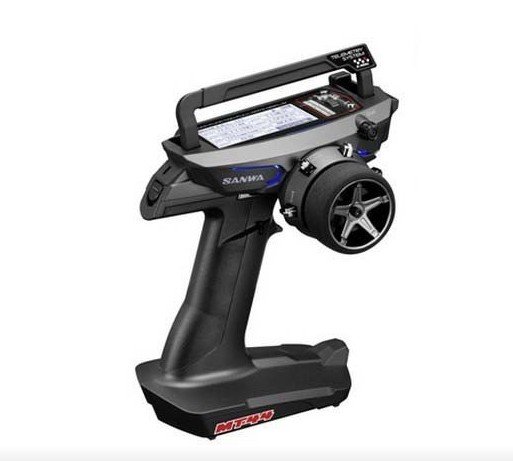

Sanwa MT-44 - 4-Channel 2.4G Transmitter With RX481 and RX482 Receiver  [SW-MT-44-812B]

Beyond Middle Income Radios, The MT-44 Transmitter

• HIGH RES DISPLAY
  The exact same detailed dot as M12S enables so clear display.
  Three sort of telemetry information can be shown simultaneously because of grey scale display.
• BEST PLACE FOR STEERING / THROTTLE
  Steering/Throttle is arranged inside most useful position for operation.
  Drop Down can be used as standard postion.
• THREE AAA BATTERIES
  Three AAA batteries permits to be not only compact and light.
• USB CHARGE
  When used in combination with optional Li-Po 1 cellular battery pack, weight become lighter and it will be changed from USB input.

Features:

• SYSTEM: 2.4GHz FH4T/FH3
• 4CH
• Movable Carrying Handle
• Quick Setup Wizard
• Safety Link
• Racing Mode
• Customized Menu
• Micro SD card-compatible
• Telemetry Switch
• Clock
• Circumstance Temperature Display
• CSV Output for LOG data
• CODE 10-compatible (Naming support)
• Simultaneous three telemetry data display
• Three AAA Batteries
• Li-Po 1 cell-compatible (USB change support)

• Large full dot LCD monitor
• Wight LED right back light
• Full adjustable trigger
• Telemetry function
• Built-in antenna
• Multi Menu Selector
• ST/TH Tension Adjuster
• Dual Rate
• End aim Adjuster
• Anti-lock Brake
• Servo Speed
• Offset
• Trim/Sub trim
• Servo Reverse
• Curve (Exponential /Adjustable Rate Control)
• AUX1 (motion type for 3CH. it's the same as MT-4S function.)
• AUX2 (motion kind for 4CH. it's the same as MT-4S function.)
• Fail safe (power/ battery) ?Timer (lap/ interval/ down)
• Lap
• Logger
• 20 model memory (whenever used in combination with sdcard, 250 models can be obtained.)
• Model Title (12 letters)
• Model (Select/ Clear/ Copy)
• Direct Model Select
• Trim Type (Center/ parallel)
• Throttle Type (70:30 / 50:50)
• RF MODE Setting (FH4T/FH3)
• reaction Mode Setting (NOR/SHR/SSR)*
• Key Assign(SW/TRIM/DIAL/LEVER)
• AUX TYPE SETTING
• CODE AUX (w/ Naming function)
• STEP AUX (step one - 100)
• POINT AUX (2 - 6 point)
• 4WS MIXING (Front/Rear/Normal(coordinate period)/Reverse(opposite stage))
• MOA MIXING (FWD/4WD/RWD)
• AUX MIXING (ST MIXING/ TH MIXING)
• Buzzer(scale/volume)
• Transmitter Battery Alarm
• LCD Contrast
• Volume Adjustment
• Mechanical Rudder Angle
• Small Grip Pad

Compatible Receivers:

• Telemetry-compatible(RX-482, RX-472, RX-47T, RX-462, RX-461)
• Non-Telemetry-compatible(RX-481, RX-481WP, RX-471 Dual ID, RX-471W, RX-471, RX-451R, RX-451, RX-381, RX-380)


Cautions and supplemental explanation:

[SSL(SANWA Synchronized Link) Sysytem]
SANWA NEW SSL SYSTEM

• Whenever used in combination with compatible RX-472, RX-482, Super Vortex Series, SV-Plus Series, the setting of ESC an such like. by Transmitter can be obtained through SSL functions while driving.
• Since the setting can be achieved without end of automobile, the step-by-step adjustment in accordance with Race conditions
  is available without interruption of periods additionally the change of machine conditions.


[Response of Telemetry System]

• It is stated that telemetry system reduce response speed. But SANWA Original Data Processing and Algorithm Design makes Telemetry feasible without reaction speed reduction.
  Our Exceptional Telemetry System doesn't have reaction speed decrease.
• With our telemetry system, the precious race information can help the following battle setting and driving.


[Response Mode]

• Please do not use Analog Servo for SHR mode or SSR mode.
  If analog servo can be used for SHR mode or SSR mode, the servo will undoubtedly be broken and can maybe not work.
  Digital servo (SRG show, Digital ERG show, SDX series) may be used both for NOR mode and SHR mode.
• SSR mode may be used just by SRG show servo.
• In SHR or SSR mode, BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR don't work.
  Please use NOR mode the above ESC.
