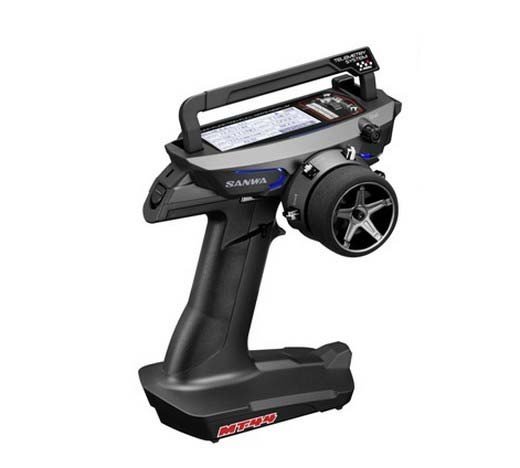

Sanwa MT-44 - 4-Channel 2.4G Transmitter with RX482 and RX472 Receiver  [SW-MT-44-78B]

Beyond Middle Class Radios, The MT-44 Transmitter

• HIGH RES DISPLAY
  The same detailed dot as M12S enables therefore clear display.
  Three form of telemetry information can be presented at the same time due to grey scale display.
• IDEAL PLACE FOR STEERING / THROTTLE
  Steering/Throttle is arranged in the most readily useful place for operation.
  Drop Down can be used as standard postion.
• THREE AAA BATTERIES
  Three AAA batteries permits to be not only compact and light.
• USB CHARGE
  When combined with optional Li-Po 1 cell battery, fat become lighter and it is changed from USB input.

Features:

• SYSTEM: 2.4GHz FH4T/FH3
• 4CH
• Movable Carrying Handle
• Quick Setup Wizard
• Protection Link
• Racing Mode
• Customized Menu
• Micro SD card-compatible
• Telemetry Change
• Clock
• Circumstance Temperature Display
• CSV Production for LOG data
• CODE 10-compatible (Naming help)
• Simultaneous three telemetry information display
• Three AAA Batteries
• Li-Po 1 cell-compatible (USB modification support)

• Large complete dot LCD monitor
• Wight LED back light
• Full adjustable trigger
• Telemetry function
• Built-in antenna
• Multi Menu Selector
• ST/TH Tension Adjuster
• Double Rate
• End Point Adjuster
• Anti-lock Brake
• Servo Speed
• Offset
• Trim/Sub trim
• Servo Reverse
• Curve (Exponential /Adjustable Rate Control)
• AUX1 (Movement kind for 3CH. it's the same as MT-4S function.)
• AUX2 (motion type for 4CH. it's the same as MT-4S function.)
• Fail safe (power/ battery) ?Timer (lap/ interval/ down)
• Lap
• Logger
• 20 model memory (whenever combined with SD card, 250 models can be acquired.)
• Model Name (12 letters)
• Model (Select/ Clear/ Copy)
• Direct Model Select
• Trim Type (Center/ parallel)
• Throttle Type (70:30 / 50:50)
• RF MODE Setting (FH4T/FH3)
• Response Mode Setting (NOR/SHR/SSR)*
• Key Assign(SW/TRIM/DIAL/LEVER)
• AUX TYPE ESTABLISHING
• CODE AUX (w/ Naming function)
• STEP AUX (1 - 100)
• POINT AUX (2 - 6 point)
• 4WS BLENDING (Front/Rear/Normal(coordinate stage)/Reverse(opposite period))
• MOA MIXING (FWD/4WD/RWD)
• AUX MIXING (ST MIXING/ TH MIXING)
• Buzzer(scale/volume)
• Transmitter Battery Alarm
• LCD Contrast
• Amount Modification
• Mechanical Rudder Angle
• Small Grip Pad

Appropriate Receivers:

• Telemetry-compatible(RX-482, RX-472, RX-47T, RX-462, RX-461)
• Non-Telemetry-compatible(RX-481, RX-481WP, RX-471 Dual ID, RX-471W, RX-471, RX-451R, RX-451, RX-381, RX-380)


Cautions and supplemental description:

[SSL(SANWA Synchronized Link) Sysytem]
SANWA NEW SSL SYSTEM

• Whenever used with suitable RX-472, RX-482, Super Vortex Series, SV-Plus Series, the setting of ESC an such like. by Transmitter can be obtained through SSL functions while driving.
• because the environment can be done without the stop of car, the detail by detail adjustment in accordance with Race conditions
  can be obtained without disruption of Intervals together with modification of machine conditions.


[Response of Telemetry System]

• It is often said that telemetry system reduce reaction speed. But SANWA Original information Processing and Algorithm Design makes Telemetry feasible without response speed reduction.
  Our Excellent Telemetry System doesn't have response speed decrease.
• With this telemetry system, the valuable competition data may help another battle establishing and driving.


[Reaction Mode]

• Please don't use Analog Servo for SHR mode or SSR mode.
  If analog servo is used for SHR mode or SSR mode, the servo is supposed to be broken and can not work.
  Digital servo (SRG series, Digital ERG show, SDX series) can be utilized both for NOR mode and SHR mode.
• SSR mode may be used just by SRG show servo.
• In SHR or SSR mode, BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR cannot work.
  Please utilize NOR mode the above ESC.
