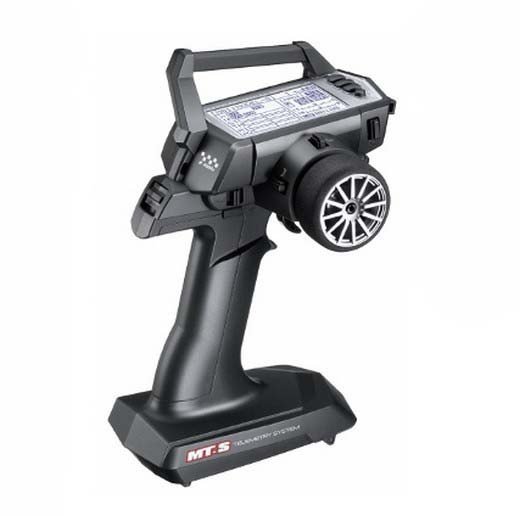

Sanwa MT-S - 4CH 2.4Ghz with RX-482 x 2, FH4/FH3 SSR SSL 4cell  [SW-MT-S]

QUALITIES:

• SETUP WIZARD FOR SIMPLE SETTING,CAR TYPE(8 MODEL KINDS) COULD BE SET DEFINITELY.
• SSL (SANWA SYNCHRONIZED LINK)-COMPATIBLE,The compatible equipment is set by transmitter through CODE AUX functions.
  *Compatible gear: SUPER VORTEX SERIES,SV-PLUS SERIES, SGS-01C (Gain modification)
• LIGHT BODY (366g),EASY PROCEDURE FOR YOUNG ONES
• MIDDLE-INCOME GROUP (ENTRY LEVEL)

SYSTEM QUALITIES:

• WHITE LED BACK LIGHT
• BIG FULL-DOT LCD MONITOR(128x64dot)
• ST TH TENSION ADJUSTMENT
• ADJUSTABLE TRIGGER
• INTEGRAL ANTENNA
• TELEMETRY FUNCTION
• DUAL PRICE
• SERVO SPEED
• SERVO REVERSE
• TRIM/SUB TRIM
• CURVE(EXPONENTIAL / ADJUSTABLE RATE CONTROL)
• FAIL SAFE(RADIO WAVES / BATTERY)
• EPA
• OFFSET
• BIND
• BASE
• FUNCTION
• TH TYPE(70:30/50:50)
• ANTI-LOCK BRAKING SYSTEM
• MODEL NAME(10 LETTERS)
• MODEL MEMORY(20 MODELS)
• MODEL(SELECT/CLEAR/COPY)
• TIMER(LAP / INTERVAL / DOWN)
• LOGGER
• ALERT SETTING
• TELEMETRY SETTING
• KEY ASSIGN(SW / TRIM)
• BUZZER(SCALE / VOLUME CHANGEABLE)
• TRANSMITTER BATTERY ALARM?LCD CONTRAST
• AMOUNT ADJUSTMENT
• SETUP WIZARD?RF MODE SETTING(FH4/FH3)
• RESPONSE MODE (NOR/SHR/SSR)
• DIRECT MODEL SELECT
• AUX1(SELECT THE OPERATION VARIETY OF 3CH)
• AUX2(SELECT THE PROCESS TYPE OF 4CH)
• AUX TYPE SETTING
• CODE AUX (APPROPRIATE FOR SUPER VORTEX ZERO & TYPE-D MENU)
• ACTION AUX (STEP 1 to 100)
• POINT AUX (2 to 6 POINT)
• 4WS BLENDING (FRONT/REAR/NORMAL/REVERSE
• MOA MIXING(FRONT-WHEEL-DRIVE/4WD/REAR-WHEEL-DRIVE)
• *DRIVE RATE IS VARIABLE.
• AUX MIXING (ST MIXING, TH BLENDING)
• 4 CELL DRY BATTERY
• COMPATIBLE RECEIVER; RX-380, RX-381, RX-451, RX-451R, RX-461, RX-462, RX-471,
  RX-472, RX-481, RX-482

CAUTIONS AND SUPPLEMENTAL EXPLANATION

[SSL(SANWA SYNCHRONIZES LINK) SYSTEM]
SANWA NEW SSL SYSTEM

• When combined with suitable RX-472, RX-482, Super Vortex Series, SV-Plus Series, the environment of ESC etc. by Transmitter is available through SSL functions while driving.
• considering that the environment can be achieved minus the end of vehicle, the detailed modification in accordance with Race conditions can be acquired without disruption of Intervals therefore the change of device conditions.

[RESPONSE OF TELEMETRY SYSTEM]

• it is said that telemetry system reduce response rate. But SANWA Original Data Processing and Algorithm Design makes Telemetry feasible without response speed reduction.
  Our exceptional Telemetry System has no response speed decrease.
• With our telemetry system, the valuable competition information may help the next competition establishing and driving.

[RESPONSE MODE]

• Please don't use Analog Servo for SHR mode or SSR mode.
• If analog servo can be used for SHR mode or SSR mode, the servo will likely to be broken and will not work.
• Digital servo (SRG show, Digital ERG show, SDX show) can be used both for NOR mode and SHR mode.
• SSR mode can be used just by SRG series servo.
• In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000, F3300, SBL-01, SBL-02 and SBL-03CR usually do not work.
• Please utilize NOR mode for the above ESC. SV-08, HV-10, HV-12, F2500 could work by NOR/SHR MODE.
