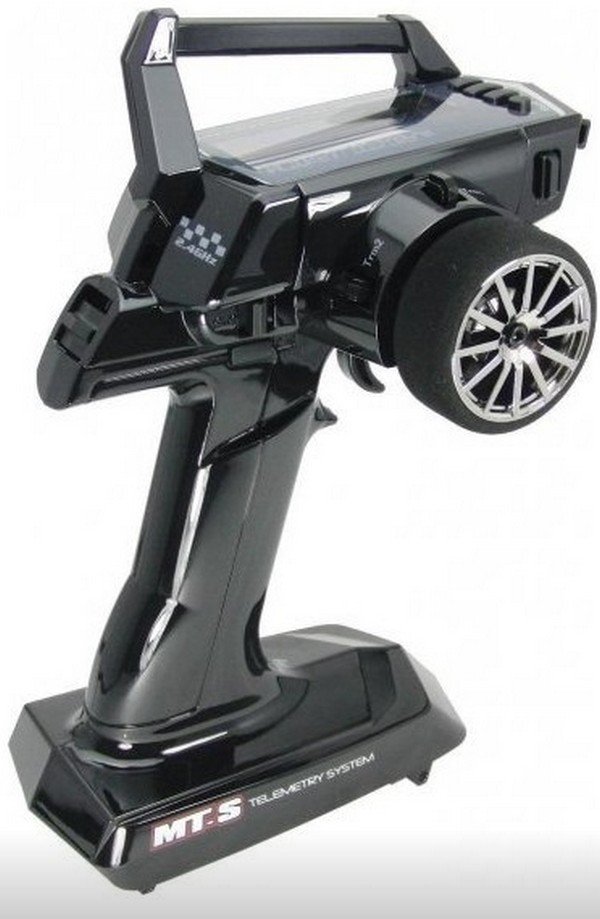

Sanwa MT-S Piano Black Limited Edition With Receiver RX-482 and RX-481WP   [SW-MTS-4821BK]

QUALITIES:

• SETUP WIZARD FOR SIMPLE SETTING,CAR TYPE(8 MODEL KINDS) MAY BE SET DEFINITELY.
• SSL (SANWA SYNCHRONIZED LINK)-COMPATIBLE,The appropriate equipment could be set by transmitter through CODE AUX functions.
  *Compatible equipment: SUPER VORTEX SERIES,SV-PLUS SERIES, SGS-01C (Gain Adjustment)
• LIGHT BODY (366g),EASY PROCEDURE FOR KIDS
• MIDDLE CLASS (BASIC)

SYSTEM FEATURES:

• WHITE LED BACK LIGHT
• BIG FULL-DOT LCD MONITOR(128x64dot)
• ST TH TENSION ADJUSTMENT
• ADJUSTABLE TRIGGER
• INTEGRATED ANTENNA
• TELEMETRY FUNCTION
• DUAL PRICE
• SERVO SPEED
• SERVO REVERSE
• TRIM/SUB TRIM
• CURVE(EXPONENTIAL / ADJUSTABLE PRICE CONTROL)
• FAIL SAFE(RADIO WAVES / BATTERY PACK)
• EPA
• OFFSET
• BIND
• BASE
• FUNCTION
• TH TYPE(70:30/50:50)
• ANTI-LOCK BRAKING SYSTEM
• MODEL NAME(10 LETTERS)
• MODEL MEMORY(20 MODELS)
• MODEL(SELECT/CLEAR/COPY)
• TIMER(LAP / INTERVAL / DOWN)
• LOGGER
• ALERT ESTABLISHING
• TELEMETRY SETTING
• KEY ASSIGN(SW / TRIM)
• BUZZER(SCALE / AMOUNT CHANGEABLE)
• TRANSMITTER BATTERY ALARM?LCD CONTRAST
• AMOUNT ADJUSTMENT
• SETUP WIZARD?RF MODE SETTING(FH4/FH3)
• REACTION MODE (NOR/SHR/SSR)
• DIRECT MODEL SELECT
• AUX1(SELECT THE OPERATION FORM OF 3CH)
• AUX2(SELECT THE OPERATION KIND OF 4CH)
• AUX TYPE SETTING
• CODE AUX (APPROPRIATE FOR SUPER VORTEX ZERO & TYPE-D MENU)
• ACTION AUX (STEP 1 to 100)
• POINT AUX (2 to 6 POINT)
• 4WS BLENDING (FRONT/REAR/NORMAL/REVERSE
• MOA MIXING(FRONT-WHEEL-DRIVE/4WD/REAR-WHEEL-DRIVE)
• *DRIVE RATE IS VARIABLE.
• AUX MIXING (ST MIXING, TH BLENDING)
• 4 CELL DRY BATTERY
• COMPATIBLE RECEIVER; RX-380, RX-381, RX-451, RX-451R, RX-461, RX-462, RX-471,
  RX-472, RX-481, RX-482

CAUTIONS AND SUPPLEMENTAL DESCRIPTION

[SSL(SANWA SYNCHRONIZES LINK) SYSTEM]
SANWA brand new SSL SYSTEM

• When combined with suitable RX-472, RX-482, Super Vortex Series, SV-Plus Series, the environment of ESC an such like. by Transmitter can be acquired through SSL functions while driving.
• considering that the setting can be carried out without stop of car, the detailed adjustment according to Race conditions is available without disruption of Intervals therefore the change of device conditions.

[RESPONSE OF TELEMETRY SYSTEM]

• it's stated that telemetry system reduce reaction rate. But SANWA Original Data Processing and Algorithm Design makes Telemetry possible without reaction speed reduction.
  Our exceptional Telemetry System has no reaction speed reduction.
• with this telemetry system, the precious competition data may help another race establishing and driving.

[RESPONSE MODE]

• Please do not use Analog Servo for SHR mode or SSR mode.
• If analog servo can be used for SHR mode or SSR mode, the servo will soon be broken and will not work.
• Digital servo (SRG show, Digital ERG series, SDX series) can be utilized both for NOR mode and SHR mode.
• SSR mode can be used just by SRG series servo.
• In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000, F3300, SBL-01, SBL-02 and SBL-03CR never work.
• Please utilize NOR mode the above ESC. SV-08, HV-10, HV-12, F2500 could work by NOR/SHR MODE.

RX-482

• 2.4GHz FHSS4 Spread range system 4ch
• SSL help (ESC: Super Vortex Series etc.)
• Built-in Antenna
• Sanwa Super Response (SSR) support
• Frequency: 2.4GHz FHSS4
• Channel: 4ch
• Nominal Input Voltage: 3.7V~7.4V
• Measurements: 18.2x24.4x27.1mm
• Body weight: 7.1g
• Compatible radio :M12, Exzes Z, MT-4S, MT-4(No SSL support)
