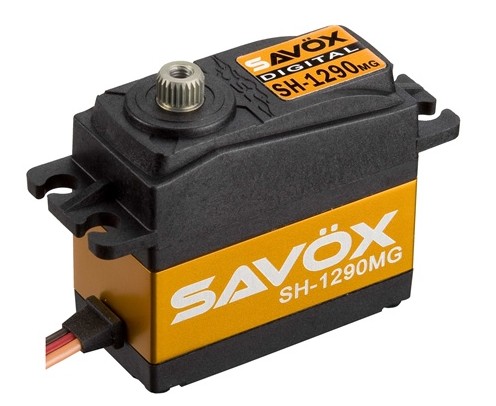

Savox SH-1290MG Super Speed Metal Gear Digital Servo  [SH-1290MG]

•
  This is actually the Savox - SH-1290MG Super Speed Metal Gear Digital Servo

Features:

• 4096 super high definition
• Water-Resistant with 4 silicone seals
• Coreless engine brings production performance to brand new levels - smoother, faster and more efficient operation.
• The metal case design not just appears awesome and permits cooler and smoother running temps.
• Our servos are totally green - from materials to production, these servos are green.
• Ideal as a rudder servo on 500, 600, and 700 course helis.

Technical Specs:

• Dimensions(mm): 40.3x20.2x37.2
• Weight(g): 56.4
• Speed(@4.8V sec/60): .06
• Torque(@4.8V oz-in): 55.5
• Speed(@6.0V sec/60): .05
• Torque(@6.0V oz-in): 69.4
• Gear: Metal
• Bearing: 2BB
• Case: Aluminum
• Operating present (at no load): 200 mA @ 4.8V
• Running current (at no load): 250 mA @ 6.0V
• Stall present (at locked): 2.4 A @ 4.8V
• Stall present (at locked): 3.0 A @ 6.0V
• Idle current (at stopped): 5 mA @ 4.8V
• Idle current (at stopped): 5 mA @ 6.0V
• Connector wire measure: 22 AWG
• Connector wire size: 300+-5 mm
• Horn gear spline: 25T
• Control system: Pulse width modification
• Amplifier type: Digital Controller
• Running Travel: 100 level (when1000->2000 usec)
• Basic position: 1520 usec
• Rotating direction: Counterclockwise (when1500->2000 usec)
• Pulse width range: 800->2200 usec
• Optimum travel: Approx 154 level (when800->2200 usec)
