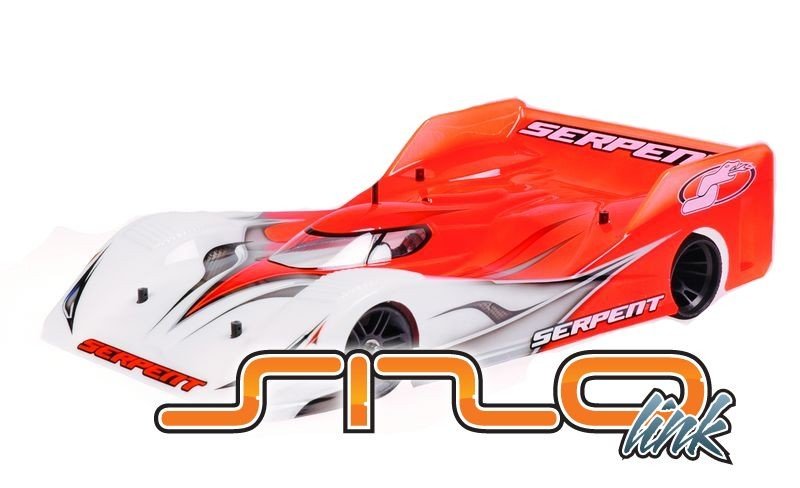

Serpent 1/12 scale pancar S120 Link. Link form of the successful S120 1/12 scale pan-car (SP-400001). High end 1/12 scale pan framework, with well machined carbon fibre and aluminium parts.
Requirements:
- course: 1/12th scale
- Purpose: Competition pan automobile
- Chassis: 2.5mm carbon fiber, 4-cell, CNC machined
- back axle: Graphite shaft with ball differential
- Drive system: 2wd direct drive to rear axle
- Shock absorbers: main oil filled shock absorber and lateral monoshock
- Wheel base: 195.5mm +/- 0.5mm
- Track-width front side: 163mm +/- 3mm
- Track-width backside: 170.6mm
Features:
Front end
The leading end associated with automobile features 11 various corrections to acquire the most from your own automobile, which are really easy to adjust and determine. Fixed lower suspension arms are by themselves damped by the main strut which uses rubber o-rings to use up the flex of this type, as the grey anodised aluminium front top wishbone mounts are available in different caster angles, the vehicle being given 6 degree variations as standard. Because of the steering block king pins springtime packed, the cornering forces are channelled through upper wishbone, which enable the vehicle to corner at high rates.
Monoshock
Another unique feature of the S120 Link is its laterally mounted floating monoshock which dampens the flex between the framework and engine pod. Mounted making use of ball bones through the the top of rear engine pod, both ends associated with the surprise shaft are attached to the the surface of the back carbon human anatomy mount dish regarding the chassis, and thanks to its design perhaps the smallest of movements involving the front side and rear associated with car is easily consumed. This technique plays a large component in how the automobile becomes a large part which is often modified with the use of various natural oils and shock pistons.
core area
The springloaded side-bars, the links, are constructed with composite nylon and control the roll of the chassis, alongside the lateral damper and main central surprise. Precision made springs and pivot balls.
The central part is a mix of elements to regulate the movements of the trunk end perfectly
- a central main surprise, in line with the famous Serpent RCC technology; the shocktower enables various perspectives.
- the laid straight down mono-shock, same as used in the S120T before, with through kind shock-rod, and exemplary dampening charateristics
- 2 spring packed shaped part pubs
These elements interact to generate the perfect managing (roll, bump and positioning) under all grip-conditions.
Body post
For firmly mounting your body shell to your S120 Link, the car has strong plastic body articles front and back. All 4 posts are given orange anodised adjustable collars to precisely adjust the body's height therefore the articles are supplied additional long to permit the user to cut them for their own preferred size. Leading human body articles have also been designed to assist protect leading associated with the carbon chassis from splitting in the eventuality of a heavy front impact.
Battery mounts
On the S120 Link, the cells could be mounted in 2 various roles by changing the composite battery pack insert mounting place. Attaching it to the front or backside associated with slot means the cells can go by 4mm, ideal for adjusting the vehicles weight distribution.The S120 Link also incorporates 4 pcs of Lipo inserts manufactured in nylon, which is often glued towards Lipo pack and fit the battery-slots completely and so have them set up.
Servo saver
The S120 Link comes given a top quality miniature servo saver, which by using orange anodised shims, has adjustable Ackerman. The kit contains 3 alu servo posts to pick from, which make it possible for perfectly centered mounting of any popular brand name servo.
Rear axle mounts
The lightweight graphite rear axle is installed on bearings that sit within eccentric composite inserts that enables the user to ability to efficiently change the trunk trip height associated with automobile by changing between inserts. The kit comes provided with all 9 inserts which vary between 0 and 4mm, each differing by 0.5mm and all sorts of are reversible for a level wider array of adjustment.
back ball differential
The S120 Link comes provided with a durable and high performance ball differential. Effortlessly adjusted by a synthetic nut, available through right back wheel, the diff makes use of quality metal balls and plates and is supplied with both suitable silicone and graphite grease for use during set up and maintenance.The re-designed rear diff features improved hardened D-plates and carbon shaft construction for super smooth diff action.
Central shock absorber
To aid back traction under acceleration and to soak up bumps, the S120 Link activities a centrally installed shock absorber. Provided with a soft springtime, the pre load that can be adjusted, the front mount with this shock absorber can be used for adjusting a corner down stop and range of motion between your framework and engine pod.The main shock is mounted on a shock-tower with a number of jobs to choose from.
Rear engine pod, chassis
The strong basis is formed by the 2.5mm dense carbon fibre framework plate with pouches to permit 4-cell packs or 1S Lipo pack, with supports enabling a forward or backward battery pack place, and enough space for all your valuable electronics.
The newly created motorpod is a beautifull mixture of good quality machined alu brackets and high quality carbon fibre components, bolted together to create an ultra rigid back pod. The newest motor-bracket allows the brushless motor become mounted in optimal place for vehicle stability and offers good heat dissipation besides .
