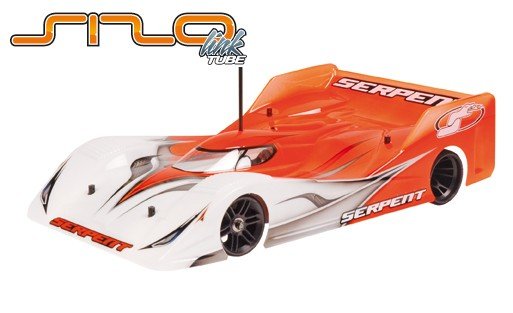

Serpent 1/12 scale pancar S120 Link-Tube version powerful 1/12 scale pan chassis, with nicely machined carbon fiber and aluminium components. Exceptional fully adjustable front side end creates loads of steering. Spring loaded Link system, in combination with diagonal placed primary shock and tube-system, controls the roll associated with car. Well balanced Lipo framework offers big selection of set-up features and options to dial the vehicle in perfect for any track.
Specs:
- Class: 1/12th scale
- Function: Competition pan vehicle
- Chassis: 2.5mm carbon fiber, Lipo
- back axle: Aluminium shaft with ball differential
- Drive system: 2wd direct drive to rear axle
- Shock absorbers: main oil filled shock absorber and pipes
- Wheel base: 195.5mm +/- 0.5mm
- Track-width front: 163mm +/- 3mm
- Track-width backside: 170.6mm
Features:
Rear engine pod, framework
The strong basis is formed by the 2.5mm dense carbon fibre chassis dish designed such way your Lipo is installed in lateral directiom, and may be installed either left or right part, and enough space for all your valuable electronics. The alu / carbon motorpod is a beautifull combination of quality machined alu brackets and high quality carbon fibre parts, bolted together to create an ultra stiff back pod. The new motor-bracket enables the brushless engine become mounted in the optimal position for vehicle balance and will be offering good heat dissipation too .
Central surprise absorber
To aid back traction under acceleration and to take in bumps, the S120 LT sports a centrally installed surprise absorber. Provided with a soft spring, the pre load which is modified, the leading mount of this surprise absorber is used for adjusting a corner down end and range of motion between your chassis and motor pod.The main surprise is installed on a shock-tower with a number of jobs to select from.
backside ball differential
The S120 LT comes given a durable and powerful ball differential. Easily adjusted by a synthetic nut, available through the right rear wheel, the diff makes use of quality steel balls and plates and it is given both suitable silicone and graphite grease to be used during installation and upkeep.The back diff features hardened D-plates and light alu shaft assembly for super smooth diff action.
Rear axle mounts
The lightweight graphite rear axle is mounted on bearings that sit within eccentric composite inserts enabling the user to ability to quickly alter the trunk ride height associated with the vehicle by changing between inserts. The kit comes provided with all 9 inserts which range between 0 and 4mm, each differing by 0.5mm and all sorts of are reversible for a level wider array of adjustment.
Servo saver
The S120 Link comes given a top quality miniature servo saver, which by using orange anodised shims, has adjustable Ackerman. The kit contains 2 alu servo articles, which allow a perfectly centered mounting of any popular brand servo.The small foam bumper can also be included.
Body post
For securely mounting the human body shell to your S120 LT, the vehicle has strong plastic body articles front and back. All 4 articles are provided with orange anodised adjustable collars to correctly adjust the body's height therefore the articles are supplied extra very long to allow the user to cut them for their own preferred size. The leading human anatomy posts are also designed to help protect the leading associated with carbon framework from splitting in the event of a heavy front impact.
core area
The springloaded side-bars, backlinks, are made of composite nylon and control the roll of this framework, together with the pipes and primary central surprise. Precision made springs and pivot balls.
The central area is a variety of elements to manage the motions of the rear end perfectly
- a central primary shock, in line with the famous Serpent RCCX technology; the shocktower allows different perspectives.
- the anodised alu pipes on both edges
- 2 springtime loaded shaped side pubs
These elements communicate to create the perfect managing (roll, bump and positioning) under all grip-conditions.
Tube system
The S120-LT uses pipes to controll the roll associated with automobile. This method plays a big component in how the vehicle becomes a large part which may be adjusted through the utilization of various natural oils, 15.000 for normal hold and 20.000 for high hold songs.
Front end
The front end associated with automobile features 11 various adjustments to help you get the many from your own automobile, that are really easy to adjust and determine. Fixed lower suspension system hands are themselves damped by the main strut which makes use of plastic o-rings to occupy the flex in this area, even though the grey anodised aluminium front upper wishbone mounts can be purchased in different caster angles, the vehicle being given 6 level versions as standard. Ride height spacers can be found too in 0.5mm and 1mm. With the steering block king pins spring loaded, the cornering forces are channelled through the top wishbone, which enable the car to part at high rates.
