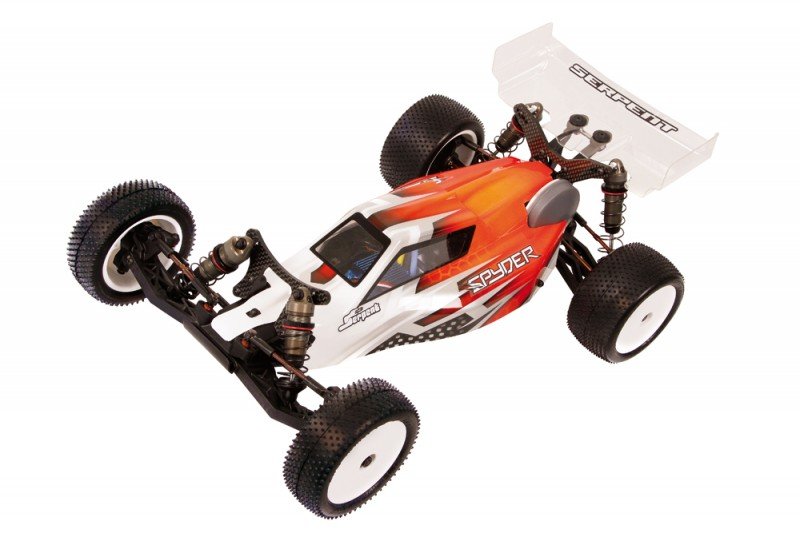

Spyder Buggy SRX-2 MM 2wd 1/10 Serpent MM MidMotor Spyder SRX-2 high end competition buggy.The mid-motor variation is purpose built sharing numerous parts along with its back engine sibling. The idea was to build two condition particular designs, aided by the greatest degree of performance feasible. Drivers per race can choose either variation, and can not have to help make any modifications on the spot. Front end on both kinds is exact same, but framework and all tail varies a great deal.
Specifications:
- Class: 1/10 buggy 2wd
- Degree: Competition
- Length: 385mm
- Width: differs with set-up
- Wheelbase: 281mm
- Gear Ratio: 2.43:1
- Weight: varies with gear utilized
Features:
- Powerful race geometry
- Mid motor design
- Original steeringblock design
- Big bore 12mm RCM kind shocks with double system
- Revolutionary shocktower design
- Highly Efficient Steering ackermann
- Adjustable back differential height
- 3 pad slipper clutch
- Narrow composite chassis design
- minimal, cab forward body
Chassis
Composite framework dish with a design allowing for an amazing weight balance, and optimal room the electronics, battery pack and servo. The leading Kick-up angle in the Chassis includes more clearance for race and invite for lots more nose landings. Carbon fibre front and back shock towers. The 4mm dense carbon fibre surprise towers have actually numerous shock angle jobs permitting clients to fine tune for varying track conditions.
Shock absorbers
Twin system 12mm big bore shocks with hard coated threaded systems, a distinctive cap design, a wonderfully sealing o-ring and spacer package. The Shocks are used in Bladder or Emulsion setups. The shock-set comes with some moulded pistons to pick from. A selection of 5 springs-sets can be obtained to fine-tune the suspension system settings. Shock Collars with internal o-rings are used on the threaded systems to set-ride height.
Front top bulkhead
Leading upper bulkhead is and supports top of the links and surprise tower in the perfect method. Leading part provides the substitute for mount a front wing and sway bar product
Front wishbones
Leading Wishbones are made from a brilliant strong composite product. The arms are angled to optimize the CG and pivot on 3mm captured pins internally and out. The arms have 2 mounting roles for surprise angle and are also ready to use an optional anti-roll club if needed.
Front and Back Track Rods
Spring metal front side and rear track rods are installed to durable composite captured ball bones. The track Rods have actually L/R threading for easy alterations.
Castor obstructs and settings
Caster block inserts come as 0, 2.5 and 5 level version that are included. The caster blocks have become compact and strong units made from a particular composite product.
Steering Block and Rear Upright
The steering blocks fit 5x10x4 mm bearings. A corner hub uprights utilize a bigger 5x14x4 external bearing and 10x15x4 mm inner for ultimate lasting performance. The steering obstructs and back uprights utilize among the better high strength materials currently available.
Upright Settings
A corner uprights permit you to adjust, the toe in from -2 to + 2 levels by usage of different inserts also included in the kit.
Steering system and Ackermann
The steering system has a reverse swinging pivot system that optimizes the efficiency through various different kinds of corners. You have 3 Ackerman choices to decide on from.
Wheel-axles and wheel hex.
The springtime steel wheel-axles used 12mm hex adapter to follow along with market criteria. Leading springs steel axle is fixed, even though the rear wheel-hex is a clamping aluminum variation.
Battery room mount and weight stability
The battery pack is mounted completely within the center type of the automobile. Its an exact complement saddle packages. In the event of making use of a Shorty-pack, it could be relocated to front side or back once again to play with weight balance. Bits of difficult foam are provided to accomplish therefore and secure the battery pack in place. The carbon fiber battery-top-brace has a secure quick release system with handy twist peanuts.
Differential
The limited slip ball differential is a brilliant lightweight, effective and durable device. Using 1.8th inch diff balls for ultimate durability. The structure and installation is typical key in this class, but the top quality components and well functioning makes it be noticed. The height of the diff may be changed with inserts.
Motor dish and motor guard
The motor dish is a machined aluminum; its then anodized and machined for weight reduction.
Anti-roll bars
Anti-roll pubs are fitted regarding the front side and back associated with the vehicle, but are optional. They may be utilized on high grip surfaces to further adjust the automobiles performance
Back Transmission case
The composite backside transmission situation is light and durable. It allows the client to adjust the differential height to each certain condition. It securely holds the motor dish, differential as well as supports a corner wing mount and back carbon fibre surprise tower.
Back driveshaft system, wheel-axles
The springtime steel drive shafts are thin and light, yet durable. The spring steel wheel-axles are 5mm, light and durable, led by the two various size of bearings, internal 10x14x4 mm and exterior 5x13x4 mm. The driveshaft pin is completely captured to prevent any failure. These bearings are without a doubt to face up the rigors of any track condition.
Rear suspension system brackets and toe in
The 3mm spring metal pivot pins take place in position by the suspension system bracket made from aluminum. Within the bracket you use inserts to set toe-in and roll center. You'll adjust the toe-in from 2 to 4 degrees and adjust the anti squat from 0 to 4 levels.
Back suspension hands
The Mid engine certain long and durable angled rear suspension hands are extremely tough devices to withstand the rigors associated with track and also the hard landings. The back supply provides 2 options for shock position and two mounting areas for the rear anti-roll bar if required.
Rear Chassis skid dish
The composite rear skid plate links toward chassis dish. This connection enables you to unclip the rear end in one piece, but assists in easing the total cost of maintenance. It's also produced from exceptionally high energy composite material.
Body shell and back wing
The light and low cab-forward design human anatomy, produced in top quality clear polycarbonate, has a good flowing line, steep front side windscreen for down force with indents into the area at the windscreen. The shark fin on the top associated with the cabin provides not only design but security. The smooth human anatomy lines boost the cars appearance and do this however you like
The polycarbonate rear wing uses raised cutes into the edges to improve wheel clearance.
Back wing owner
The composite rear wing owner is connected to a corner bulkhead and surprise tower. It is completely adjustable from 0,2,4,6 and 8 degrees. Its fixed into spot by a washers and screws.
Ballbearings
High speed sealed stainless steel ballbearings with aeroshell oil
Fastners
Intense metal , mostly allen screws, roundhead and countersunk. Minimized number of various allen heads to help make working on the vehicle easier.
Tires
Durable white nylon flat faced tires, created specifically to make use of the advancements in the front and rear suspension system geometry.
The kit comes filled with body and wheels, full color manual and exploded views, a blank and standard set-up sheet and Serpent decals.
