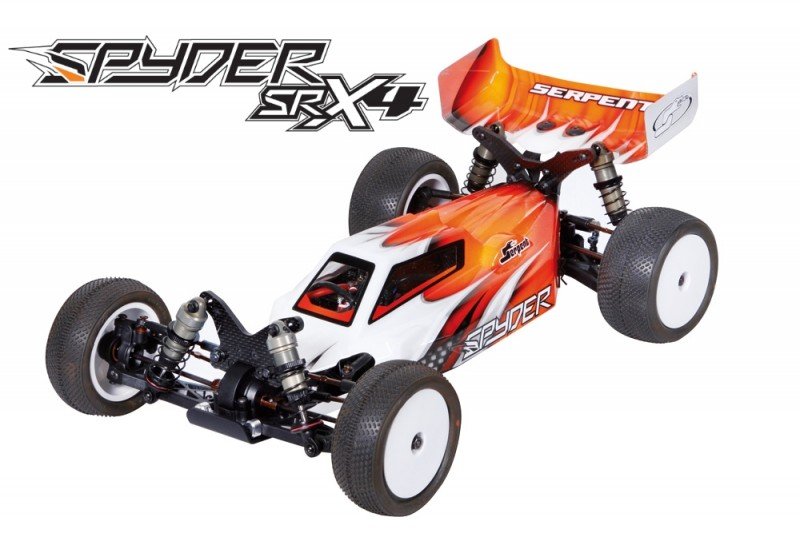

Spyder SRX4 Buggy 4wd 1/10 with alu framework top end Race degree 1/10 scale 4wd buggy. Prepared the racetracks in dirt, clay, lawn, astro or carpeting.
Requirements:
- Automobile: Spyder SRX-4
- Class: 1/10 buggy 4wd
- Level: Competition
- Included: battle framework, human anatomy, back wing, rims
- Maybe not included: tyres, tyre-inserts, electronics
Features:
- Aluminium 7075 T6 hardcoated 2.5mm framework with composite side plates
- Big bore 12mm difficult coated shock-absorbers
- Twin belt-driven drive system, with captured long front belt and open side gear
- Compact and light front side and rear gear differentials with composite front pulley and rear hard anodized aluminum diff gear
- Slipper clutch with friction pads and solid aluminum front locked clicker
- Durable spring metal drive shafts, wheel axles and drive cups
- Carbon fiber surprise towers front side and back
Central spline
The composite main spline when the front gear runs, produces a really strong framework stiffener, appropriate in the heart of the car. Additionally protects leading belt very well against debris and insures no belt can skip.
Battery and remains
The saddle pack battery (not included) is held in position by 2 simple to use composite battery-covers. Small machined aluminum nuts are included to keep them set up.
Electronics
The center of the vehicle enables plenty of area to mount typically the most popular speedo and receivers, as well as the transponder. The car additionally permits enough space allow nice routing of the cables. The shorty kind servo is attached to incorporated composite appears. Different spacers and horns are included to accommodate typically the most popular servo brands.
Drivetrain
The double belt system is extremely durable and light. The Kevlar reinforced front side belt is fully captured, so well protected against debris which increases life. The Kevlar reinforced part belt is available due to its location, and the closely fitted human anatomy will prevent debris from holding the belt. The belts run using precision machined pulleys. Leading belt tension can be changed with eccentric inserts.
Gear-diffs
The 2 compact oil-filled gear differentials front and rear. These super smooth devices are light and compact and incredibly durable. The differentials may also be very easy to build and therefore are low maintenance. The diff-inserts in the instances enable for your requirements run a minimal, mid or high place which alters grip.
The rear gear diff has a hard coated aluminum gear for durability.
Drive shafts
Serpent spring metal CVD drive shafts and wheel axles for durability. Also the lightened differential drive cups come in springtime steel.
Suspension pins
Made in durable and strong Serpent hardened steel. Captured devices with curved end which rotate in small ball-cups in the suspension brackets, therefore it?s super free.
Shocks
Serpent difficult coated shock systems and shock tops for super smooth operation and durability. 3.2mm shafts with brand new X-ring package and molded pistons. The shocks can be utilized either emulsion or membrane layer configuration. The shock springs have ground concludes, checked and matched for perfect equal operation. Ride height can be simple set with all the threaded collars which may have o-rings inside in which to stay position.
Steering
The fully ball raced angled double axis steering system with built-in servo saver function, offers a very nearly perfect Ackermann effect. Ackermann can be set with tiny plates which mount towards steering hands. 3 kinds included to play with. The angled system will avoid bump steer.
Chassis
The Aluminium 7075 T6 hardcoated 2.5mm chassis has got the right flex combined with the composite side-guards / chassis stiffeners and center spline. All holes are countersunk to have a totally flat bottom surface. Holes are centered and symmetrical for even flex.
The general design provides a 42/58 or 44/56 weight stability. Optional weights and brass components could be used to influence that.
Shock towers
Very durable 4mm thick carbon fibre front and back shock towers with 4 roles for surprise angle.
Shock stays
Extremely durable aluminum surprise stays coupled with a little bushing and nylon flanged peanuts.
Slipper clutch
This light slipper-clutch device, is a spring packed 3 pad variation, allow to manage the power circulation.
Front suspension system
Strong composite lower suspension system hands with mounting spots for the optional anti-roll club. Aluminum suspension brackets with inserts to alter set-up. Small but effective composite front side bumper to protect the leading end. The angled front side integrated kick up allows for smoother landings. The composite front side diff situation is a very strong affair to install the diffs, front surprise tower, main spline and framework too.
Steering blocks and c-hubs
The composite steering blocks and c-hubs provide a number of set-ups with inserts and shaped changeable Ackermann dishes which all 3 composite people are included.
Rear suspension
The rear end shares many components using the 2wd MM Spyder, that will be good in the event that you also run 2wd. Also here a really sturdy framework with all the diff-case as base to mount diffs, surprise tower, chassis and motor mount to. Strong composite lower hands. Suspension brackets in aluminum additionally here with inserts to try out with set-up. The beefy composite uprights offer 3 setup position in top and inserts in underneath.
Rear wing and wing owner
The strong clear polycarbonate wing is mounted toward nylon rear wing holder. The wing angle may be changed utilizing the included wing angle spacers: 0, 2, 4, 6, and 8 angle are included.
Anti-roll bar
Both the front and back allow mounting anti-roll pubs. As standard Serpent only supplies the trunk ball-raced anti-roll bar, as that is used additionally.
Motor mount
The engine is mounted firmly to the dense 3mm cnc machined 7075 T6 alu engine plate, which doubles as cooler. Machined slots allow motion of the engine to fine-tune the pinion/spur gap. The engine holder additionally holds the shafts associated with the part gear system, and permits mounting.
Body mounts
The strong composite human body mounts are often based in instance utilized. As alternative velcro is included with along side it regarding the chassis stiffeners.
Body
The human body is made in identical Avenger design whilst the 2wd buggy and shares its looks and compact form. Supreme quality clear polycarbonate is used. Your body comes with a masking sheet.
Back wing and wing owner
The strong clear polycarbonate wing is mounted to your nylon back wing holder. The wing angle could be changed using the included wing angle spacers: 0, 2, 4, 6, and 8 angle are included.
Rims
Durable Serpent designed wheel are contained in white color for front and rear (tires and inserts are not included).
Clicker system
Standard into the vehicle the ?solid clicker? can be used for permanent 4wd, which for high hold conditions is best to utilize. The optional clicker system requires few extra components just and will be utilized well in medium and reduced grip conditions, to let the front wheels to spin more free and produce more corner entry rate as required.
