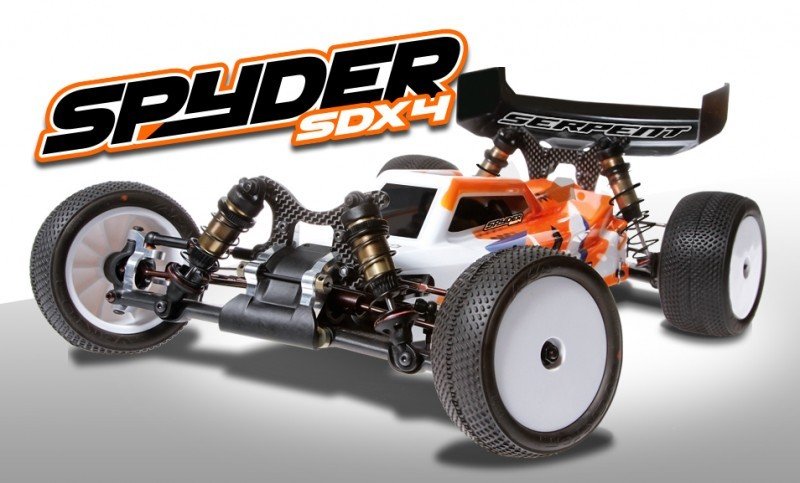

A brandnew High end Race level 1/10 scale shaftdrive 4wd buggy in a very clean, simple and open design. Built to perform on all surfaces with versatile layouts in which engine, battery and speedo could be installed in a number of areas. Definitely accessible for upkeep and set-up, with a small wide range of screws and screw types.
Requirements:
- Automobile: Spyder SDX-4
- Class: 1/10 buggy 4wd
- Level: Competition
- Wheelbase: 288mm
- Front width: 240mm
- Rear width: 240mm
- Body weight: is dependent upon electronics and tyres utilized
- Included: race chassis, human anatomy, back wing, rims
- Not included: tyres, tyre-inserts, electronics
Features:
- Lightweight clamp fitted gear-diffs coupled with a central slipper
- Front and rear compact and light gear diffs and main slipper
- 7075 T6 aluminium central diff/slipper owner and motormount
- 7075 T6 aluminium bulkheads front and rear
- 7075 T6 aluminium 2mm difficult coated framework and carbon stiffeners
- 7075 T6 aluminium c-hubs
- 7075 T6 aluminium uprights, equal L and R
- 7075 T6 aluminium hardcoated suspension brackets x 4
- Closed kind suspension hands with optional carbon top-inserts
- pivotball type internal hinges
- bigbore 1/10 shocks with hardcoated housings may be used emulsion or membrame design
- springtime metal universal drive and central shafts
- carbon shocktowers
- carbon framework stiffner
- carbon mid area top-plate
- carbon top steering bracket
- carbon steeringplate u-bracket
- Suprisingly low and sleek 4wd human anatomy and large durable back wing
- Top quality ball-bearings
Framework
The hardcoated lightweight 2mm 7075 T6 aluminium framework has got the right flex combined with the composite side-guards / framework stiffeners and center spline. All holes are countersunk to possess a fully flat bottom surface. Holes are centered and symmetrical even for flex.
Chassis stiffener
In back the SDX4 features a carbon fiber chassis stiffener which will be clamped between the rr fr suspension bracket together with bulkhead and extends to the center. The brace has 5 optional holes to find the stiffness by putting the small stiffener pole and screw and sometimes even including more poles/screws.
The device influences buttocks flex and it is set based on grip amounts and driving style.
Battery and remains
The SDX4 automobile takes a shorty in standard trim, but you can also mounts saddle packages as required. The battery pack is kept in position by a simple to operate composite battery-cover with a twistnut using one side.
Electronics
The center of the car permits a great amount of room to install the most popular speedo and receivers, as well as the transponder. The automobile also allows enough space allow good routing of one's cables. Privately associated with the slipper the SDx4 provides 2 special cable guiders.
Designs to pick from
- Default is shorty battery back right, engine backside left, speedo/RX front left , servo front right
- Motor more toward center ( and swap front and rear central driveshafts)
- Shorty left and engine right
- Motor front side left and esc backside left
- engine front side left and seat packages in back ( requires optional saddle pack battery brace-set)
Servo mount
The servo is mounted within the car with a stand produced from alu and carbon components, and is attached to the centerline inside vehicle, to keep even flex. Various spacers and horns are included to match typically the most popular servo brands. An optional part also allows the servo to be moved under the steering dish and driveshaft. Optimum choice of designs.
Drivetrain
The SDX4 utilizes lightweight springsteel univeral driveshafts front and rear and main universals too.
Gear-diffs and cases
The 2 lightweight oil-filled gear differentials front and back. These super smooth devices are light and compact and incredibly durable. The differentials may also be very very easy to build and tend to be really low maintenance.
Both exterior differential cases ( front side and rear) are clamped between your aluminium bulkheads and require no other fasteners anyway. Super simple and easy fast for upkeep.
Differential main gear and bevel gear.
The precision machined right cut differential main gear and bevel gear are produced in hardened springsteel for smooth operation.
Balljoints / trackrods
Brand new style and product balljoints for smooth suspensions and steering. The outer steering balljoints are angled to clear all rims/tyres . The trackrods and camberlinks are formulated in thin but durable springsteel with L/R threading for easy adjustment.
Shocks
Serpent hard coated shock bodies and composite shock tops for super smooth procedure and durability. 3.2mm shafts with brand new pre-oiled X-ring package and molded pistons. The shocks can be used either emulsion or membrane setup. The surprise springs have grounded ends, examined and matched for perfect equal operation. Ride height is simple set because of the threaded collars which may have o-rings inside in which to stay position.
Shock towers
Really durable 4mm dense carbon fibre front side and rear surprise towers with 3 positions for shock angle. For roll center adjustment the leading bracket features 6 holes to chose camberlink jobs. 3 internal and 3 exterior. The rear you have 8, 4 internal and 4 outer.
Shock remains
Very durable aluminum shock stays coupled with a little bushing and lightweight composite flanged nuts.
Slipper clutch
This light slipper-clutch product, is a spring packed 3 pad version, allows to control the ability circulation.
Front suspension system
Strong composite lower suspension hands with mounting spots the pivotball triggered anti-roll club. The arms are a shut kind design for aero impact, rigidity and clean appearance. On the top part optional carbon inserts could be applied just in case harder hands are expected for management. Composite insertplates are standard. The leading hands have actually 2 shockangle roles.
Steering obstructs and c-hubs
The lightweight composite steeringblocks are combined with aluminium 7075 T6 c-hubs. The c-hubs has 2 roles for rollcenter, and may be further finetuned by utilizing more or less shims. The c-hubs are 5 level, other optional people are 0 and 3 degree.
Steering
The completely ball raced angled double axis steering system with built-in servo saver function, offers a nearly perfect Ackermann effect. Ackermann are set with tiny plates which mount to your steering hands together with black colored cotaed aluminium steeringbrace has 2 holes to pick from. The servosaver has a pre-load nut to easily set the desired stress.
The steeringsystem is mounted on a carbon fibre u-bracket that also connects the front left and right sides and functions stiffener.
Rear suspension system
Strong composite reduced suspension arms with mounting spots for the pivotball triggered anti-roll club. The hands are a shut kind design for aero effect, rigidity and clean appearance. On the top side optional carbon inserts is used just in case harder hands are needed for maneuvering. Composite insertplates are standard.
The rear hands have actually 2 shock mounting roles on each part front side and backside. The front side and rear shockmounting positions vary while the hands can be utilized on both sides of vehicle, and that means you have actually 4 shock angle positions to decide on type.
The trunk arms allow to mount the shocks also inside back of vehicle
Suspension arms pivot balls
As opposed to internal pivot pins the SDX4 utilizes small pivotballs which thread inside the arm. The suspension system brackets are machined to adapt the pivotballs and produce a low friction, no binding suspension. By switching the pivotballs in or out your can set the perfect play between your front and back bracket.
Suspension brackets
Tough coated aluminum suspension system brackets fr fr and fr rr. Small but effective composite front bumper to guard the front end. The angled front side integrated kick up permits smoother landings.
The trunk rear suspension bracket can be utilized standard with o-degree or upside down as 3-degree anti-squat.
Bulkheads
The strong front side diff situation construction considering 2 durable 7075 T6 bulkheads is a really strong affair to install the diff-housings, front shock tower and chassis too. Its also features the holders the ballraced anti-rollbarmounts.
Anti-roll club
Both the front side and back hands and bulkheads enable mounting the ball-raced anti-roll bars. The cable kind anti-roll bars are lasered for easy indentification. The wire connect with the arms utilizing the proven friction free supersmooth pivotball system. Its very easy to get into and alter the anti-roll bars as required.
Engine mount
The engine is mounted securely towards thick 3mm cnc machined 7075 T6 alu motor plate. The motor is mounted on sliderplate, which is then easily slotted in place.
Center drive holders
The slipper clutch product is hold set up by the motormount bracket and a H shaped lightened 7075 T6 aluminium holder topped by a carbon connector plate that also holds the cable guiders in place.
The slipper may also be replaced by a geardiff inside center. Its supereasy to get into the slipper or main geardiff.
Uprights
The lightened 7075 T6 aluminium uprights are same left and right and feature 3 camberlink jobs.
Wheelhex
Leading and back wheel hex are 12mm industry standard size. The hexes are clamp kind and anodised to last. Flanged wheelnuts are included to keep the tires in position.
Body mounts
The strong composite human anatomy mounts are often situated in instance used. As alternative velcro can be added to the side of this chassis stiffeners/side bars.
Body
High-quality clear polycarbonate can be used the Spyder SRX4 buggybody . The well shaped human anatomy has flat edges and roof for additional downforce and great management. It will leave enough room for electronics and cooling finds as required. The human body closely follows the chassis form, therefore less debris can enter the car. The human body comes with a white precut masking sheet.
back wing and wing holder
The strong clear polycarbonate wing is installed on nylon back wing holder.
Rims
Durable Serpent created wheel are contained in white color for front and rear (tires and inserts are not included). Back wheels are just like SRX2 and SRX4, leading people have actually a new offset and are usually new. Compliant towards the latest IFMAR guidelines.
